Mounting The Tail Wheel - Seagull Models SPARROW HAWK 1.6-2.0 Assembly Manual

www.seagullmodels.com

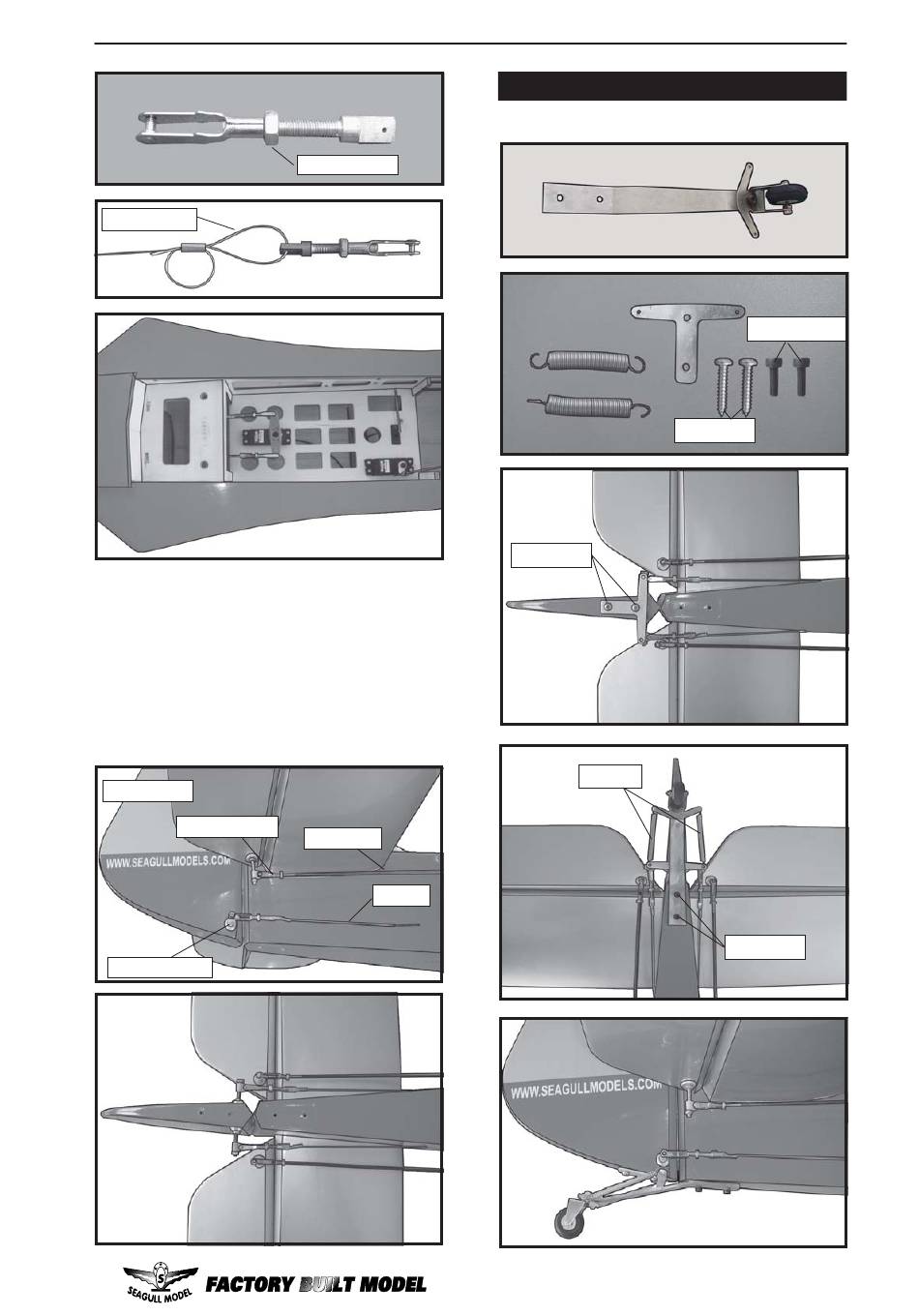

MOUNTING THE TAIL WHEEL.

See picture below.
M3 lock nut.
Cable wire.
M3 x10 mm.
3x25mm.
3x25mm.
With the radio on, check the operation of the
rudder. Adjust the cables so when the rudder
servo is centered, the rudder is centered as
well. There will be tension on the cables.
Adjustments can be made at the rudder control
horn and at the servo arm.Once adjustments
are made, secure the servo arm to the rudder
arm servo using the screw that came with the
servo.
Spring.
Right side.
Metal clevis.
Pushrod.
Cable.
M3x10mm.
Control horn.
