SPARROW HAWK
Right side.
3.2mm.
Elevator control horn.

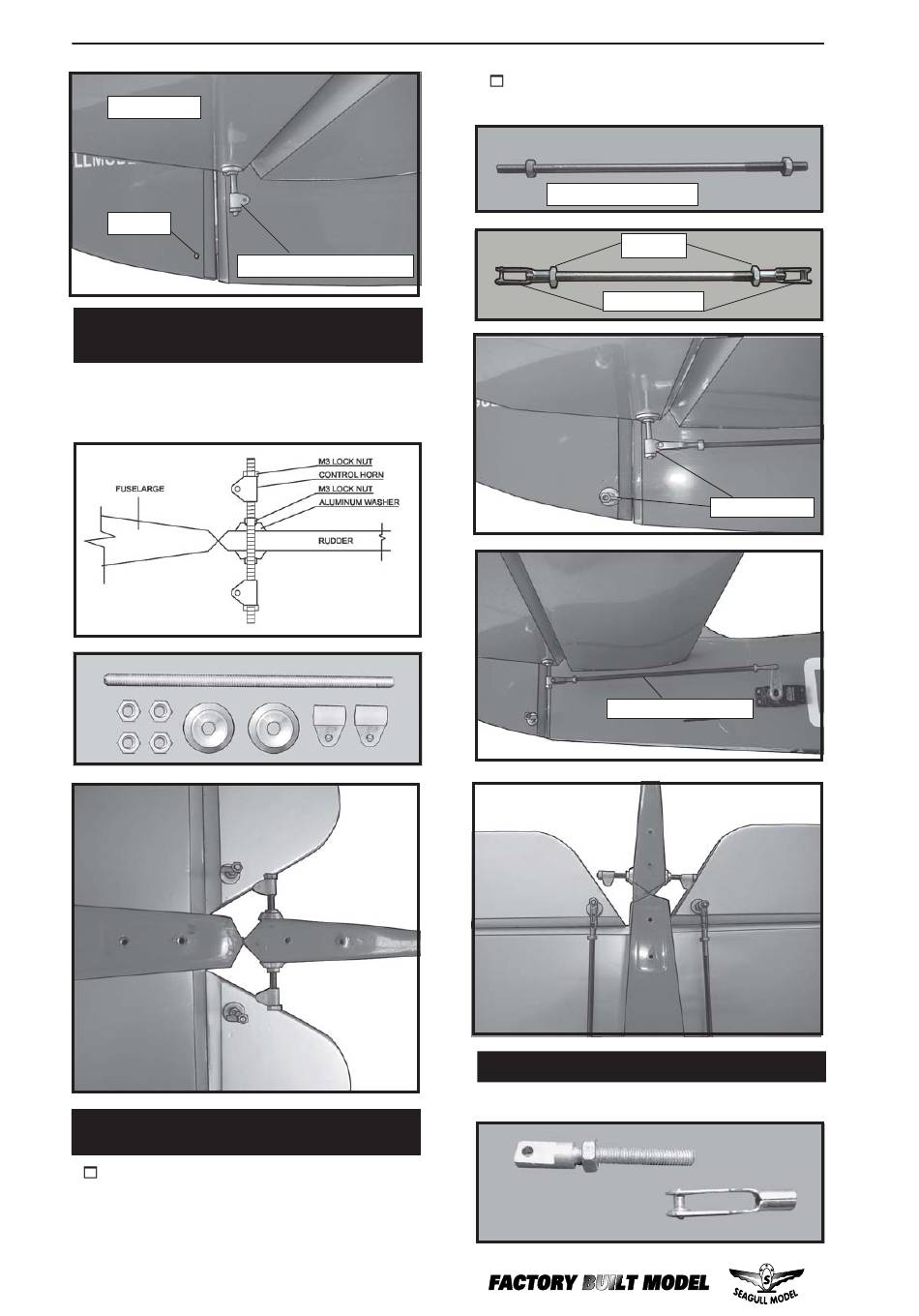

RUDDER CONTROL HORN
INSTALLATION.
Rudder control horn:
Using the same tectniques used aileron control
horn. See picture below.

ELEVATOR PUSHROD INSTALLATION.

1) Thread one clevis and M3 lock nut on
to each elevator control rod. Thread the horns
on until they are flush with the ends of the con-
trol rods.
16
Instruction Manual
2) Elevator pushrods assembly follow
pictures below.
Pushrod L= 210mm.
M lock
3
Metal Levis.
Elevator pushrod.
RUDDER PULL - PULL CABLE SYSTEM.
See pictures below.
control horn.
