F1070/F1080 - H3C SecPath F10 0 Series Installation Manual

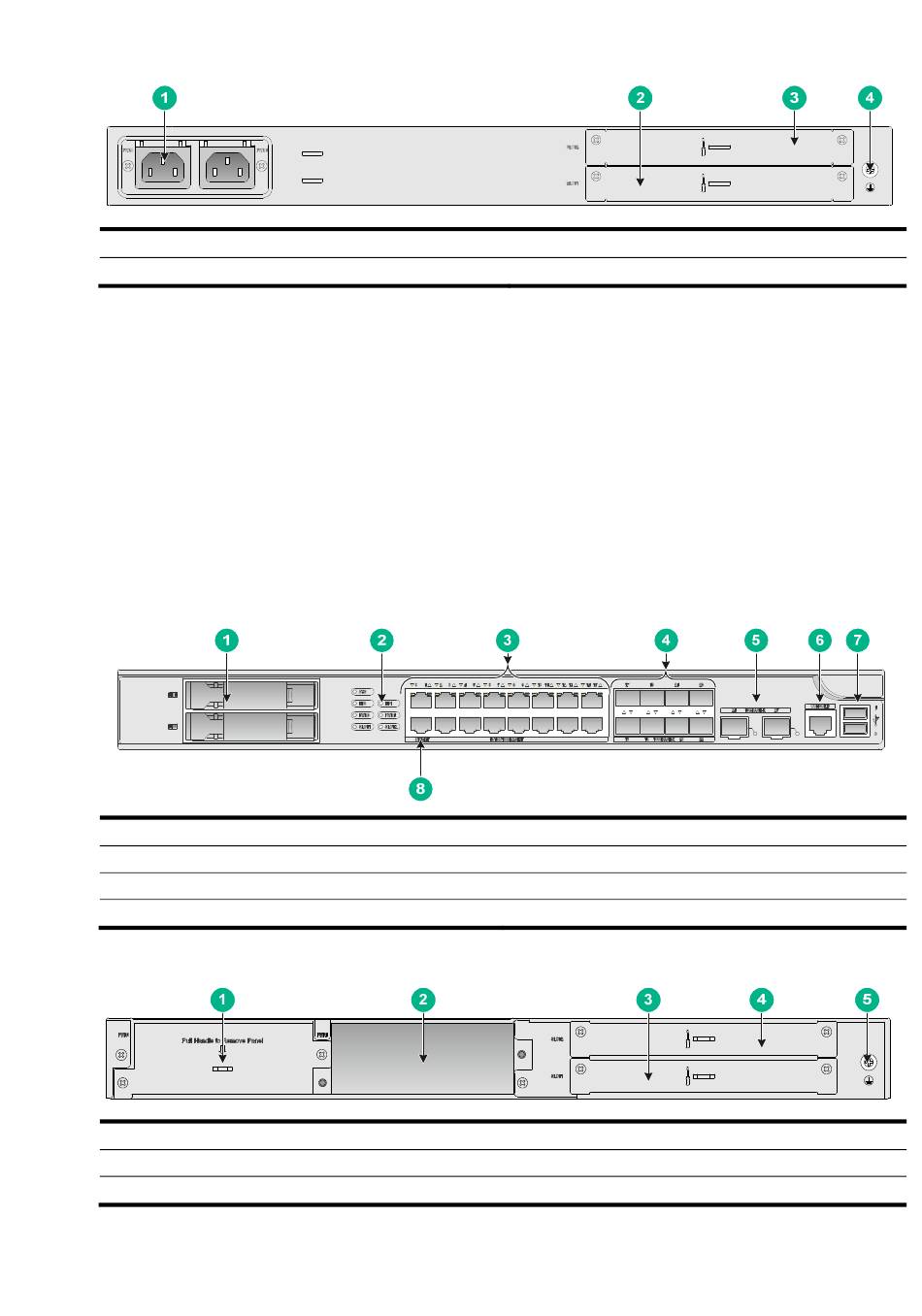

Figure 42 Rear panel
(1) Power receptacle
(3) Interface module slot 2 (not supported)

F1070/F1080

The F1070/F1080 firewall provides the following ports on the front panel:
•
Sixteen 10/100/1000BASE-T autosensing Ethernet copper ports.
•
Eight 1000BASE-X fiber ports.
•
Two 10GBASE-R fiber ports.
•
Two USB ports.
•
One console port.
•
Two hard disk slots.
Figure 43 Front panel
(1) Hard disk slots
(3) 10/100/1000BASE-T copper ports
(5) 10GBASE-R fiber ports
(7) USB ports
Figure 44 Rear panel
(1) Power module slot 0
(3) Interface module slot 1
(5) Grounding screw
(2) Interface module slot 1
(4) Grounding screw
(2) LEDs
(4) 1000BASE-X fiber ports
(6) Console port
(8) Management Ethernet port (0/MGMT)
(2) Power module slot 1
(4) Interface module slot 2
42
