Appendix B LEDs

This section uses the LEDs on the F1080 firewall as an example.

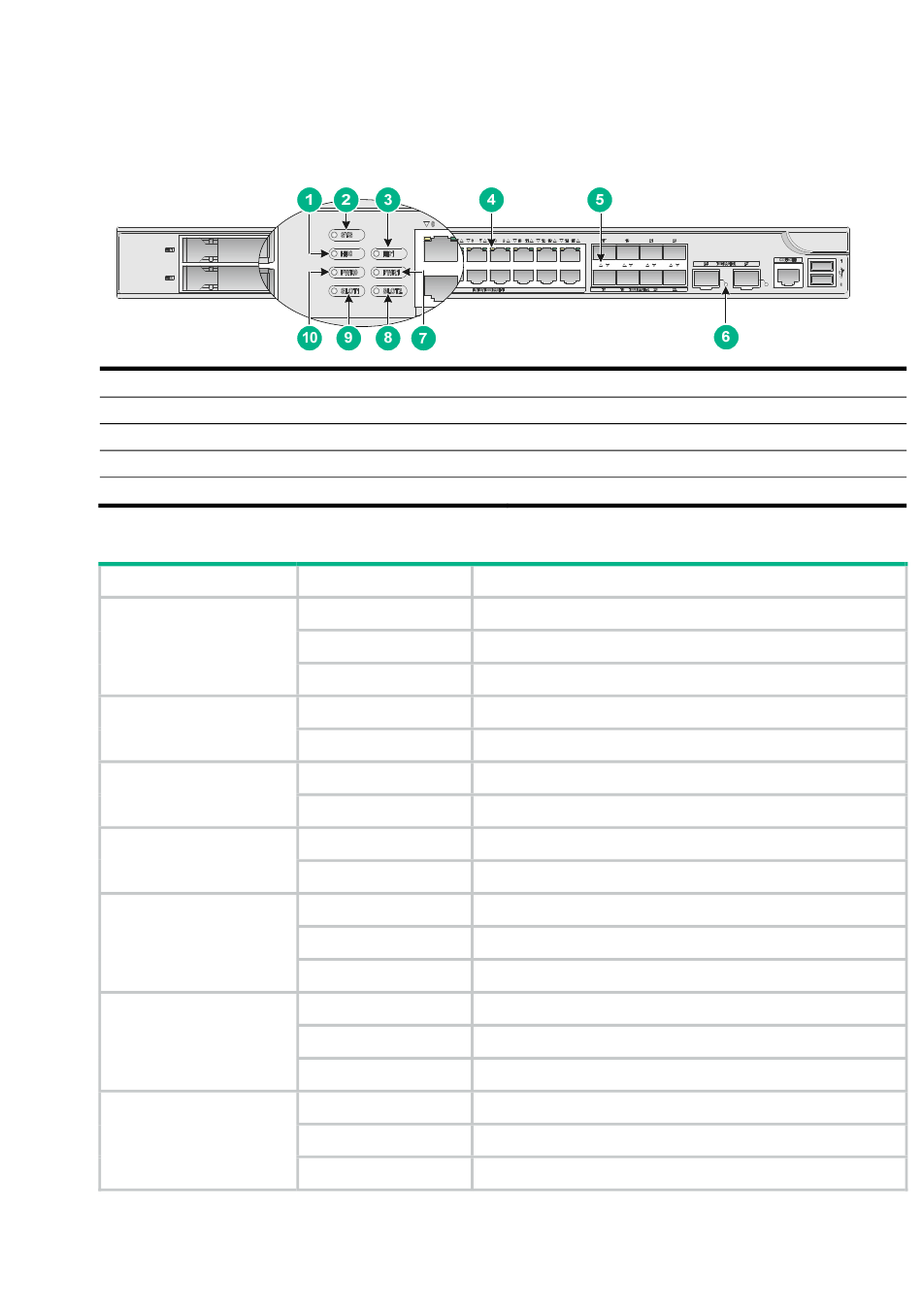

Figure 56 LEDs
(1) Hard disk status LED (HD0)
(3) Hard disk status LED (HD1)
(5) 1000BASE-X fiber port LED
(7) Power module LED (PWR1)
(9) Interface module LED (SLOT1)
Table 29 LED description
LED
System status LED
Hard disk status LED
Interface module LED
Power module LED
10/100/1000BASE-T
copper port LED
1000BASE-X fiber port
LED
10GBASE-R fiber port
LED
Status Description
Off The firewall is not powered on or has failed.
Slow flashing (green) The firewall is operating correctly.
Fast flashing (green) The firewall is loading software.
Fast flashing (green) Data is being read from or written to the hard disk.
Steady green The hard disk is present and operating correctly.
Off The interface module is not present or has failed.
Steady green The interface module is operating correctly.
Off The power module is not present or has failed.
Steady green The power module is operating correctly.
Off No link is present.
Steady green A link is present.
Flashing green The port is receiving and sending data.
Off No link is present.
Steady green A 1000 Mbps link is present.
Flashing green The port is receiving and sending data at 1000 Mbps.
Off No link is present.
Steady green A 10 Gbps link is present.
Flashing green The port is receiving and sending data at 10 Gbps.
55
(2) System status LED (SYS)
(4) 10/100/1000BASE-T copper port LED
(6) 10GBASE-R fiber port LED
(8) Interface module LED (SLOT2)
(10) Power module LED (PWR0)
