F1090

The F1090 firewall provides the following ports on the front panel:
•
Fourteen 10/100/1000BASE-T autosensing Ethernet copper ports.
•
Eight 1000BASE-X fiber ports.
•
Eight 10GBASE-R fiber ports.
•
Two USB ports.
•
One console port.
•
One micro USB port.
•
Two hard disk slots.
•
Two management Ethernet ports.

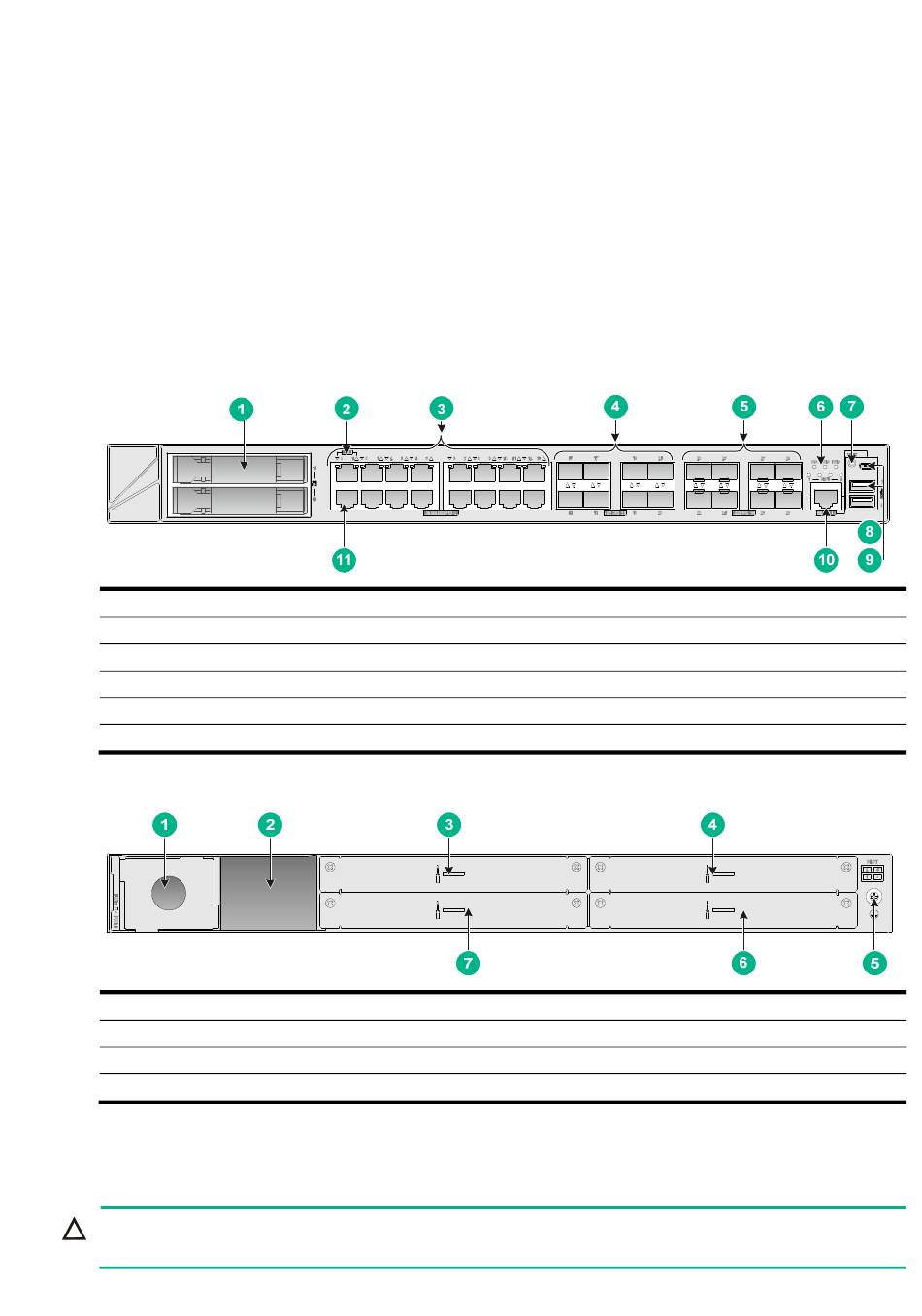

Figure 45 Front panel
(1) Hard disk slots
(3) 10/100/1000BASE-T copper ports
(5) 1000BASE-X fiber ports
(7) Reset button
(9) USB port
(11) Management Ethernet port (MGMT)
Figure 46 Rear panel
(1) Power module slot 1
(3) Interface module slot 1
(5) Grounding screw
(7) Interface module slot 1

Interface modules

CAUTION:
The interface modules are not hot swappable.
(2) Management Ethernet port (MGMT)
(4) 10GBASE-R fiber ports
(6) LEDs
(8) Micro USB console port
(10) Console port
(2) Power module slot 2
(4) Interface module slot 4
(6) Interface module slot 3
