Appendix A Chassis views and technical
specifications

Chassis views

F1005/F1010

The F1005/F1010 firewall provides the following ports on the front panel:
Eight 10/100/1000BASE-T autosensing Ethernet ports.
Two bypass ports.
Two combo interfaces.
Two USB ports.
One console port.
One hard disk slot.

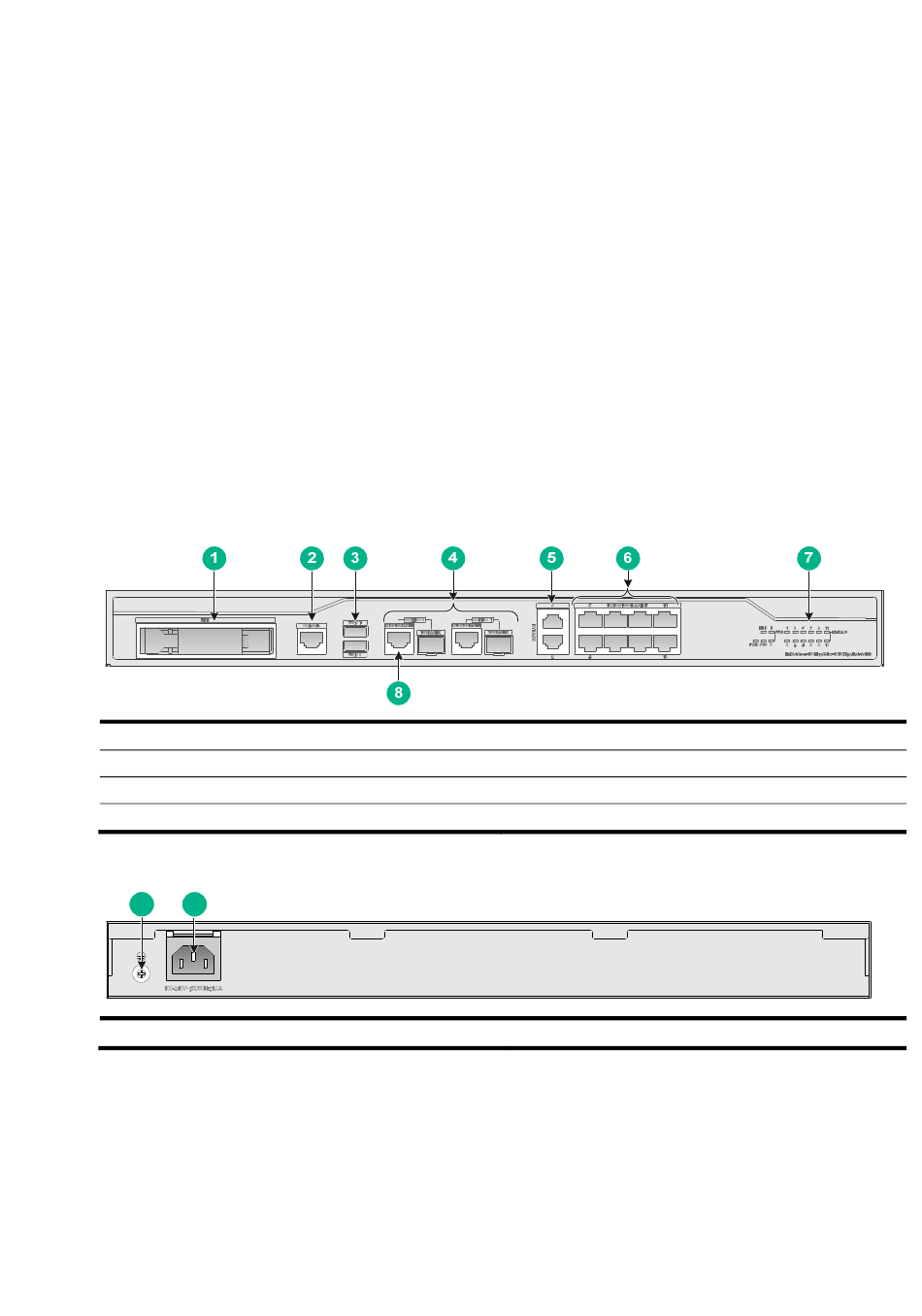

Figure 37 Front panel
(1) Hard disk slot
(3) USB ports
(5) Bypass ports
(7) LEDs
Figure 38 Rear panel
1
2
(1) Grounding screw

F1020

The F1020 firewall provides the following ports on the front panel:
Sixteen 10/100/1000BASE-T autosensing Ethernet copper ports.
Eight 1000BASE-X fiber ports.
Two USB ports.
One console port.
(2) Console port
(4) Combo interfaces
(6) 10/100/1000BASE-T copper ports
(8) Management Ethernet port GE1/0/0
(2) Power receptacle
