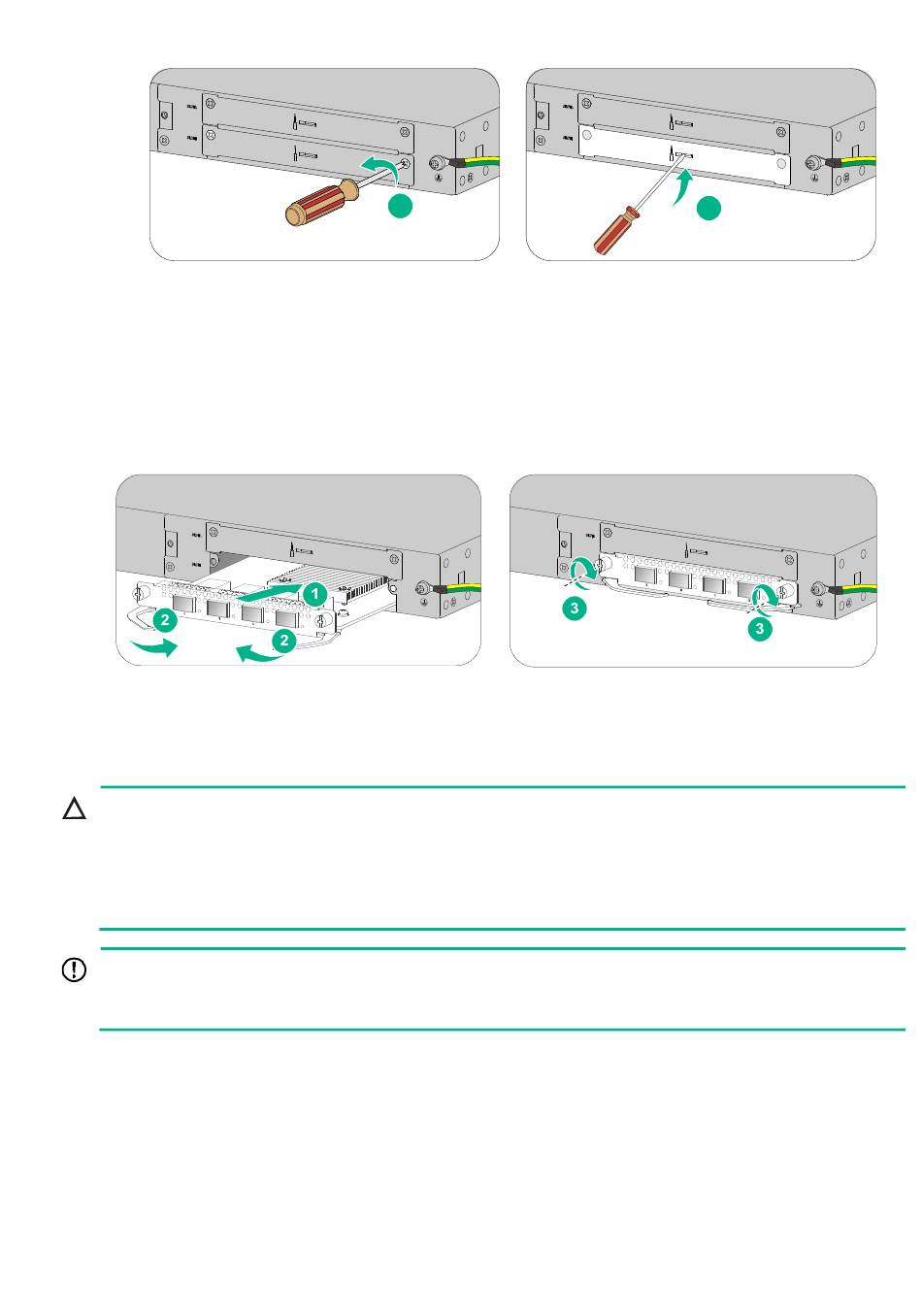

Figure 17 Removing the filler panel
Pull the ejector levers on the module outward and slide the module slowly into the slot along the
3.
guide rails.
Press the ejector levers inward until they touch the panel tightly and the module seats into the
4.
slot securely.
Use a Phillips screwdriver to fasten the captive screws on the module.
5.
Figure 18 Installing an interface module

(Optional) Installing and removing a hard disk

CAUTION:
• Hard disks are not hot swappable.
• To avoid damage to hard disks, always hold a hard disk by its sides. Do not touch any
components and do not squeeze, vibrate, or strike a hard disk.
• Install a filler panel in empty hard disk slots to prevent dust and ESD damage.
IMPORTANT:
The device does not come with any hard disks and cannot recognize hard disks from other vendors.
Purchase hard disks from H3C as needed.
Installing a hard disk
Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
1.
Remove the filler panel from the hard disk slot.
2.
Press the button on the hard disk panel to release the locking lever.
3.
Hold the locking lever and push the hard disk into the slot slowly along the guide rails. Then
4.
close the locking lever.
1
17
2
