Face the rear panel of the firewall.
1.
Remove the cable tie from the power cord and then remove the power cord connector from the
2.
power module.
Hold the power module handle with one hand, press the latch towards the handle, and then pull
3.
the power module part way out of the slot. Supporting the power module bottom with one hand,
slowly pull the power module out of the slot along the guide rails with the other.
Put the removed power module in an antistatic bag or on the workbench.
4.
Install a new power module. For the installation procedure, see
5.
the F1090."
If you are not to install a new power module, install a filler panel in the slot to ensure good
ventilation in the firewall.

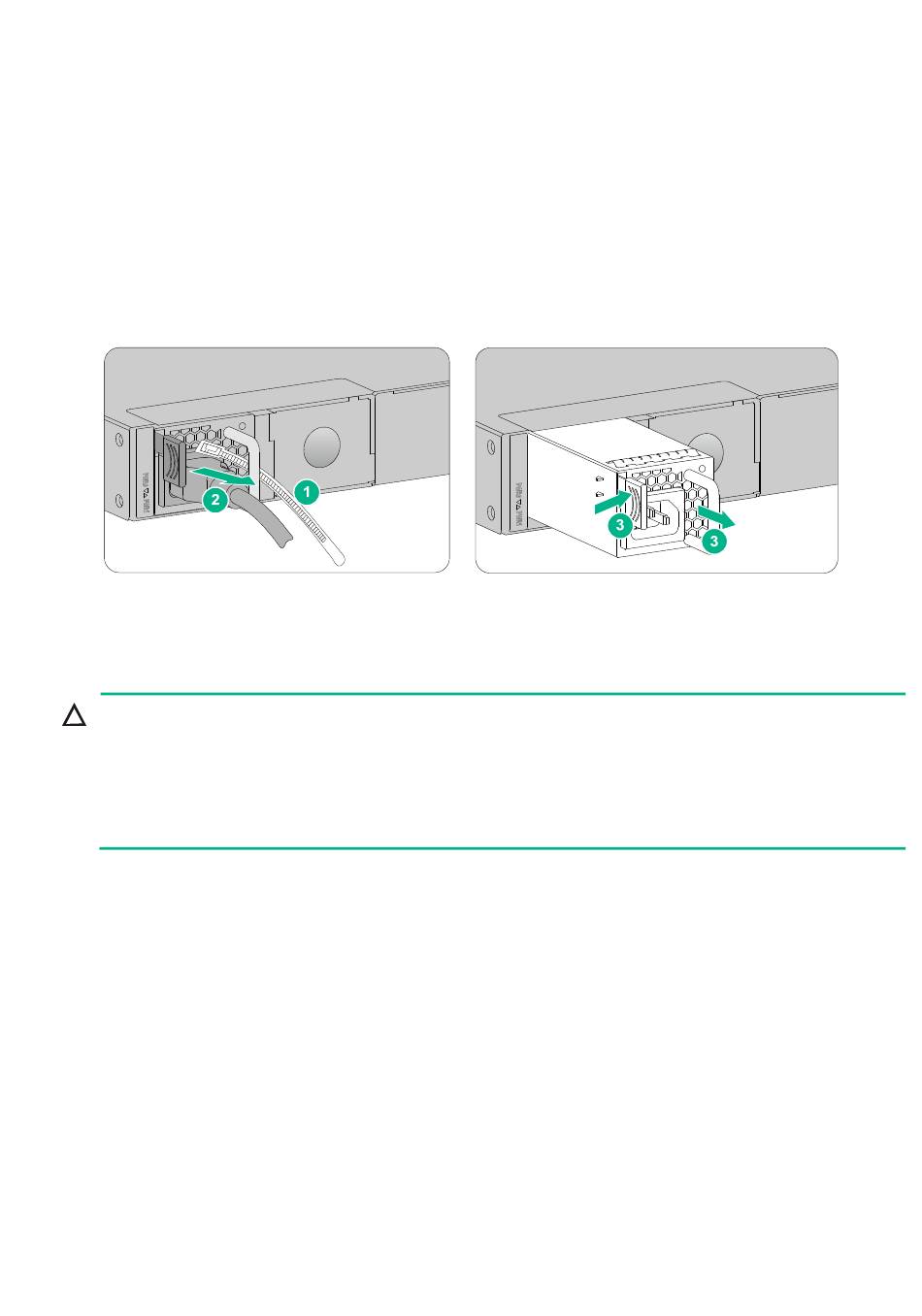

Figure 33 Removing a power module from an F1090 firewall

Replacing an interface module

CAUTION:
• Interface modules are not hot swappable. Power off the firewall before you replace an interface
module.
• To install two or more interface modules, use the upper interface module slots as a best practice.
If you have installed an interface module in a lower slot, you must press down the ejector levers
of the interface module while inserting it into an upper slot.
The F1005/F1010 does not support interface modules.
To replace an interface module:
Power off the firewall.
1.
Use a Phillips screwdriver to loosen the captive screws of the interface module.
2.
Holding the ejector levers of the interface module with both hands, pull the ejector levers
3.
outward, and pull the interface module part way out of the slot along the slide rails. Supporting
the bottom of the interface module with one hand, gently pull the interface module out of the slot
with the other.
Put the removed interface module (with the circuit board facing upward) on an antistatic
4.
workbench or into an antistatic bag.
Install a new interface module. For the installation procedure, see
5.
interface
If you are not to install a new interface module, install a filler panel in the slot to ensure good
ventilation in the firewall.
module."
30
"Installing a power module for
"(Optional) Installing an
