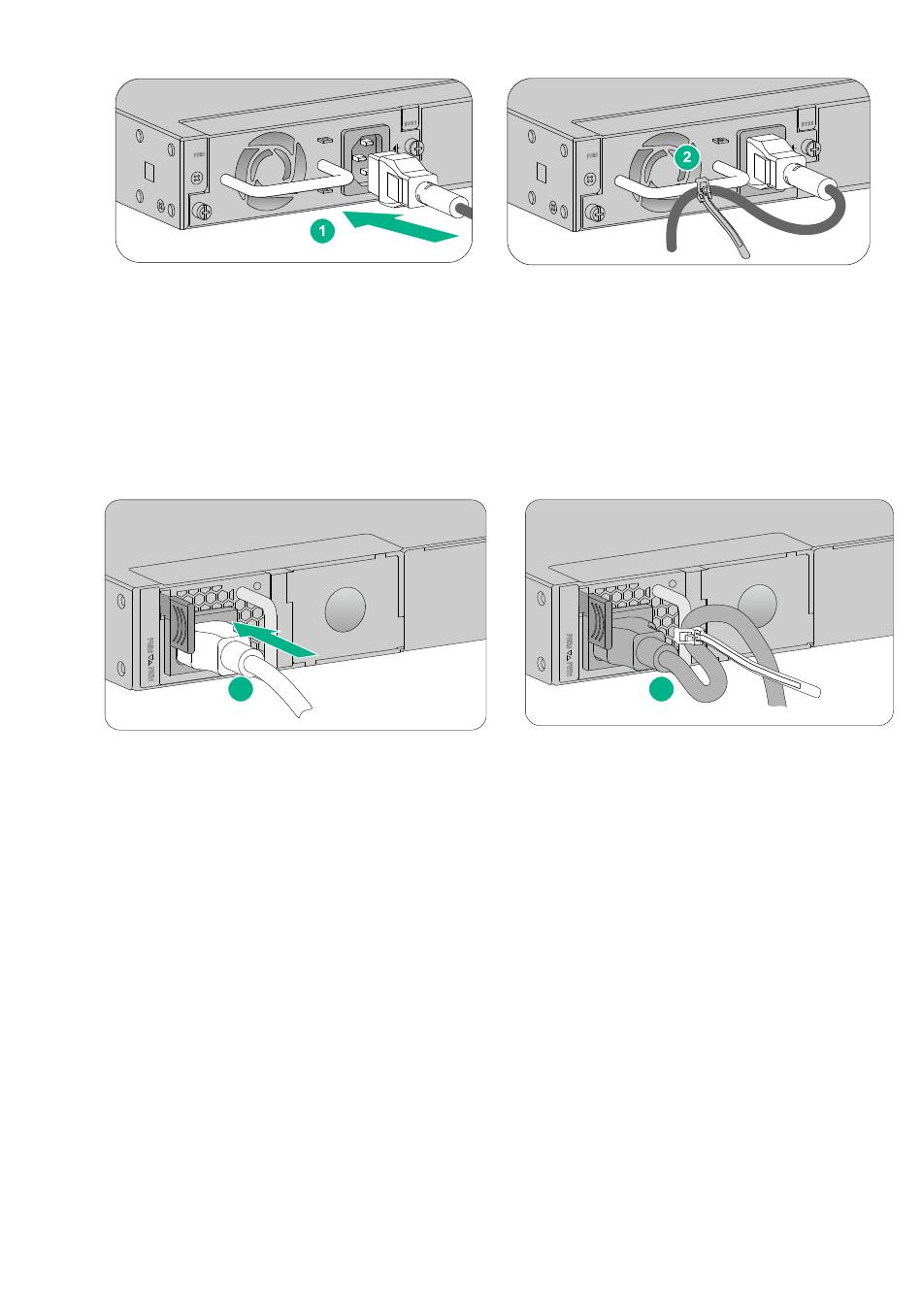

Figure 28 Connecting an AC power cord (using a cable tie to secure the power cord)
Connecting an AC power cord for an F1090 firewall
Connect the female connector of the AC power cord to the AC-input power receptacle on the
1.
power module.
Use a cable tie to secure the AC power cord to the power module handle.
2.
Connect the other end of the power cord to an AC power source.
3.
Figure 29 Connecting an AC power cord for an F1090 firewall

Connecting a DC power cord

Connecting a DC power cord for an F1070, F1080, or F1090 firewall
Correctly orient the DC power cord connector with the power receptacle on the power module,
1.
and insert the connector into the receptacle.
The receptacle is foolproof. If you cannot insert the connector into the receptacle, re-orient the
connector rather than use excessive force to push it in.
Fasten the captive screws on the power cord connector with a flathead screwdriver to secure
2.
the power cord connector.
Use a cable tie to secure the power cord to the handle.
3.
Connect the other end of the power cord to a DC power source.
4.
