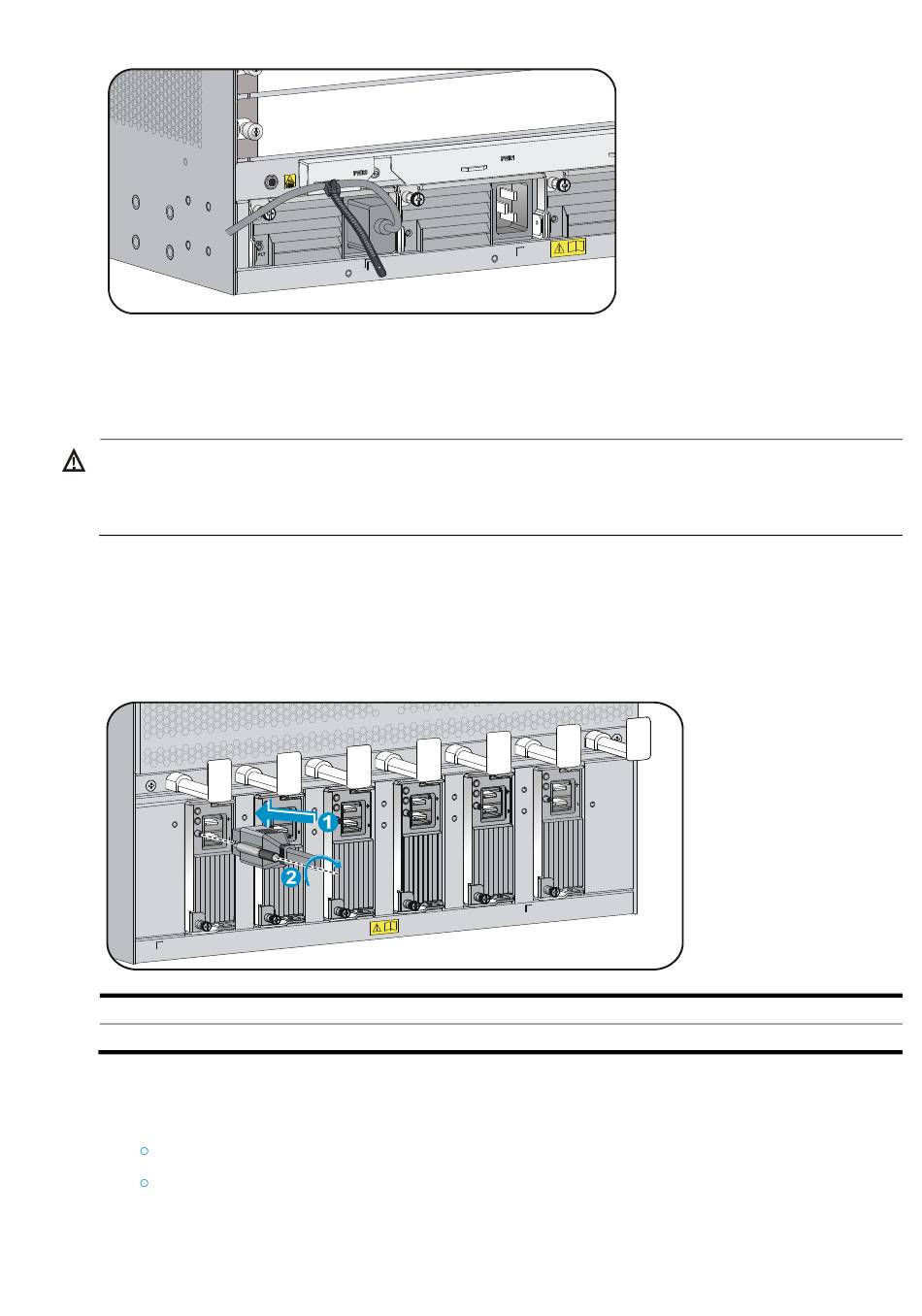

Figure 12 Securing the AC power cord (T9006)
Connecting a DC power cord
WARNING!
Make sure each power cord has a separate circuit breaker.
•
Before you connect a power cord, make sure the circuit breaker at the power input end is switched off.
•
To connect a DC power cord:
1.
Plug the DC power cord connector into the power receptacle of the power module.
2.
Fasten the screw on the connector to secure the power cord in place.
Figure 13 Connecting a DC power cord (T9010)
(1) Plug the DC power cord connector into the power receptacle of the power module
(2) Fasten the screw
3.
Use a cable tie to secure the power cord to the cable management bracket. See
4.
Connect the other end of the DC power cord to the DC source terminal block.
Connect the blue wire marked –48V to the terminal marked –48V.
Connect the black wire marked RTN to the terminal marked RTN.
12
Figure
12.
