10. At the far end of the circuit, insert a DS1 test signal into the DS1 input using the DS1 test set.
11. Verify that all alarm indicators on the chassis are off and the DS3 test set with DS1 option
is receiving error-free data in the DS1 signal selected for test.
12. Repeat Steps 10 and 11 for all DS1 circuits to be tested.
Stop! You have completed this procedure.
SONEPLEX
BROADBAND
CHASSIS
DLX
or
RLX
ADCP-61-471 • Issue 4 • June 2000 • Section 2: Operation and Maintenance
DSX-3
CROSS-CONNECT
DS3 TEST SET
MON
RX
OUT
IN
TX
OFFICE EQUIPMENT
TX
RX

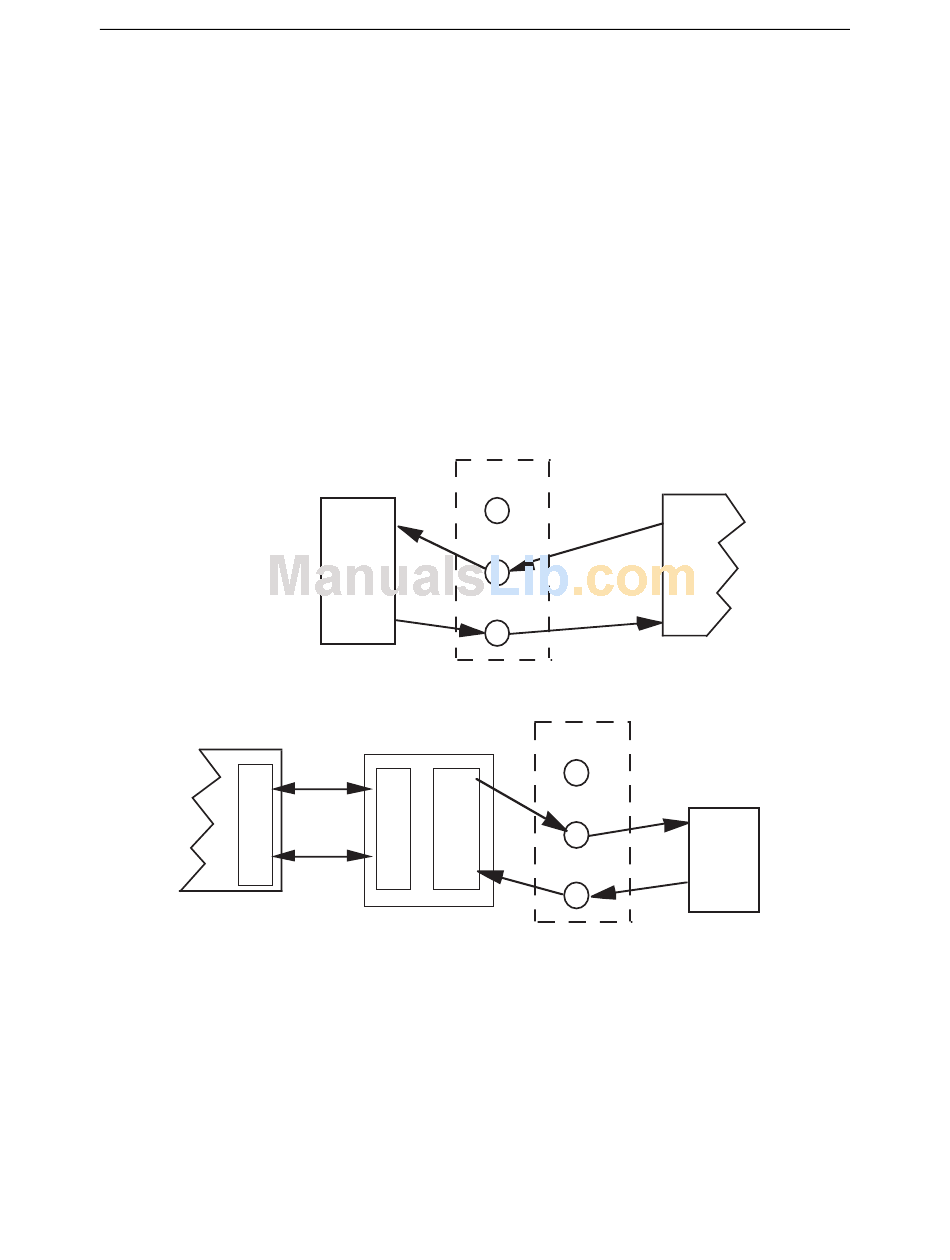

Figure 522-1. Test Setup
SONEPLEX
BROADBAND
CHASSIS
TX
DS3
RX
DSX-1
CROSS-CONNECT
MON
DS1 TEST SET
OUT
RX
IN
TX
© 2000, ADC Telecommunications, Inc.
DLP-522
Page 2 of 2
