ADC Soneplex Broadband System Operation And Maintenance Manual page 322

ADCP-61-471 • Issue 4 • June 2000 • Section 2: Operation and Maintenance
TAP-101
Page 13 of 13
LOCAL REMOTE
(SITE = -1) (SITE = -2)
NEND FEND
DS1 T1 DS1
Span
RLX
Repeater
DS1 T1 DS1
FEND NEND
TO NETWORK TO CUSTOMER
KEY
NEND means "PM information collected directly from incoming T1 signals, both at
local and remote sites".
FEND means "ESF PM information collected at the opposite end of spans from the
affected circuit and returned to the system via ESF datalink". The framing format
must be ESF in order for FEND information to be displayed.
10265-A

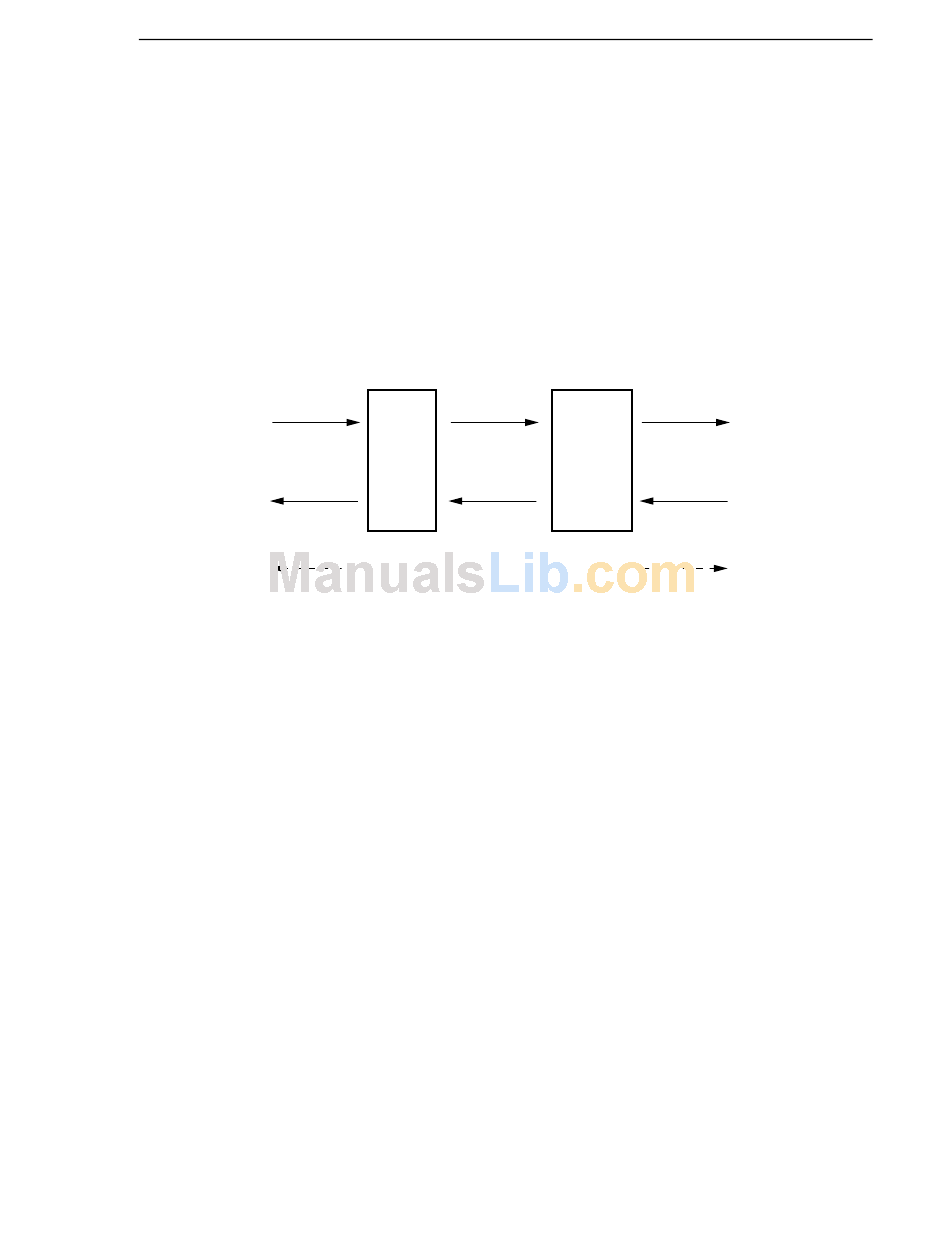

Figure 101-11. RLX NEND and FEND Locations
2-299
© 2000, ADC Telecommunications, Inc.
