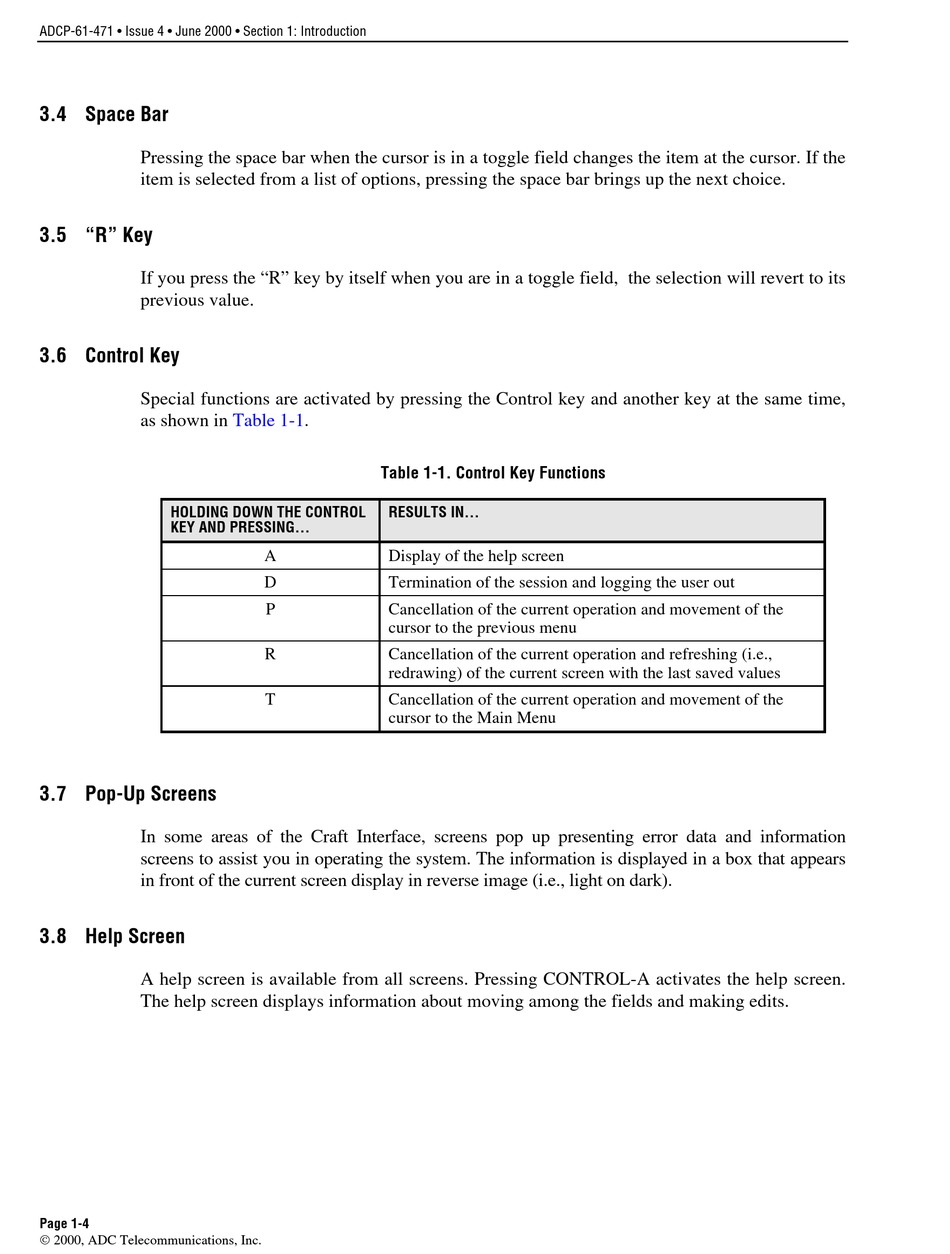

ADCP-61-471 • Issue 4 • June 2000 • Section 1: Introduction

3.4 Space Bar

Pressing the space bar when the cursor is in a toggle field changes the item at the cursor. If the
item is selected from a list of options, pressing the space bar brings up the next choice.

3.5 "R" Key

If you press the "R" key by itself when you are in a toggle field, the selection will revert to its
previous value.

3.6 Control Key

Special functions are activated by pressing the Control key and another key at the same time,
as shown in
HOLDING DOWN THE CONTROL
KEY AND PRESSING...

3.7 Pop-Up Screens

In some areas of the Craft Interface, screens pop up presenting error data and information
screens to assist you in operating the system. The information is displayed in a box that appears
in front of the current screen display in reverse image (i.e., light on dark).

3.8 Help Screen

A help screen is available from all screens. Pressing CONTROL-A activates the help screen.
The help screen displays information about moving among the fields and making edits.
Page 1-4
 2000, ADC Telecommunications, Inc.
Table 1-1.
Table 1-1. Control Key Functions
RESULTS IN...
A Display of the help screen
D Termination of the session and logging the user out
P Cancellation of the current operation and movement of the
cursor to the previous menu
R Cancellation of the current operation and refreshing (i.e.,
redrawing) of the current screen with the last saved values
T Cancellation of the current operation and movement of the
cursor to the Main Menu
