ADC Soneplex Broadband System Operation And Maintenance Manual page 85

ADCP-61-471 • Issue 4 • June 2000 • Section 2: Operation and Maintenance
DLP-517
Page 1 of 1
Summary: This procedure provides instructions for installing the Remote Test Access Unit
(RTAU) in the chassis and verifying that it is functioning properly. The RTAU requires no
provisioning or periodic maintenance.
Caution: Modules can be damaged by electrostatic discharge (ESD). Before handling
any modules, ESD protection must always be used. An ESD grounding post is located on
the chassis for connecting the ESD wrist band. Ensure that all modules removed from
the equipment or not installed, are properly stored in anti-static packing material. When
working with modules, always place the module on an electrically-grounded, approved,
anti-static mat.
Note: For information about installing and testing the RTAU, which is used with MPU
Software Version 5.3, refer to the Soneplex RTAU (Remote Test Access Unit)
Installation Instructions manual, listed under Related Publications at the beginning of
this manual.
1. Remove the RTAU from its protective packaging.
2. Insert the RTAU into the full height chassis slot labeled TAU (as shown in
until it reaches the backplane connector.
3. Using the ejectors, fully seat the RTAU in the chassis. A moderate amount of force may be
required to properly seat the module in the backplane connector.
4. Did the STATUS indicator light green?
• If Yes, you have completed this procedure.
• If No, replace the RTAU and return to Step 1.
Stop! You have completed this procedure.
HSP
HSW
MXW
STATUS
LPBK
ENABLE
ONLINE
DS3 FAIL
LOCKOUT
APS
FORCE
LMPTST/
APS
RESET

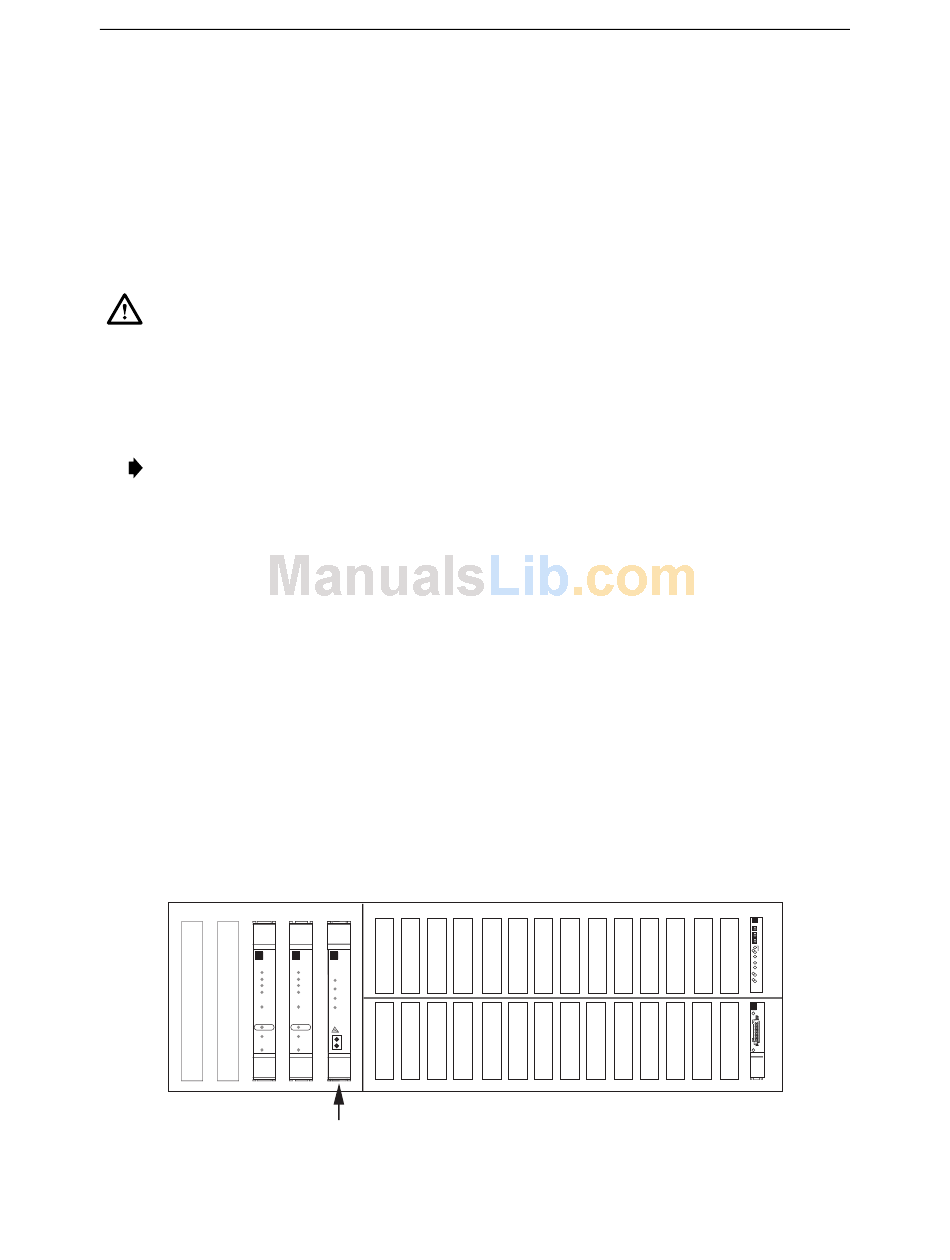

Figure 517-1. RTAU Mounting Position in the Soneplex Broadband Chassis
2-62
© 2000, ADC Telecommunications, Inc.
RTAU INSTALLATION AND TESTING
1-1 1-3 2-1 2-3
MXP TAU
RTAU
STATUS
LPBK STATUS
ENABLE
B8ZS
AMI
ONLINE
LINE CODE
DS3 FAIL INTRUSIVE
TEST
LOCKOUT
APS
FORCE
LMPTST/
APS
RX
D
S
1
TX
RESET
1-2 1-4 2-2 2-4
RTAU MODULE
3-1 3-3 4-1 4-3 5-1 5-3 6-1 6-3 7-1
3-2 3-4 4-2 4-4 5-2 5-4 6-2 6-4 7-2
Figure 517-1)
APU
7-3
CR
MJ
MN
ACO
PWR
HSKP
RMT
ALM
DISP RMT
LMPTST
APU
STATUS
RESET
7-4 MPU
12692-A
