PROJECTOR COMMUNICATIONS (continued)

EXTRON COMM ADAPTERS

STAND ALONE OPERATION

ADDRESS SWITCH SETTINGS
<_ ,, Extron communications adapters (comm adapters) provide the interface between the 9-pin connector of
,, the communications cable and the switcher port. Extro· n manufactures a wide range of comm adapters
to interface with virtually all projector makes and models. Be sure to select the correct Extron comm
"'· ,:,
adapter to meet your specific projector requirements .
If you plan to use your System 8/10 as a stand alone switcher (i.e., not connected to a projector), it should
be configured as an Arnpro. The Arnpro configuration provides the fastest switching speed for all of your
stand alone applications.
For installations with one switcher, configure the System 8/10 as a primary switcher by setting the
AD­DRESS switch on the rear panel as shown in Fig 6-4 below. If multiple switchers are being used, refer
to Section 5 switch settings.
... "7j•:
.1

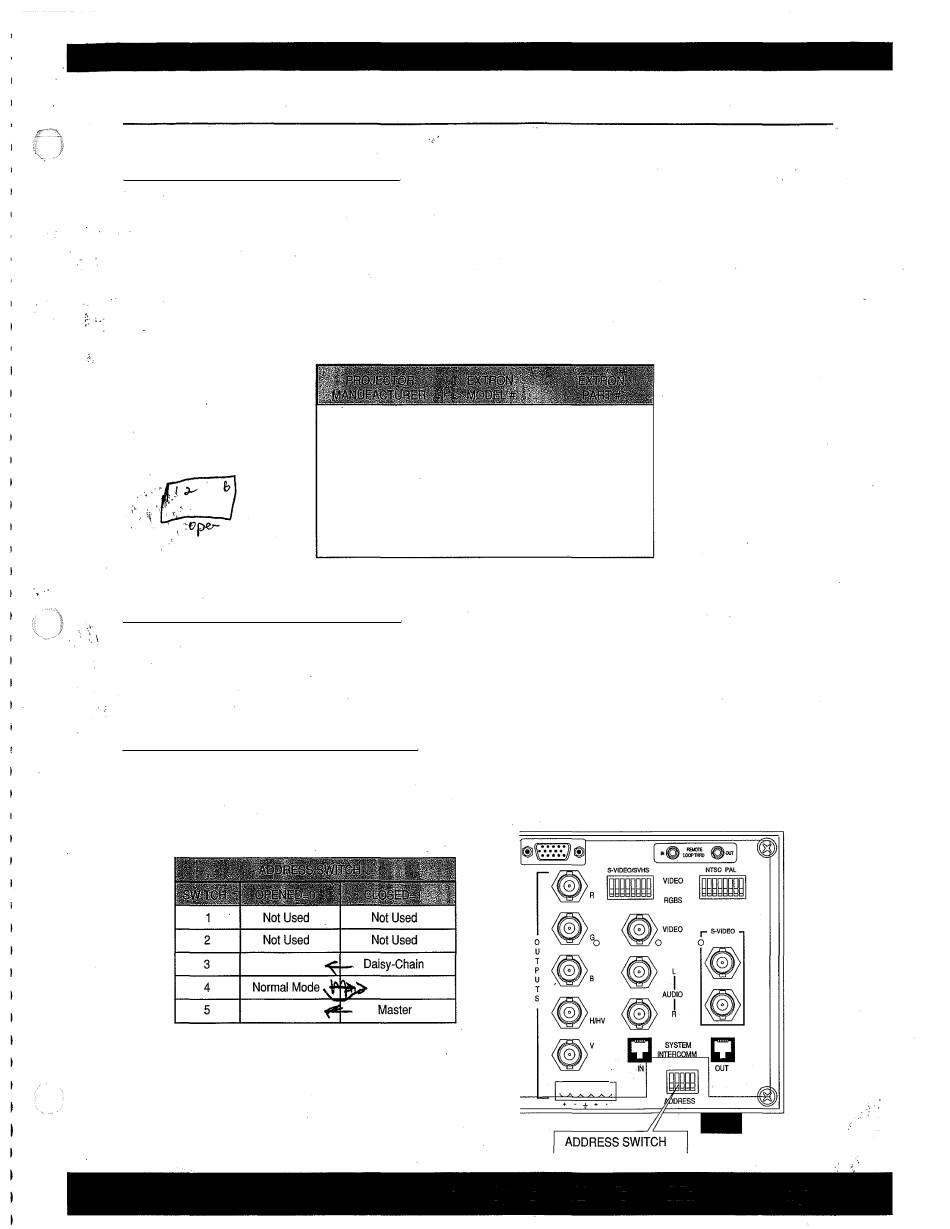

Figure 6-4.
Address Switch Location,
System 8/10 User's Manual • Page 6-3
.
Table 6-1.
List of Extron Comm Adapters.
Ampro AM COM
AmproType II AM COM Type II
Barco BR COM
Electrohome ECP EL COM
Electrohome Marquee ELMAIICOM
GE/NEC
GE COM
Hughes/ JVC HU COM
Mitsubishi XC MIXCCOM
Sony
SY COM
26-304-01
26-322-01
26-309-01
26-310-01
26-355-02
26-311-01
26-341-01
503-186
26-312-01
L-AUOl O -R
�
