20.7.2 Intraoral camera placed in suction holder

Starting intraoral camera
Macro on/off
Freezing/unfreezing image
User's manual
The intraoral camera can also be turned off by
• closing the Planmeca Romexis intraoral camera view,
• pressing the Power/macro button on the handpiece for two seconds, or
by
• not using the intraoral camera for 300 seconds.
Before you turn on the intraoral camera, first select the patient and the 2D
module in Planmeca Romexis. Then, start the camera from the dental unit.
1. Pick up the camera from the suction holder (Flexy-holder).

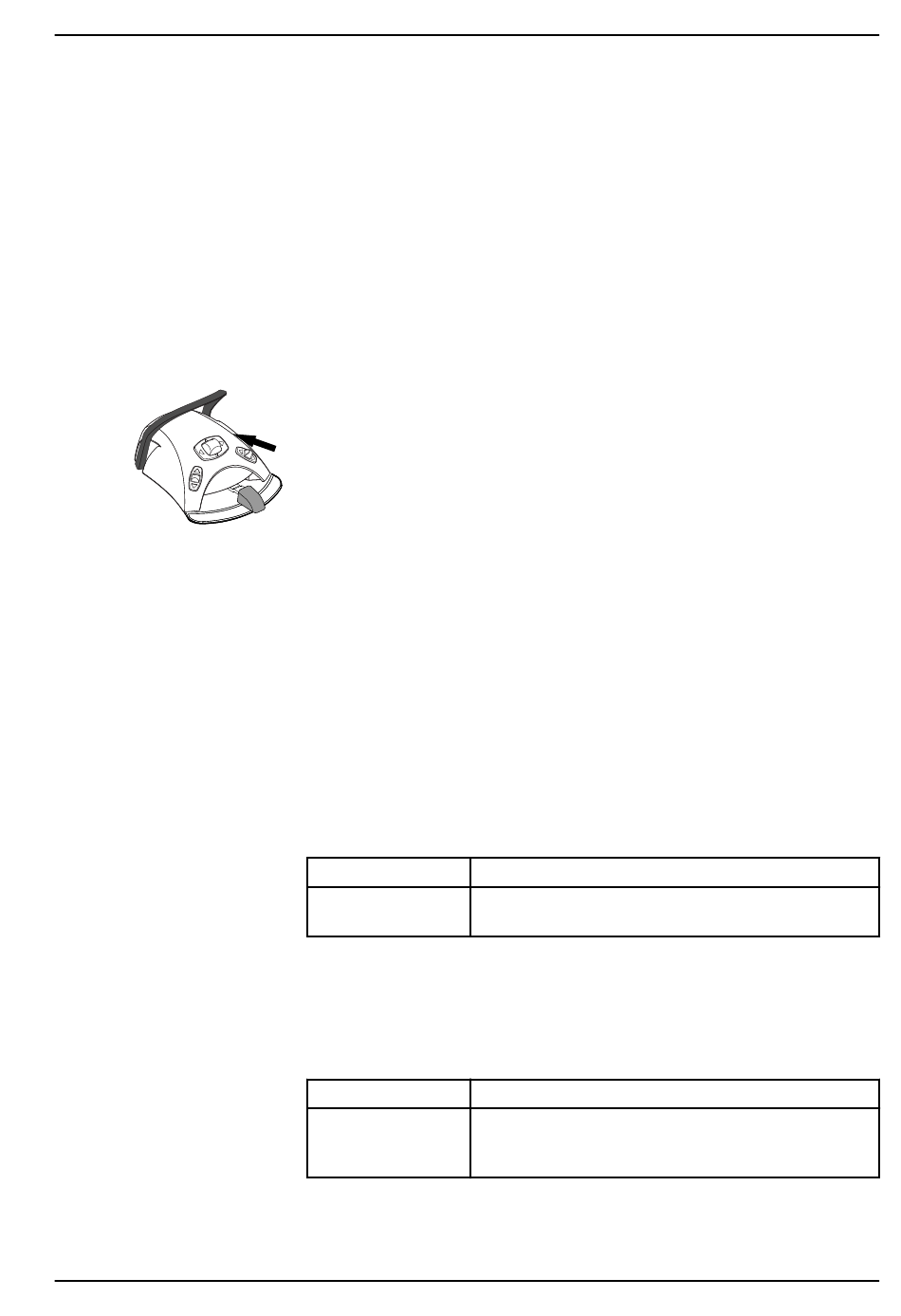

2. Activate the intraoral camera with the foot control by pushing the right-
side knob up (factory default setting).
The dental unit can also be configured so that the intraoral camera is
activated when you push the foot control's left-side knob up or when you
press the Flexy button. Contact your Planmeca dealer.
The indicator light on the handpiece turns blue. The text "I_CAM" shows
on the display and the Planmeca Romexis intraoral camera view is
displayed on the monitor.
Once the intraoral camera is activated, you can operate it
• from the dental unit's foot control,
• from the camera handpiece, or
• remotely from the Planmeca Romexis user interface.
You can use the camera in normal or macro mode, as well as freeze and
save the image. The LED on the handpiece is turned on and off
simultaneously with the intraoral camera.
A short sound signal indicates that the macro mode is turned on/off. When
the macro mode is on, autofocus is off and the indicator light on the
handpiece is lilac.
Interface Action
Handpiece Press the Power/macro button to turn the macro
mode on/off.
A short sound signal indicates the freeze/unfreeze of an image. When the
image is frozen, the indicator light on the handpiece is green. When you
unfreeze the image, the camera goes back to live stream (indicated by the
blue indicator light on the handpiece).
Interface Action
Foot control In Planmeca Compact i dental units, push the foot
control pedal to the left or right to freeze/unfreeze the
image.
20 Operating instruments
Planmeca Compact i 91
