12.5 Manual headrest

12.5.1 Adjusting height of headrest

User's manual

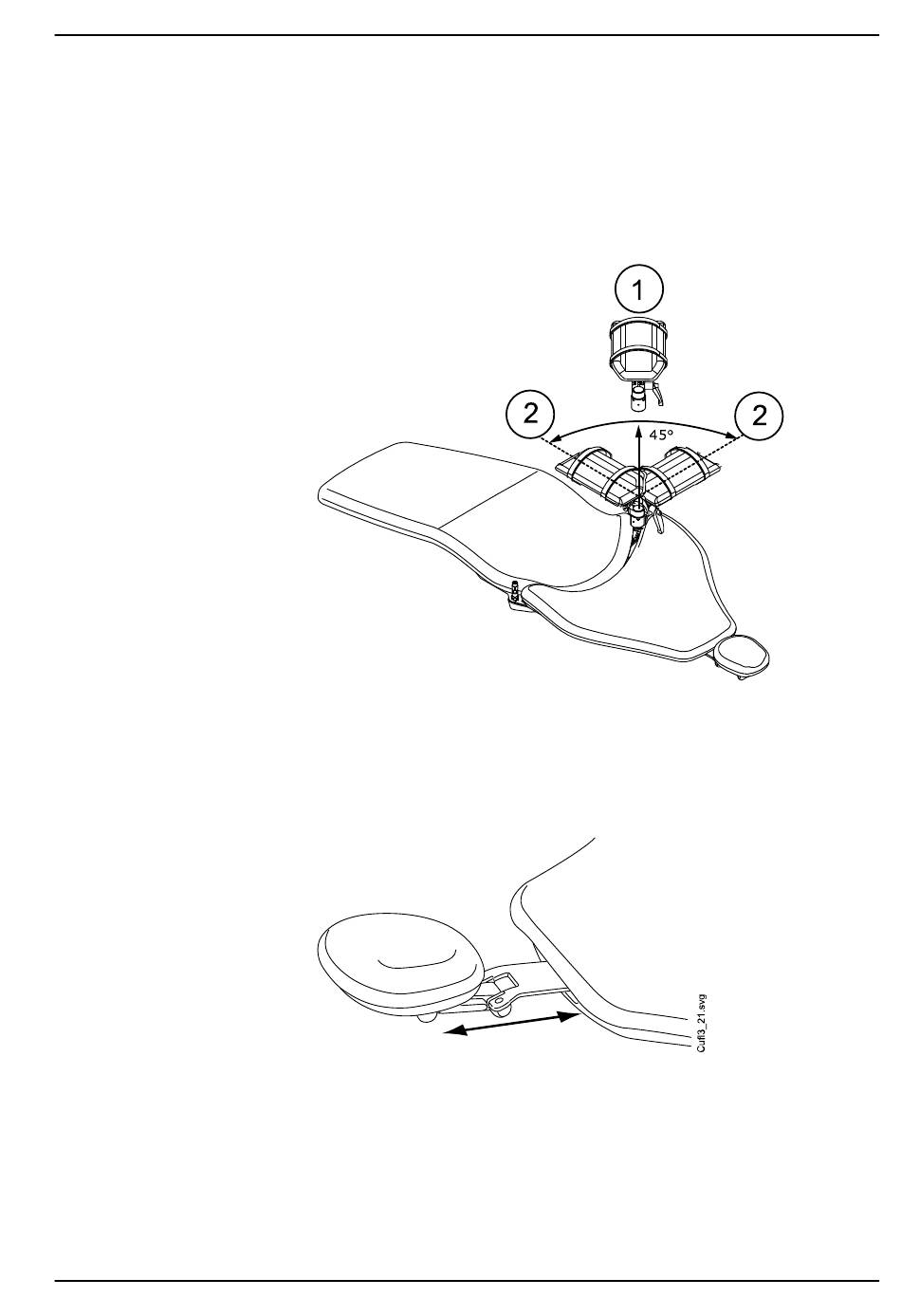

To replace the right standard armrest with the surgical armrest you must first
detach the standard armrest. To do so, lift the armrest slightly to unlock it
and move the armrest to a 45° position. When the armrest is in a 45° angle,
lift it straight up to remove it (1).
Once you have removed the standard armrest, place the surgical armrest on
the spindle in a 45° angle, push the armrest down and rotate in either
direction until it locks into place (2).
The surgical armrest is removed in the same way as the standard armrest.
The height of the headrest can be adjusted by sliding it manually.
12 Patient chair
Planmeca Compact i 47
