12.3 Trendelenburg position

User's manual

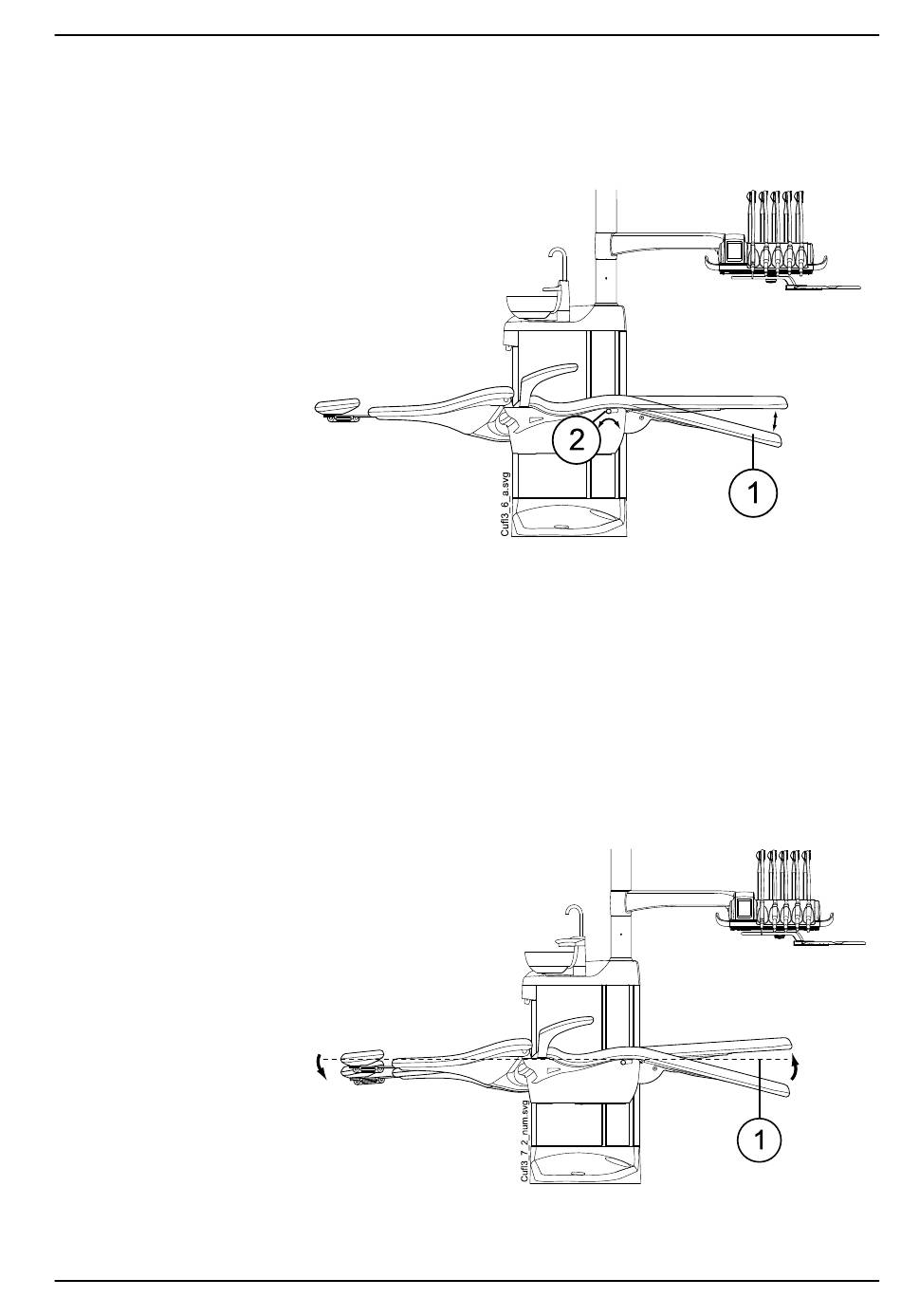

The automatic legrest can be locked approximately 18° from the horizontal
position. To lock the legrest, the lever has to be moved to the left. Support
the legrest with your other hand when locking or unlocking the lever. Notice
that the backrest will move upward and downward when the legrest is
locked.
1. Approx. 18° from the horizontal position
2. Lever
If required, the patient chair can be inclined from the horizontal position to
the Trendelenburg position. In the Trendelenburg position the legrest is in
the horizontal position and the backrest is driven -4° from the horizontal
position.
To drive the patient chair to the Trendelenburg position, first drive the chair
to horizontal position, lock the legrest manually by moving the lever
underneath the legrest to the left, and press the Backrest down button until
the backrest reaches a position of -4°.
1. Horizontal position
