14 Foot control

14.1 Introduction

User's manual
The dental unit has one integrated foot control that operates the instruments,
the unit and the chair.

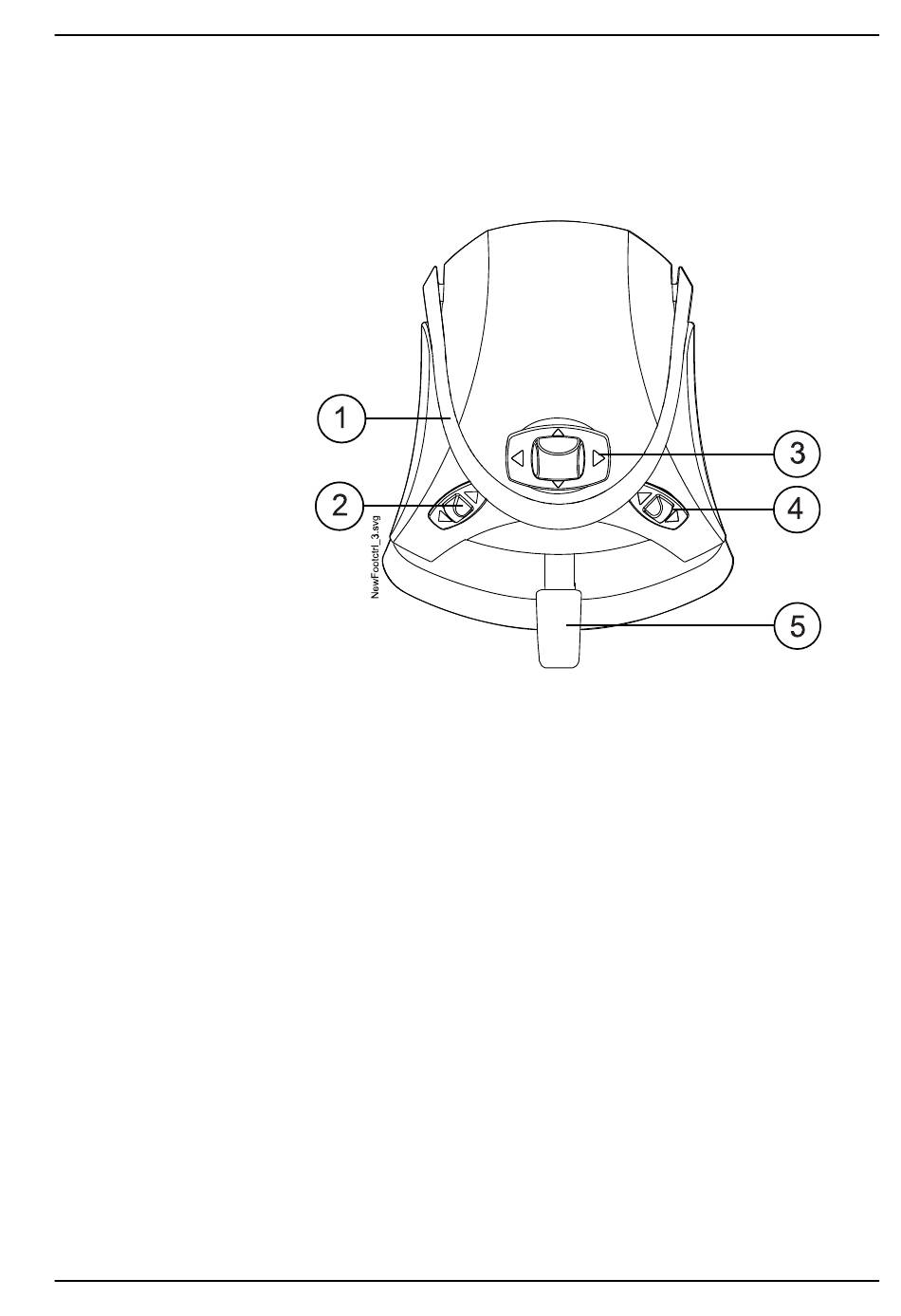

1. Handle
2. Left-side knob
3. Centre knob
4. Right-side knob
5. Pedal
CAUTION
The foot control is a precision instrument. Do not stand on or apply
unnecessary force to the foot control and its knobs.
CAUTION
Do not use the foot control in areas where liquids are likely to be present on
the floor.
