10 Instrument system
10.5.2 Integrated tray table
34
Planmeca Compact i

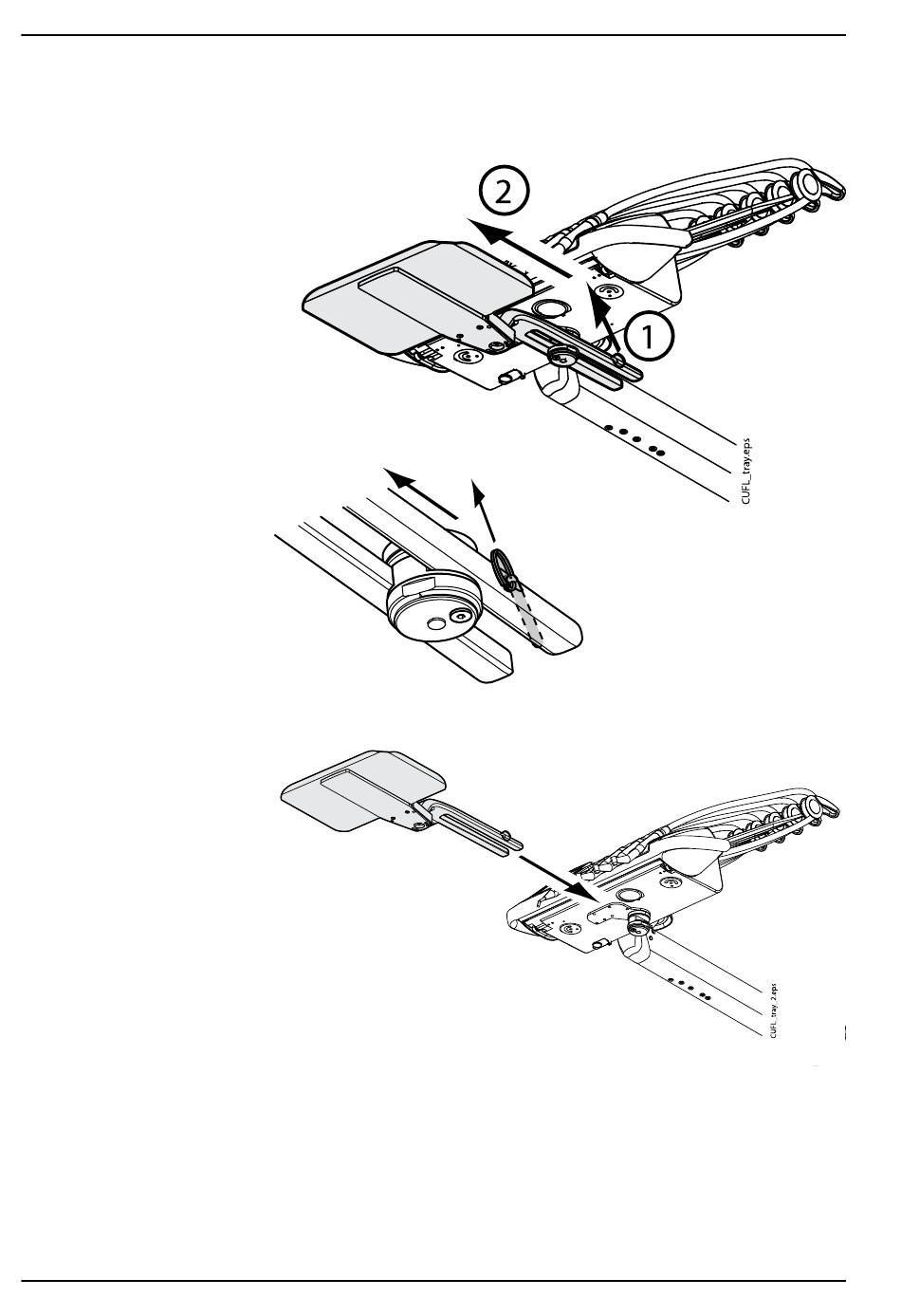

The tray mounting arm is attached to the instrument console with a quick-
connector. To remove the tray assembly from the instrument console, pull
the ring of the locking mechanism outwards (1) and then pull the tray arm
away from its position (2).
The mounting arm can be attached to the instrument console by pushing it to
its position.
The integrated tray table is available for OP-deliveries with hanging-tube
instruments. The maximum load on the tray table is 2 kilograms (4.4 lbs).
User's manual
