This section describes the power panels on the 3408, 3410 and 3412 units.

3408/3410 Power Panels

22
Description
The back cover has five notches that slide into corresponding
slots on the display carrier, as well as three screws that secure it
to the unit.
You can install an external floppy disk drive to the back of the
unit. It connects to the floppy connector on the bottom of the
unit.
There are studs on the back of the unit for panel mounting.

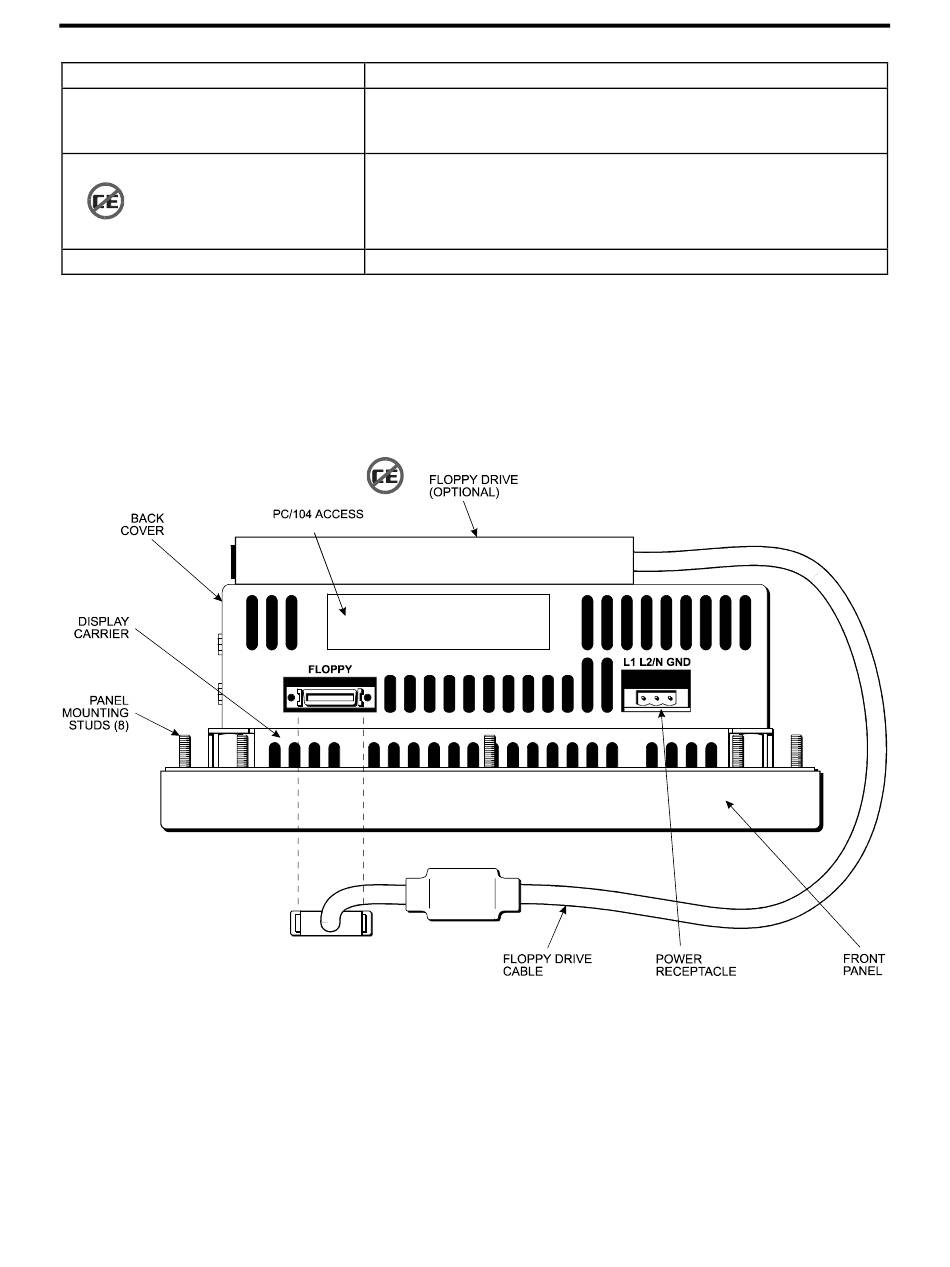

Figure 3-8. 3408 Power Panel
