Power Panel - Xycom 3600 Series 3612T User Manual

3600 Series Flat Panel Industrial PC
Feature
Power Connector
Product ID Label
Fan and Filter
Voltage Selector Switch
Power Connector

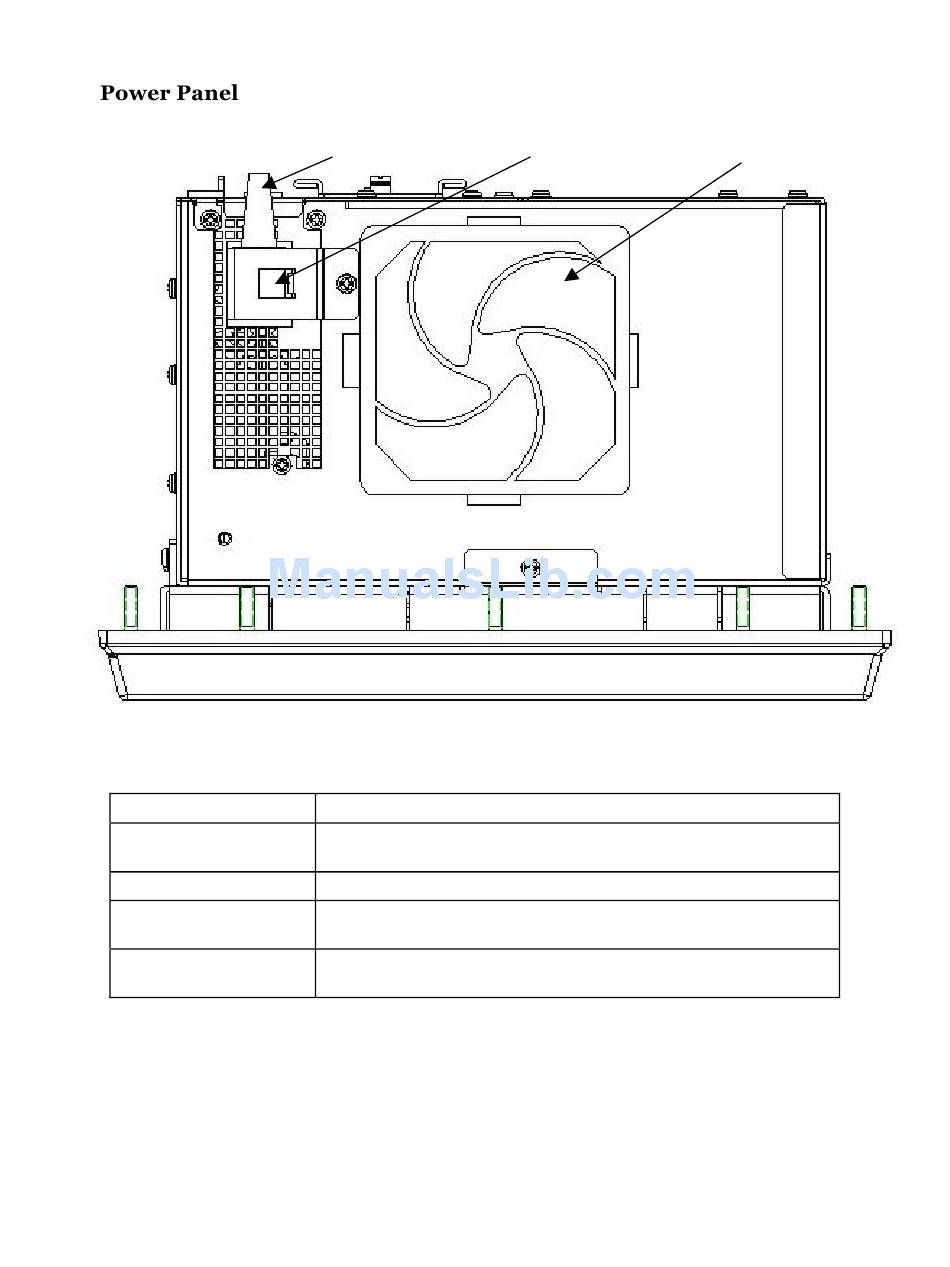

Figure 1-5. 3600 Side Panel with Fan Filter and Power Connector
Table 1-4. 3600 Power Panel
Description
This is a three-pin connector. Refer to the special Hazardous
Locations Installation instructions later in this chapter.
The product ID label is located on the bottom panel.
The filter can be replaced or removed for cleaning. See Chapter
4 for details on the fan filter assembly.
This switch sets the voltage to 115 or 230 VAC for a 50-60 Hz
outlet.
Voltage Selector Switch
(under retaining bracket)
11
Chapter 1 – Introduction
Fan & Filter
