Chapter 7: Implementing a Point-to-Point LAN Extension
Step
2 Select System on the menu bar, then select ATM Statistics under Status to access the ATM Statistics
page (Figure 7-13).
3 View the statistics. If the RX Cell and TX Cell values increment, the two modems have established
communication and are passing traffic. If they do not, refresh the page by clicking the Refresh button on
your Web browser. If the counters still do not increment, verify each modem for the correct configuration
parameters.
7-10
Action

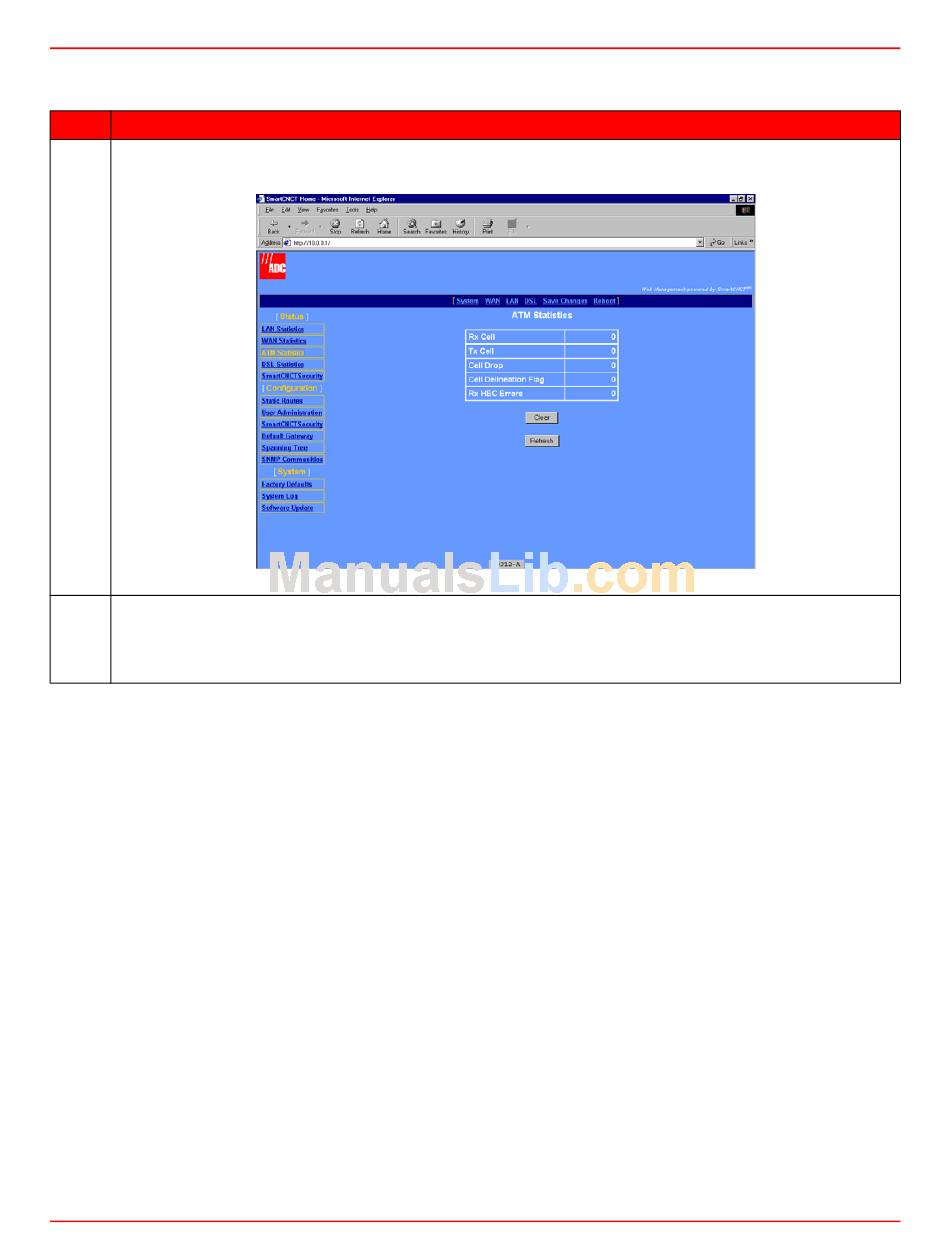

Figure 7-13. ATM Statistics
