Chapter 1: Installation
Step
2 Connect the cables to the modem rear panel as shown below in
• Silver cable to the DSL line port and wall jack
• Black Ethernet cable to the 10/100Base-T port and to another Ethernet device such as a PC, hub,
or router
• Power cable to the modem power connector and to facility power
3 Refer to "LED Status Indications" on page 1-5
1-4
Action

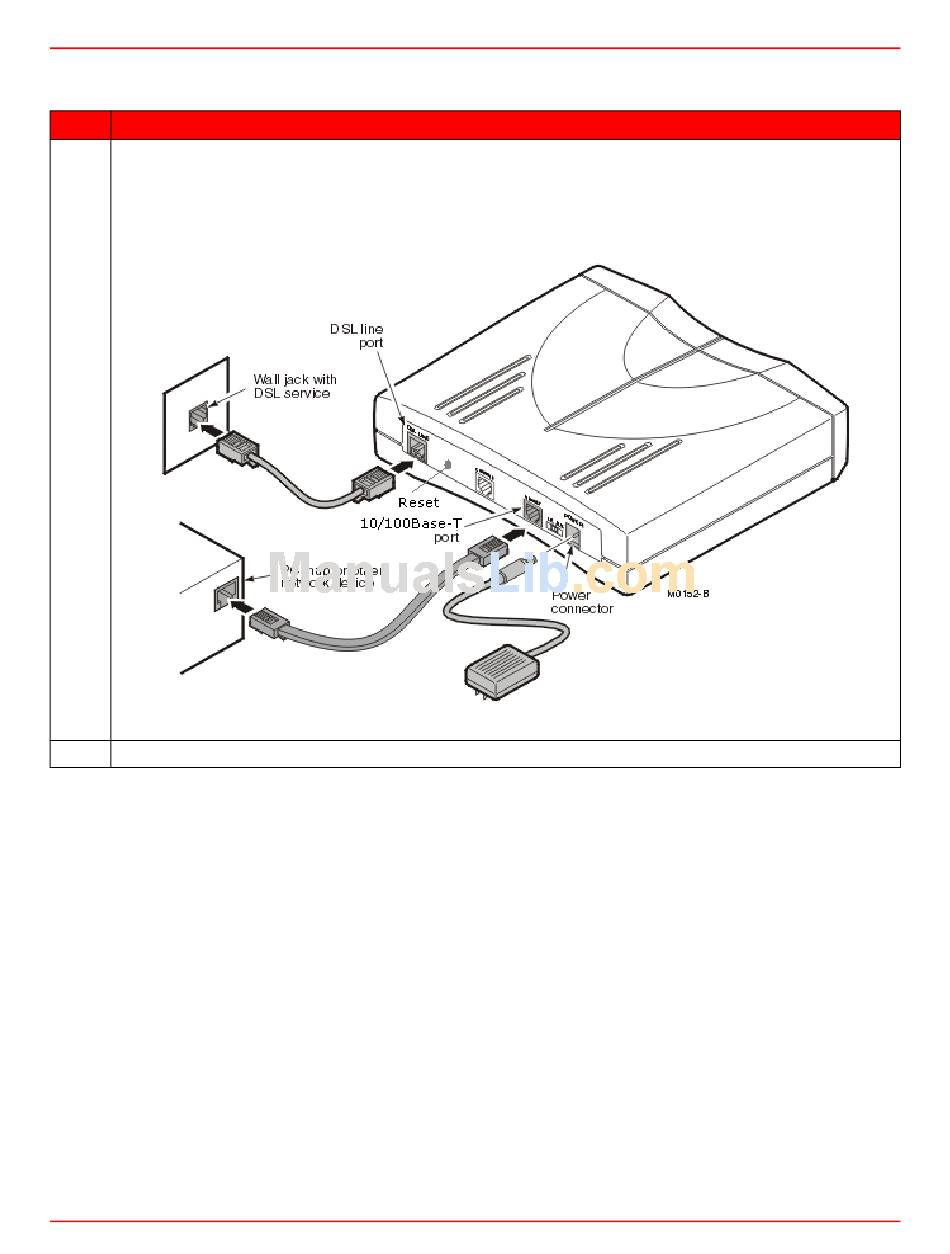

Figure 1-3. Rear Panel Connections
to verify modem status via LEDs.
Figure 1-3:
