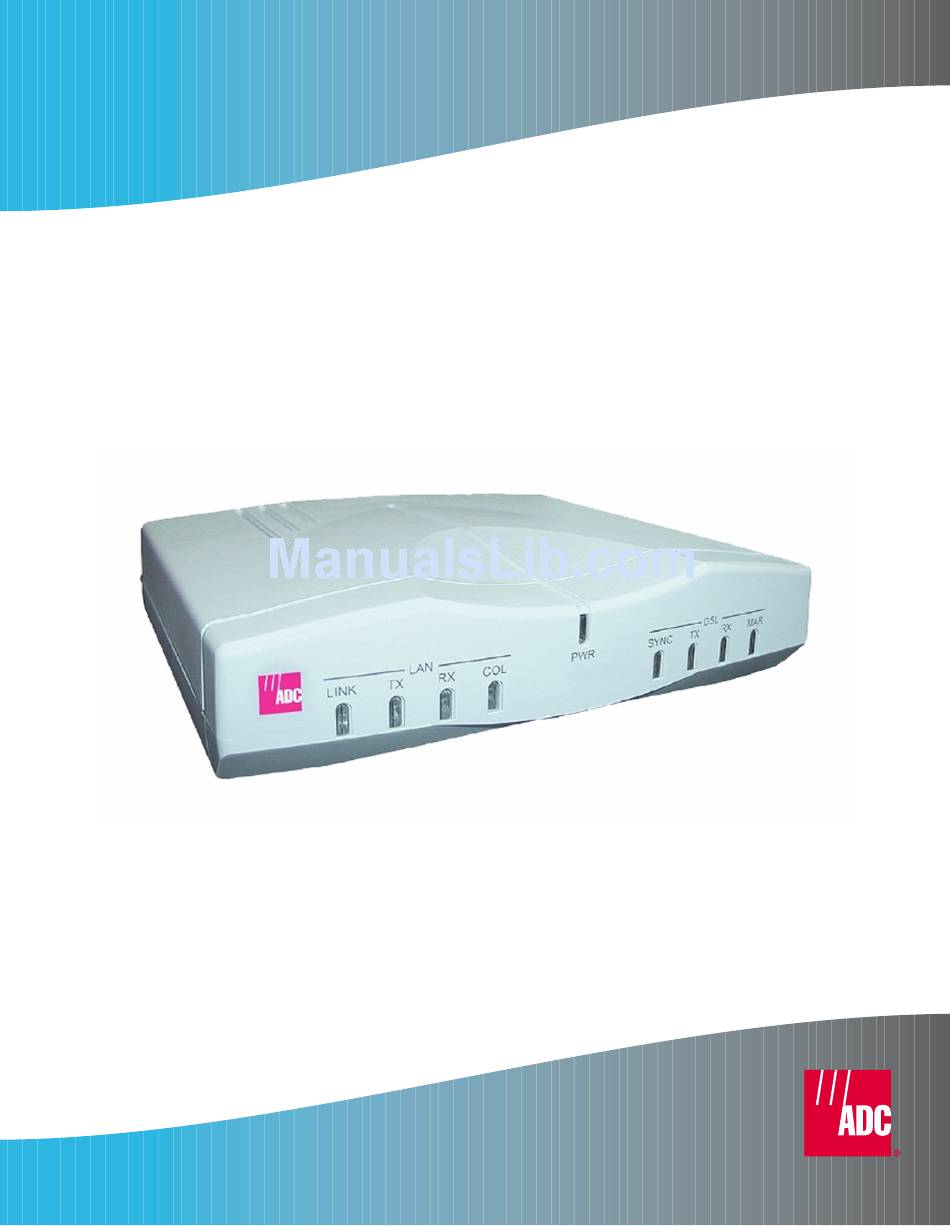

- Page 1 Megabit Modem Megabit Modem MM701F Installation Guide Version 1.x...
- Page 2 Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits, and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages.
-
Page 3: System Requirements
VERVIEW The MM701F is a versatile, high-speed modem that connects your LAN to one or more service providers. It employs ADSL technology for asymmetric rates up to 7.552 Mbps over single-pair wiring and allows for multiple management options including an easy to use Web-based interface. - Page 4 MDI-X when connecting to a network device such as a PC with an Ethernet NIC card with a MDI port. • MDI when connecting to a device such as a hub, switch, or router with a MDI-X port. Turn on your computer. MM701F Installation Guide...
- Page 5 ONFIGURE THE DDRESS Set up your PC on the same LAN IP subnet as the MM701F. The default LAN IP subnet for the modem is 10.0.0.0 with a subnet mask of 255.255.255.0. The modem uses 10.0.0.1 as its default LAN IP address. The following is an example of how to set up a Microsoft Windows 98 PC.
-
Page 6: Web Browser
Connections tab. Click LAN Settings to open the Local Area Network (LAN) Settings dialog. Verify that the Use a proxy server option is disabled (cleared), then click From the Internet Options dialog, click finish. MM701F Installation Guide... - Page 7 From the Web browser, type the of the modem. LAN IP address Press Enter . The Login page displays. From the Login page, type in the Username Password . The default username is admin the default password is password MM701F Installation Guide...
- Page 8 Once you have logged in to the modem, the page displays so that you can System Status configure the modem. To configure the modem, refer to the electronic copy of the MM701F User Manual on the MM701F documentation CD. MM701F Installation Guide...
- Page 9 ADC DSL Systems, Inc. 14402 Franklin Avenue Tustin, CA 92780 Tel: 714.832.9922 Fax: 714.832.9924 For Technical Assistance: 800.638.0031 714.730.3222 1191789 1196528 Rev A...
