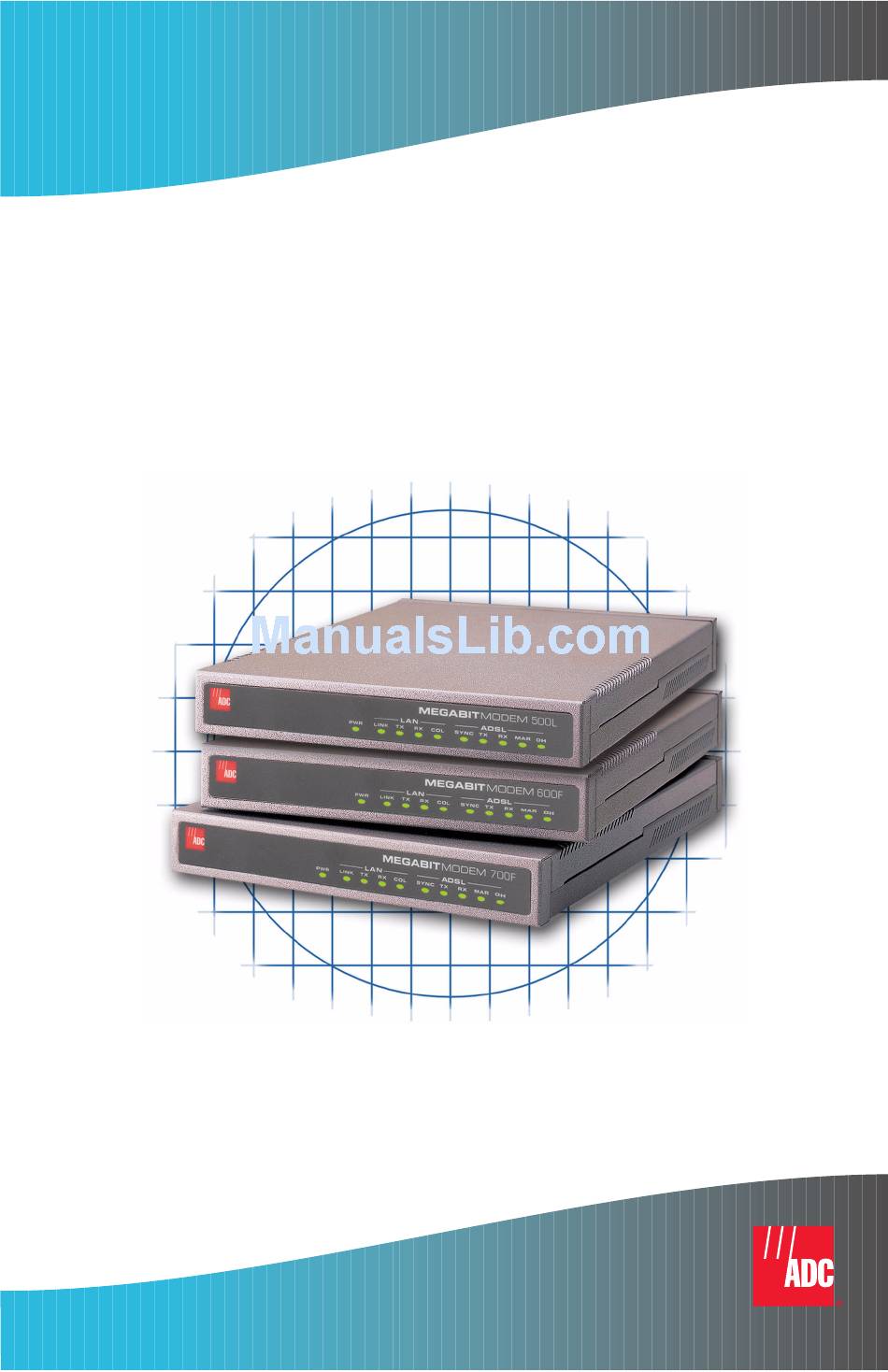

- Page 1 Megabit Modem Megabit Modem 500L, 600F, 700F NSTALLATION UIDE Catalog Number MMD4068I2 Issue 2...
-
Page 2: P Ackage C Ontents
VERVIEW There are several different scenarios to install the Megabit Modem. While one installation may require only the physical setup (pre-configured modems), another installation may require each of the steps mentioned in this document plus additional configuration specified by your service provider. In any case, you may use this guide as a basis to complete the installation. - Page 3 ONNECT THE ABLES Set the switch for the 10/100BASE-T port to: • MDI-X when connecting to a device with a MDI port such as a PC. • MDI when connecting to a device with a MDI-X port such as a hub, switch, repeater, or router.
- Page 4 PC’ IP A ONFIGURE THE DDRESS Configure your PC NIC card with an IP address on the same subnet as the modem. The following is an example of how to set up a ® PC with Microsoft Windows 98 PC. Open the Control Panel window by clicking Start , Settings, Control Panel...
- Page 5 ONFIGURE THE ROWSER The Web browser must be configured with its cache compared to the network document every time and its proxies disabled. The following is an example of how to make the configuration changes using Netscape Navigator 4.0: Open your Web browser. From the Edit menu, click Preferences From Category, select...
- Page 6 CCESS THE EGABIT ODEM With your Web browser open, enter the LAN IP address of the modem (Example: 192.168.0.1), then press Enter...
- Page 7 ONFIGURE THE EGABIT ODEM After you have set the LAN IP Address in Step 4, a Service Selection page appears in your Web browser. The Service Selection page may be one of the following pages shown below. To use the page shown to the right: Select a session from the Service Name drop down...
-
Page 8: Fcc Certification
ADC during the 90-day warranty period is, at ADC’s option, either (a) return of the price paid or (b) repair or replace of the software. ADC also warrants that, for a period of thirty (30) days from the date of purchase, the media on which software is stored will be free from material defects under normal use.
