Chapter 7: Implementing a Point-to-Point LAN Extension
Configure the Remote WAN
Step
1 Select WAN on the menu bar to access the WAN Configuration page
2 Select RFC 1483 bridged from the WAN Configuration page to display the following page
3 In the Session Name box, assign a name to this session.
4 In the Virtual Path ID (VPI 0 - 4,095) box, enter the Virtual Path ID. This must match the Virtual Path ID
of the Central-Office modem.
5 In the Virtual Channel ID (VCI 32 - 65,535) box, enter the Virtual Channel ID. This must match the
Virtual Channel ID of the Central-Office modem.
6 Click Apply.
7-4
Action

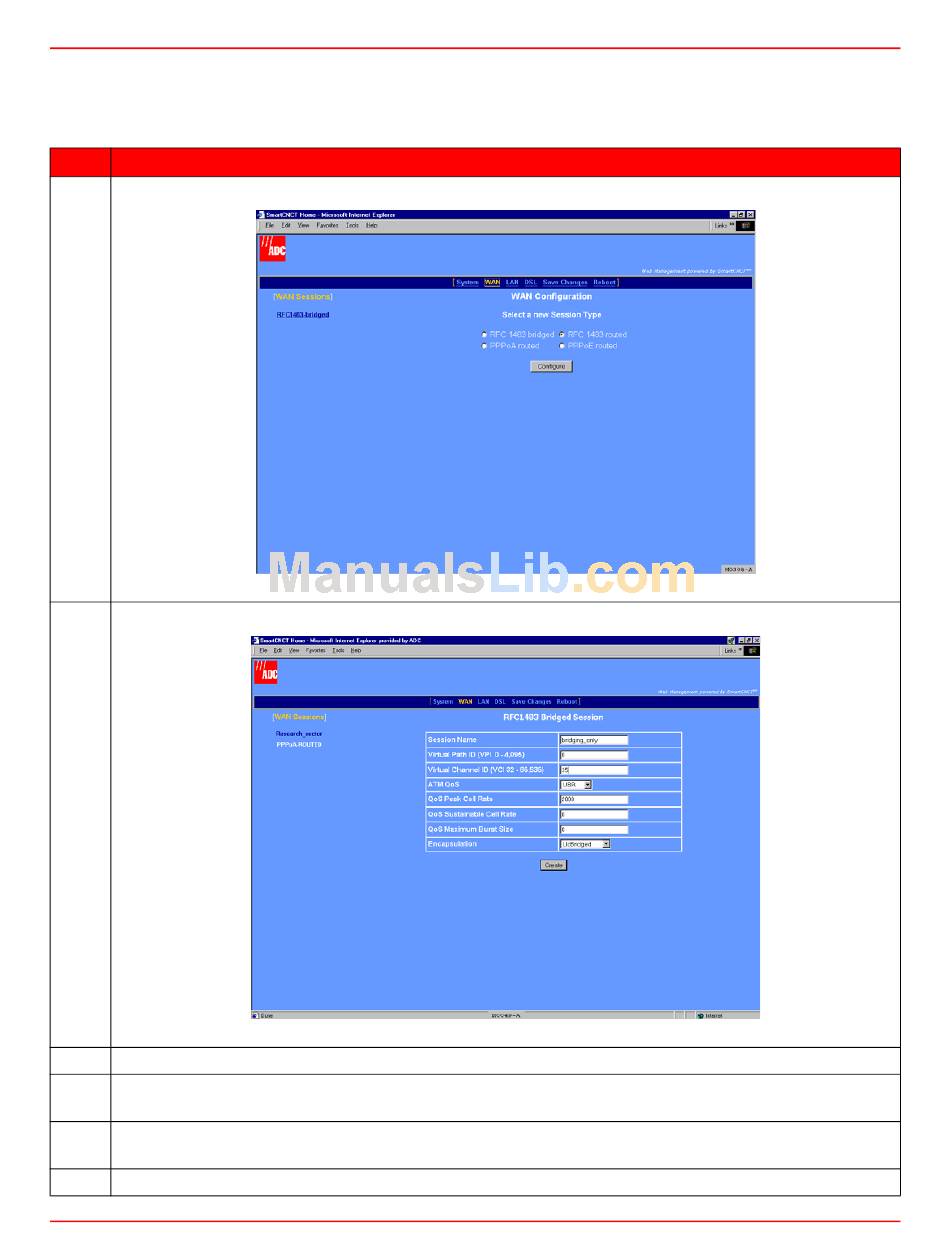

Figure 7-4. WAN Configuration
Figure 7-5. RFC1483 Bridged Session
April 14, 2006
(Figure 7-4).
(Figure
MM70xG2-UM-03
7-5).
