Configure the Central-Office WAN
Step
1 Select WAN on the menu bar to access the WAN Configuration page
2 Select RFC 1483 bridged from the WAN Configuration page to display the following page
3 In the Session Name box, assign a name to this session (can be the same as the Remote modem).
4 In the Virtual Path ID (VPI 0 - 4,095) box, enter the Virtual Path ID. This must match the Virtual Path ID
of the Remote modem.
5 In the Virtual Channel ID (VCI 32 - 65,535) box, enter the Virtual Channel ID. This must match the
Virtual Channel ID of the Remote modem.
6 Click Apply.
MM70xG2-UM-03
Chapter 7: Implementing a Point-to-Point LAN Extension
Action

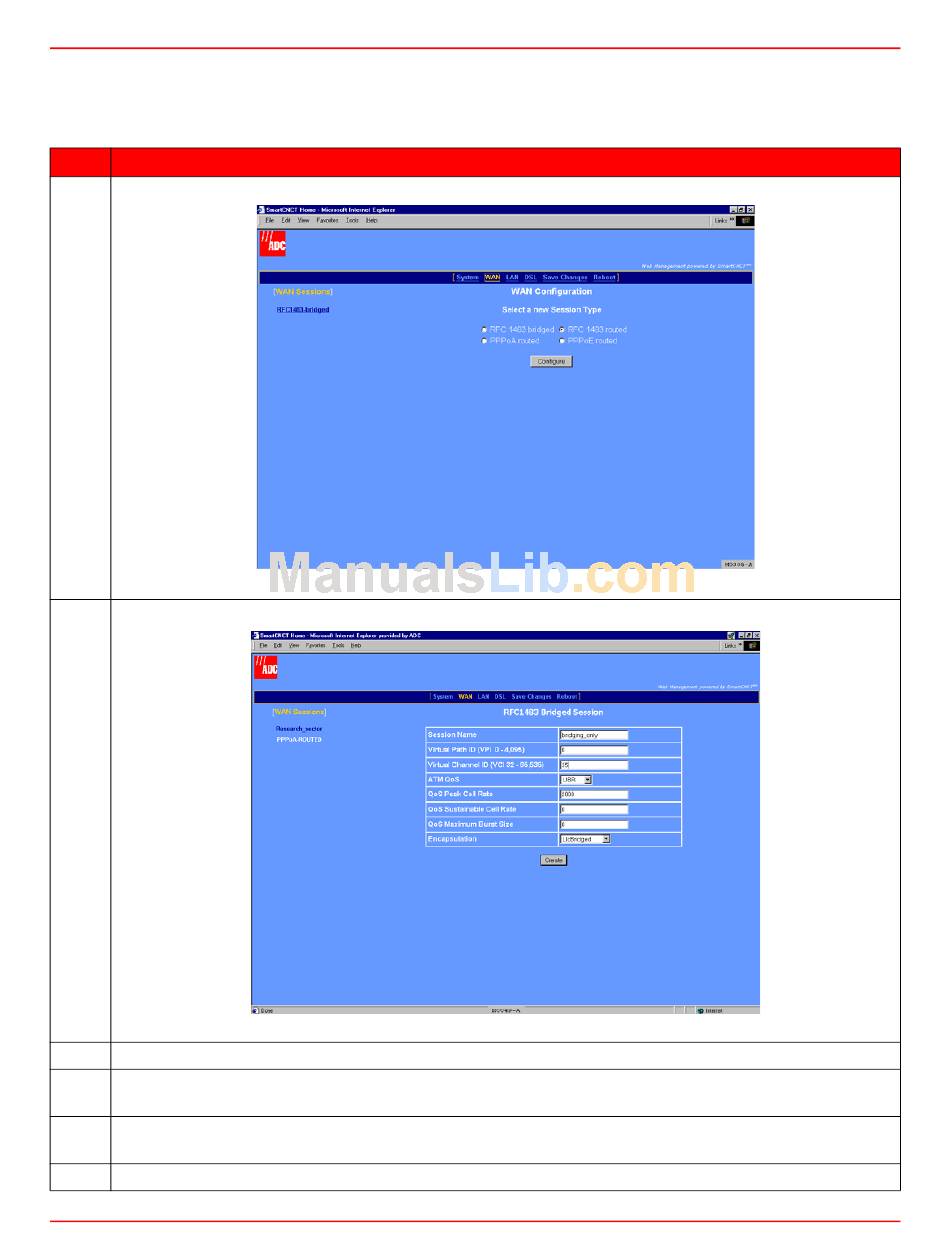

Figure 7-9. WAN Configuration
Figure 7-10. RFC1483 Bridged Session
(Figure 7-9).
(Figure 7-10).
