ONNECT ABLES
Install cables for the Ethernet port (see
Indications" on page 1-5.

Connect the 10/100Base-T Port

Set the modem MDI/MDI-X switch for the 10/100Base-T port to allow the modem to connect directly to other network
devices such as a PC, hub, switch, or router.
Step
1 Set the modem MDI/MDI-X switch (see
• MDI-X when connecting to a device such as a PC Ethernet NIC card that has an MDI port
• MDI when connecting to a device such as a hub, switch, or router that have MDI-X ports
Note:
full-duplex for the transmission direction(s). If you need to change the modem LAN port setting
to match the NIC, follow the procedures in
default setting).
MM70xG2-UM-03
"Connect the 10/100Base-T Port"
Figure

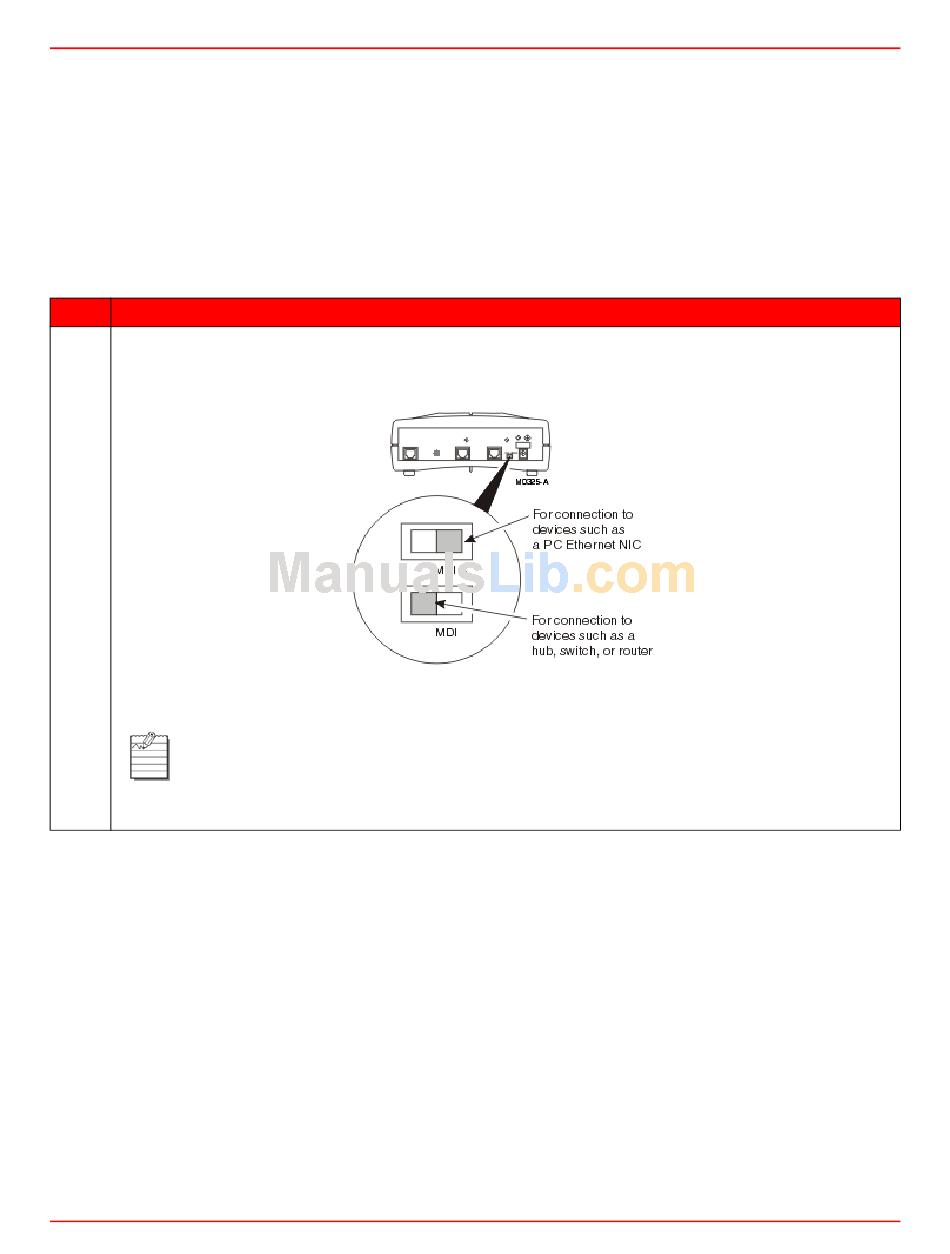

Figure 1-2. Set the MDI/MDI-X Switch
