Figure 29. Ez80L92 Module Schematic Diagram, #8 Of 9-Power Supply - ZiLOG eZ80L92 User Manual

V3.3
V3.3
GND
GND
GND
Input: VDD(=V3.3) = 3.3V ±5%
Power: Pmax = 1.6W
Ptyp = 0.4W
Current: Imax = 200mA (IrDA not in use)
Imax = 460mA (IrDA in use)
Ityp = 100mA
PCB1
E-NET Module Rev.B
98Cxxxx-xxx
UM012906-0103
V3.3
no power supply on board!

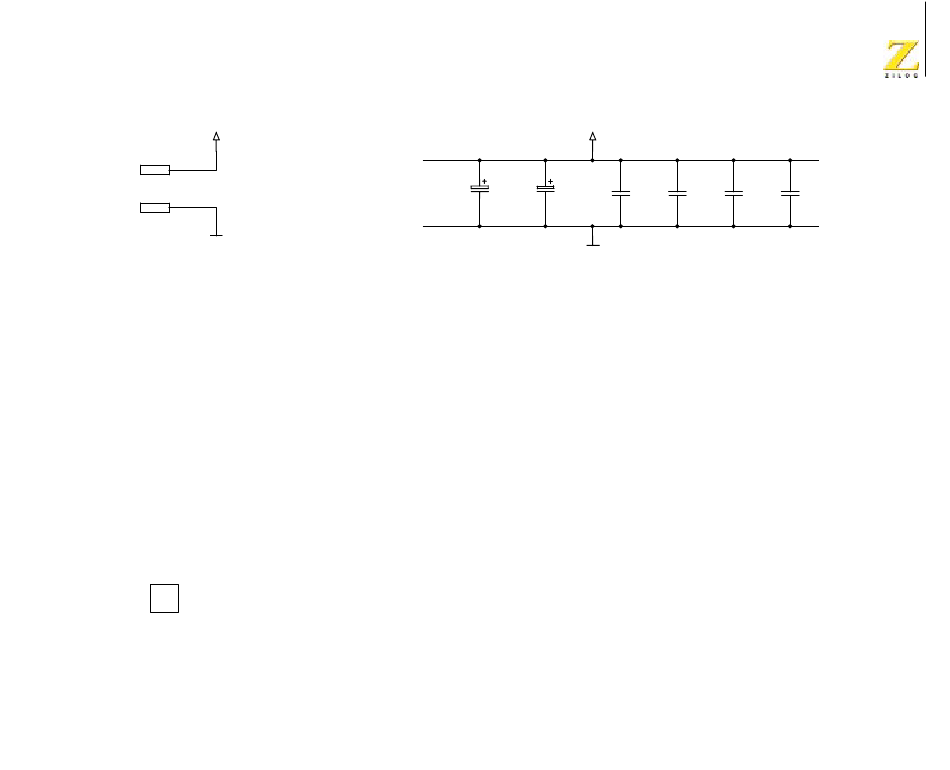

Figure 29. eZ80L92 Module Schematic Diagram, #8 of 9—Power Supply
V3.3
C1 C2
47uF 47uF
TAJC TAJC
GND
PRELIMINARY
eZ80L92 Development Kit
common power plane
C3 C4 C5 C6
1nF 100nF 1nF 100nF
common ground plane
Schematic Diagrams
User Manual
75
