eZ80L92 Development Kit
User Manual
6
The structures of the eZ80
Module are illustrated in the
®
eZ80 Development Platform Overview PRELIMINARY
Note: Key to blocks A–C.
A. eZ80L92 Module interfaces.
B. CPU and memory.
C. Ethernet connection.
D. IrDA transceiver.

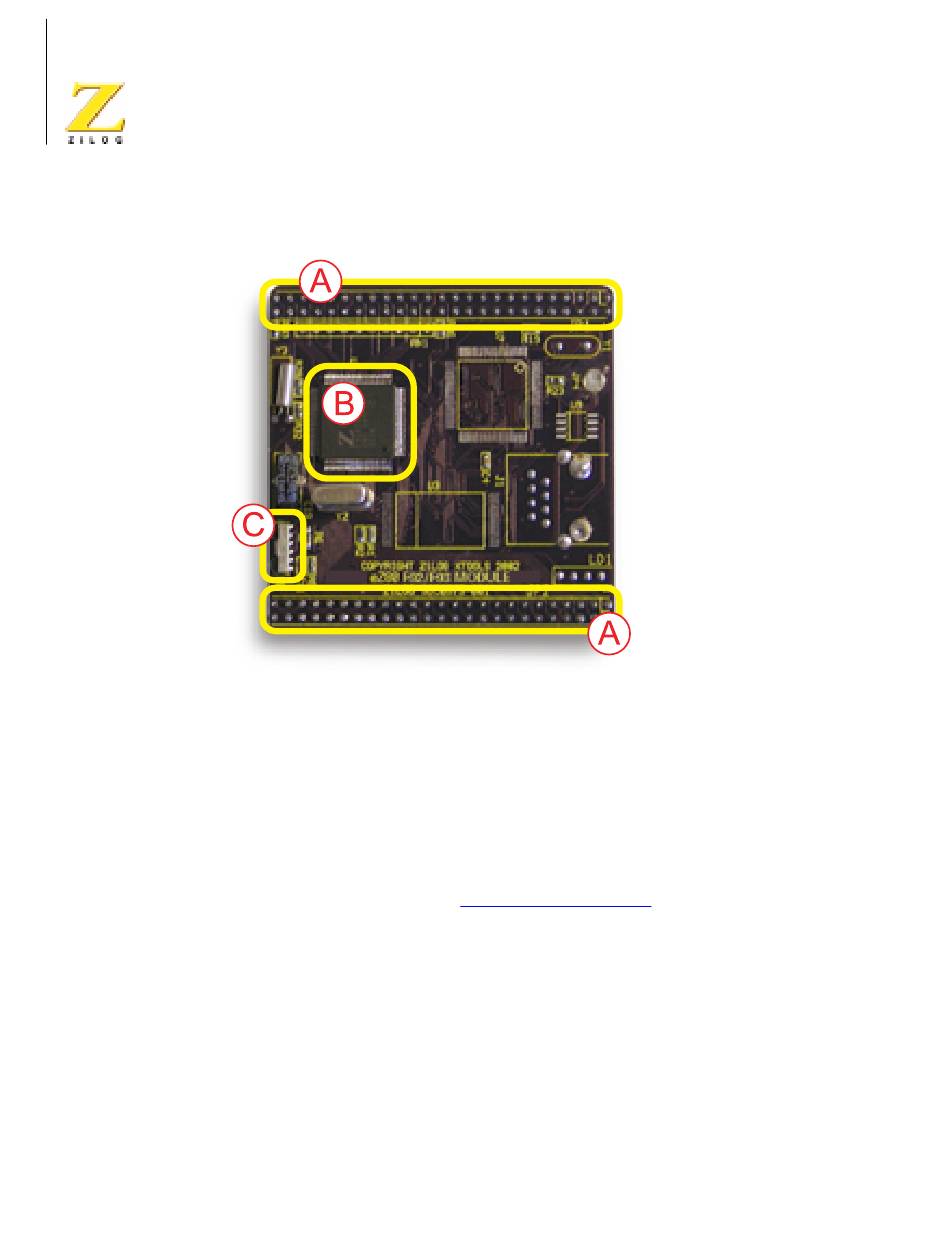

Figure 3. The eZ80L92 Module

®
Development Platform and the eZ80L92
Schematic Diagrams starting on page 63.
UM012906-0103
