3. Select the plug configuration appropriate for your location, and insert
4. Push the new plug configuration down until it snaps into place, as
UM012906-0103
it into the slot formerly occupied by the previous plug configuration.
indicated in Figure 16.

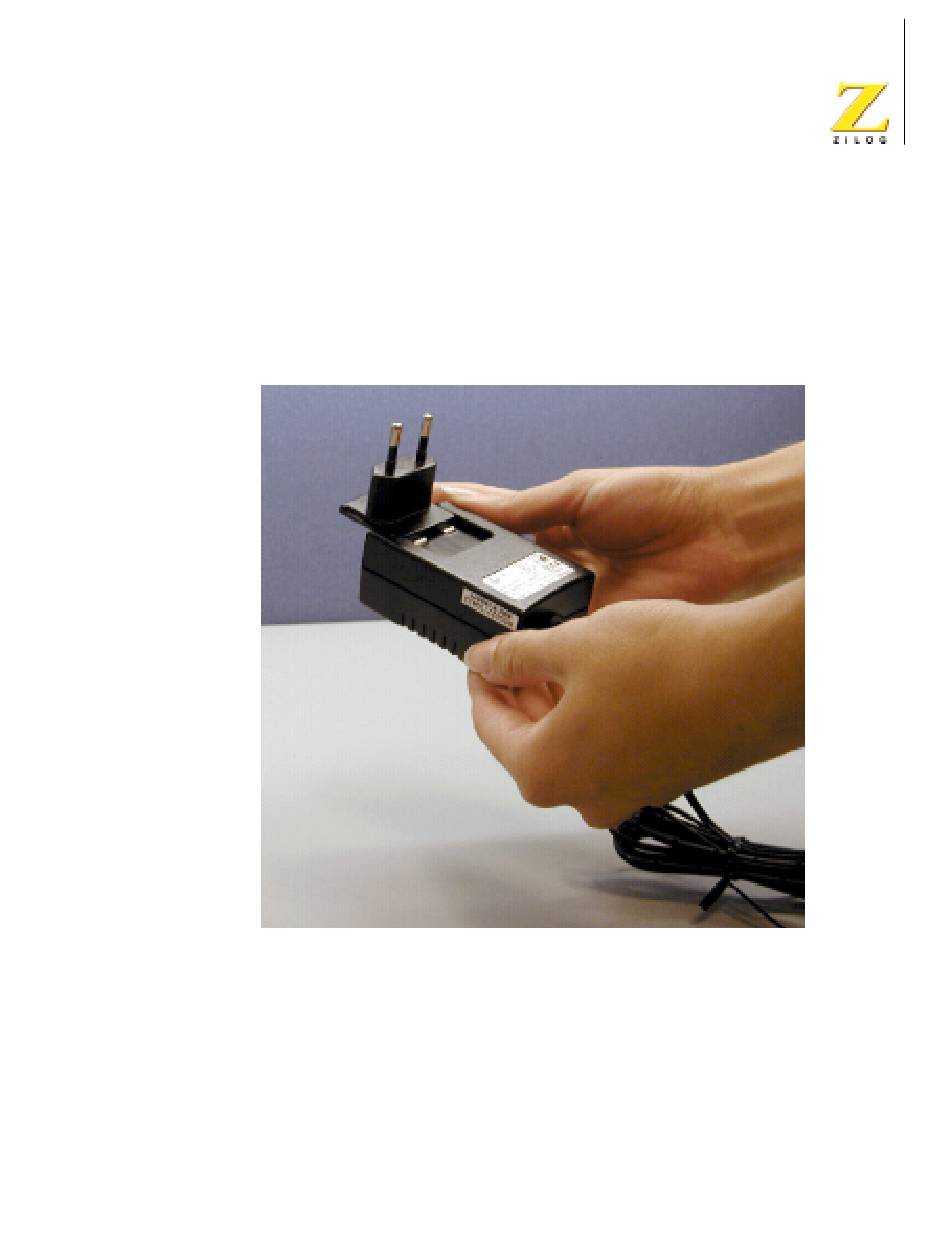

Figure 16. Inserting a New Plug Configuration

PRELIMINARY
eZ80L92 Development Kit
User Manual
Changing the Power Supply Plug
55
