This function can be used to verify that the station is able to correctly receive a DMX signal from
another source.
To return to the regular Self Test functions, simply unplug or remove the DMX Input source.
Testing the IR Receiver
Whenever the station receives any valid IR transmissions
from an RC5 compatible remote (such as the SceneStation
Programmer's Remote), the buttons will display the RC5
System Code being received from the remote.
When received, the 5-bit RC5 system code appears on the
LEDs. "1" bits in the code are shown as a Bright White LED
and "0" bits in the code are shown as a Dim White LED.
Button 1 shows the first bit and Button 5 shows the fifth bit.

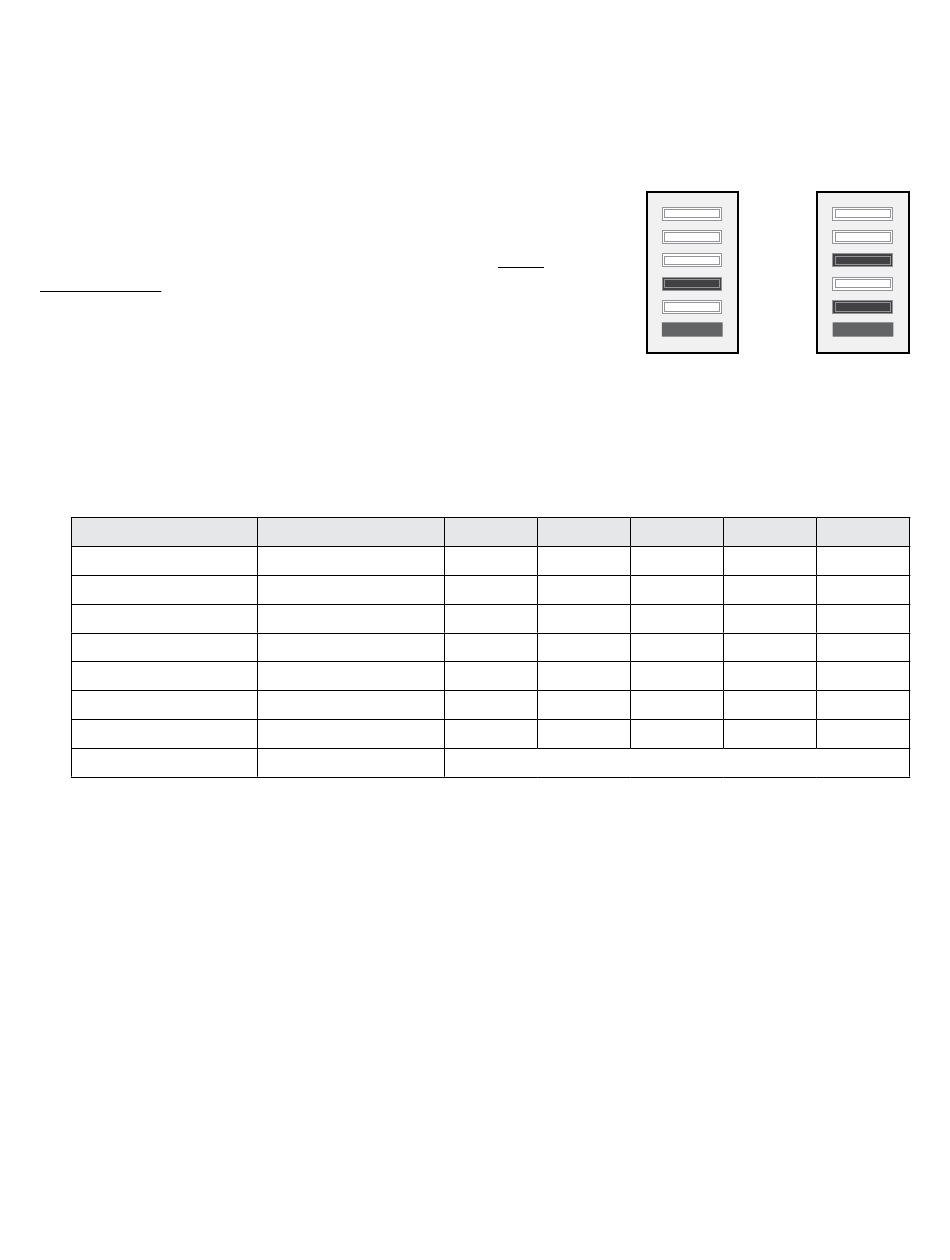

The following table shows some of the possible bit combina-
tions and how it translates to the SceneStation remote code
being received from the remote:
SceneStation Code
Remote Code 1
Remote Code 2
Remote Code 3
Remote Code 4
Remote Code 5
Remote Code 6
Direct Preset Code
N/A
Note: Don't press the CANCEL button on the remote while testing IR codes, as this button will exit
the Self Test mode.
Additionally, whenever the station receives IR transmissions from the User's Remote, the Button ID
number received will appear as a binary code on the display.
Exiting the Self Test Mode
There are three ways to exit the Self Test mode:
Press the Top and Bottom buttons on the station simultaneously.
•
Press CANCEL on the remote control.
•
Remove power from the station and then turn it back on.
•
SceneStation Installation and Programming Guide
RC5 System Code Button 1
$1D
$1E
$1F
$1A
$1B
$1C
$19
All Others
Remote Code 1
RC5 Code $1D
Button 2 Button 3
White White
White White
White White
White White
White White
White White
White White
(all other combinations)
Remote Code 4
RC5 Code $1A
Button 4 Button 5
White -
White White
White White
- White
- White
White -
- -
Appendix D: Self Test Mode | 87
White
-
White
-
White
-
White
