Using the Level Editor

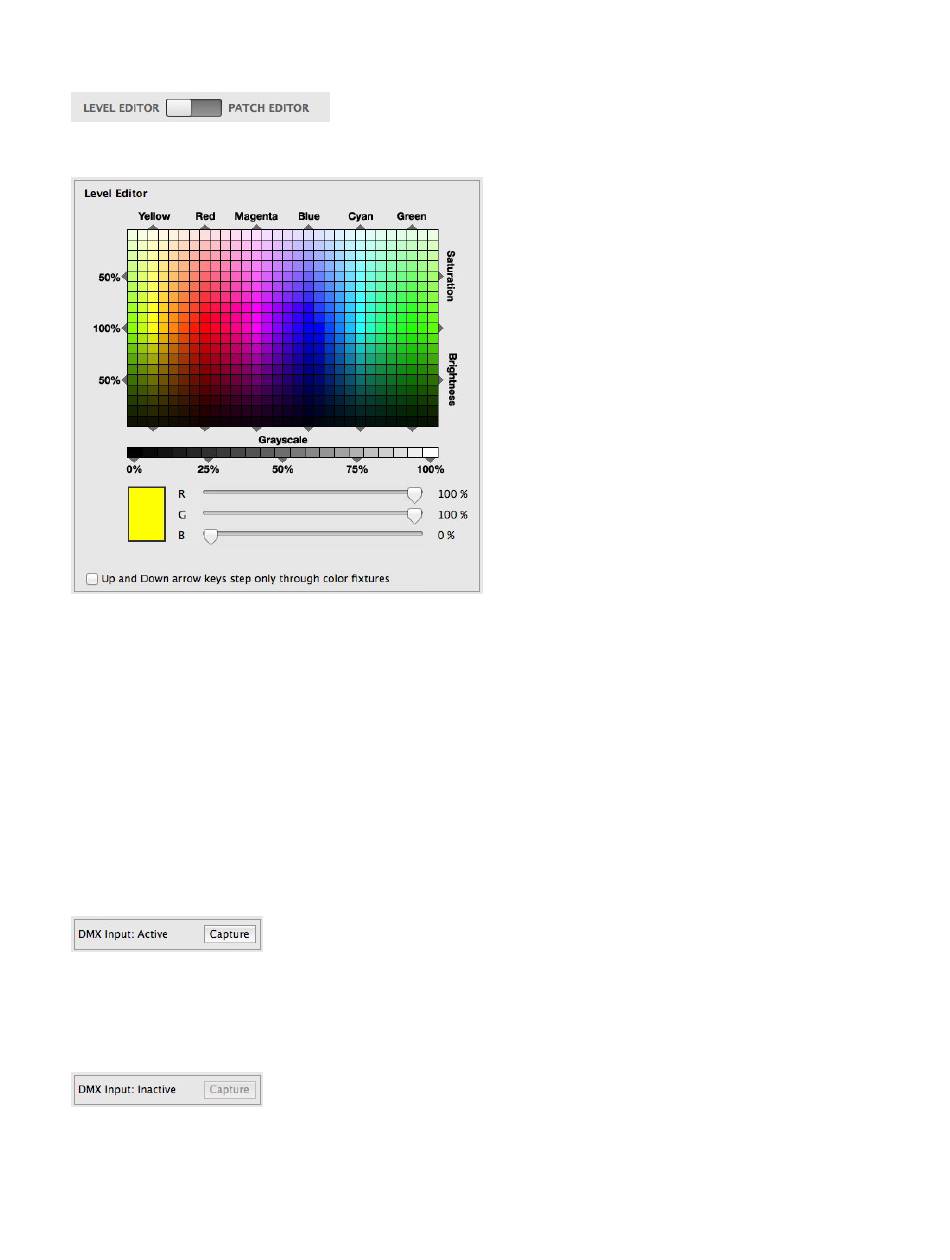

To view the Level Editor, make sure the toggle button is switched to the Level Editor setting:
The Level Editor will appear:
Depending on the selected channels or fixtures, different controls will appear in this pane.
As shown above, if a fixture that includes RGB, RGBA, RGBW or similar color capability is
selected, a graphical color picker becomes available.

Capturing DMX Input

If you are editing a wirelessly connected station, you can use the DMX Input control to capture the
DMX Input into a preset.
First select the desired preset, and then press Capture:
The current DMX scene coming from the external controller will be captured and the channel
levels will appear in the preset.
If the connected station does not have a DMX Input signal, the control will display "Inactive":
