Left Switch Bank - Interactive Technologies SceneStation User Manual

The function of each of the switches are described below:
ON
1 2 3 4 5 6 7 8

Left Switch Bank

1: DMX Pull-Up - Enables a weak pull-up resistor on the DMX Data + line. By default, this
•
switch should be "ON". This feature can by turned off if some other DMX source on the
line has its own pull-up resistor installed.
2: DMX Pull-Down - Enables a weak pull-down resistor on the DMX Data - line. By default,
•
this switch should be "ON". This feature can by turned off if some other DMX source on
the line has its own pull-down resistor installed.
3: DMX Terminate - Enables a DMX termination resistor on the DMX port. This should only
•
be necessary when the SceneStation is at the end of a long line of DMX devices receiving
DMX data from another source. Normally, this is not required and should remain "Off".
4: DMX Output Only - When turned "On", this switch disables the bidirectional DMX data
•
port, making SceneStation only able to output DMX. This function can be enabled if a
special circumstance requires that the station ignore DMX input. Normally, this switch
should remain "Off".
5: Reserved - This switch is currently unused. Leave in the "Off" position.
•
6: Reserved - This switch is currently unused. Leave in the "Off" position.
•
7: Reserved - This switch is currently unused. Leave in the "Off" position.
•
8: Reserved - This switch is currently unused. Leave in the "Off" position.
•
12 | Hardware Configuration

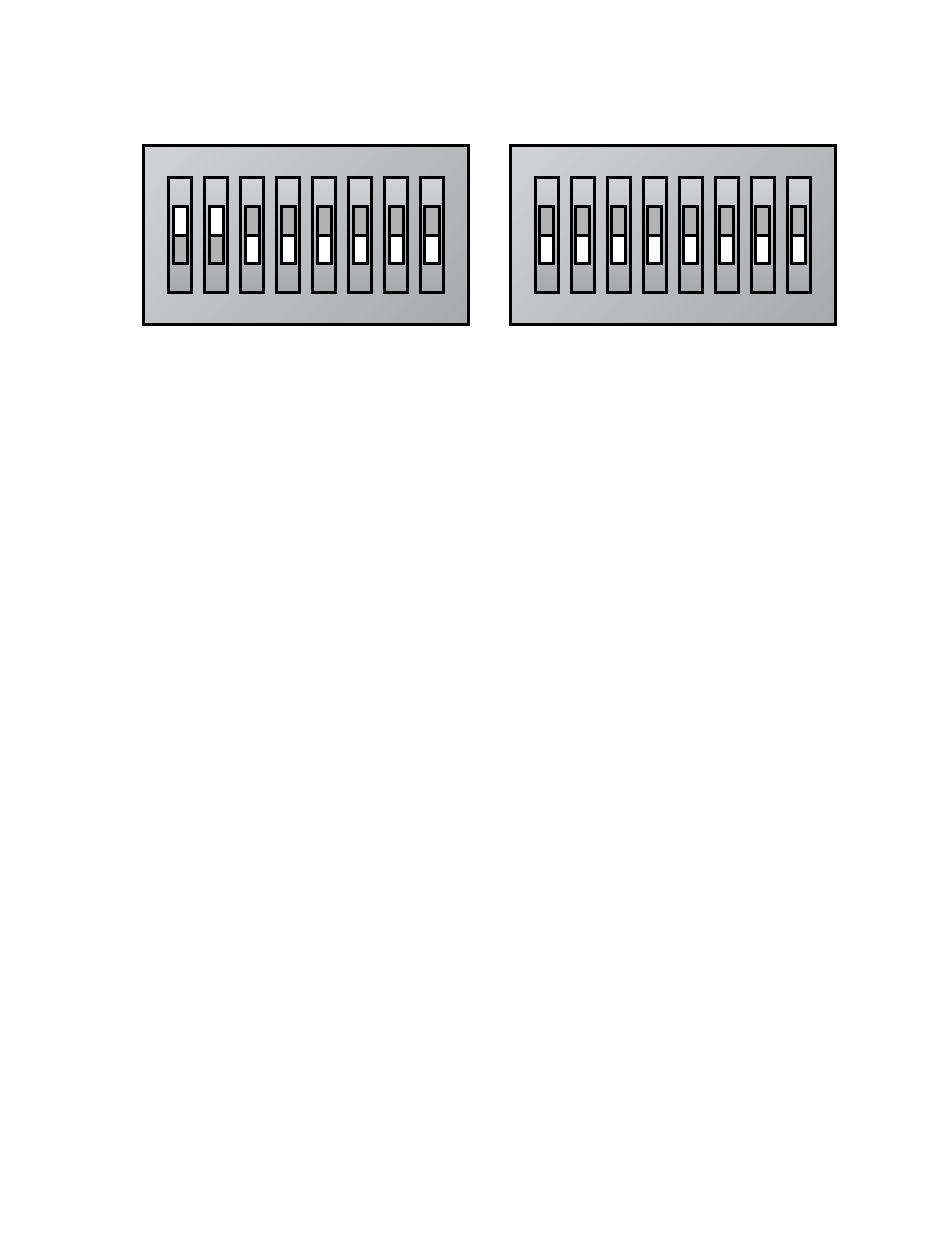

Left Switch Bank Right Switch Bank
ON
1 2 3 4 5 6 7 8
