Appendix C: Determining Firmware Version

Sometimes its useful to determine the version of the firmware in a SceneStation. There are two ways
to determine the firmware version in a station:
Use the SceneStation Studio software to display the firmware version
•
Display the firmware version on the station LEDs
•
Viewing the Firmware Version in SceneStation Studio
Simply launch the SceneStation Studio software on your PC or Mac computer with the SceneStation
USB dongle attached. All wireless stations within range will appear in the station list, showing the
version of firmware for each station.
Displaying the Firmware Version on the stations LEDs
To display the firmware version on a non-wireless station, or without using the SceneStation Studio
software, you can trigger the firmware display on the station's LED indicators.
This display can be activated in one of two ways:
When the station powers up, hold Button 1 down. Continue to hold down this button until
•
after the startup "rainbow pattern" sequence has finished and the station enters the
Firmware Version display mode. Button 1 is the farthest from the IR window.
The Firmware Version display function can be activated at any time using the IR remote. Press
•
EDIT + OPTION + 961.
When activated, this option displays the station's Firmware Version using the color of the LED

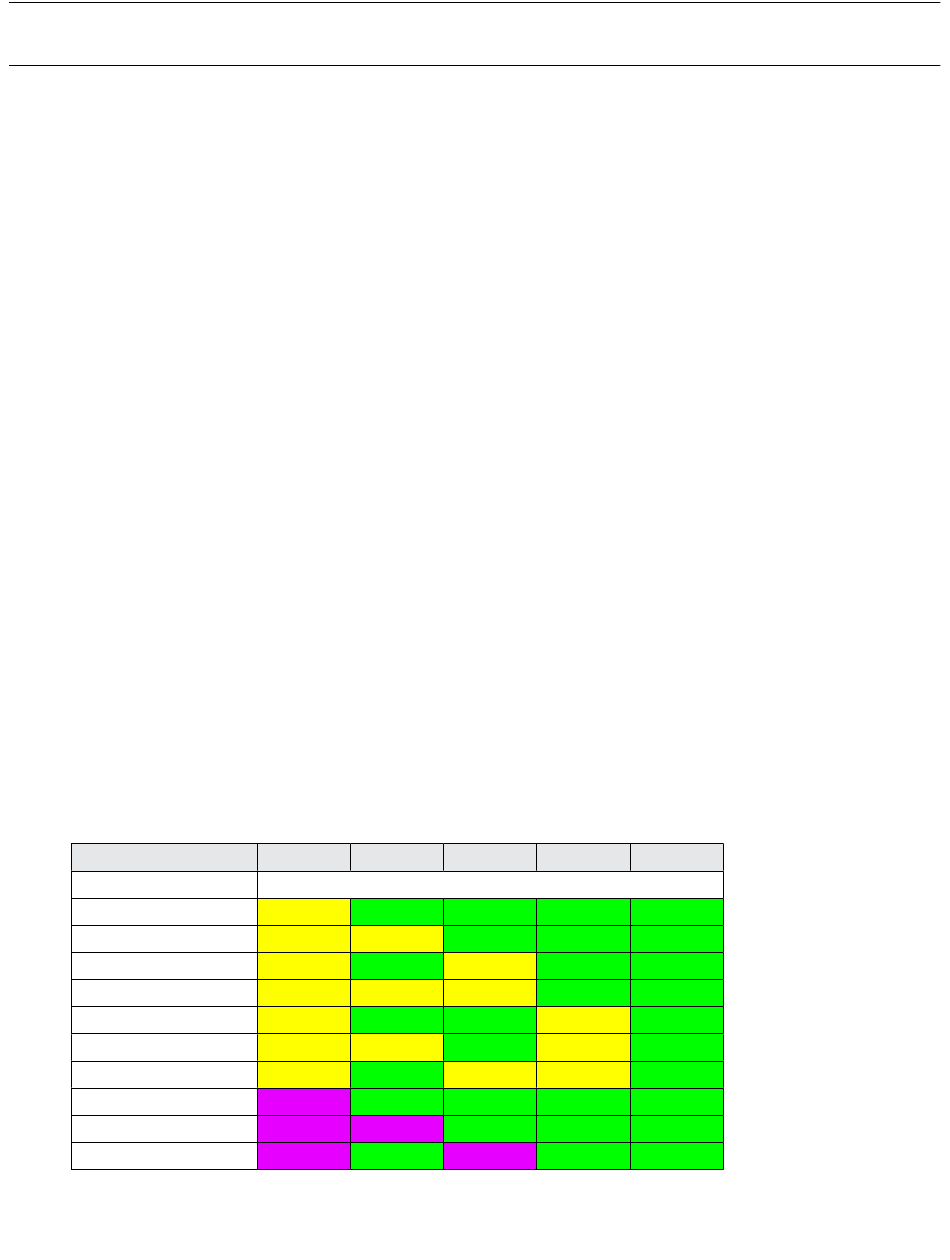

indicators for each of the buttons. The following table shows the color combinations for various
firmware versions (Button 1 is the farthest from the IR window):
Firmware Version
Prior to 2.0.0
2.0.0
2.0.1
2.1.0
2.1.2
2.2.0
2.2.1
2.3.0
3.0.0
3.0.1
3.0.2
SceneStation Installation and Programming Guide
Button 1 Button 2
(Feature not available prior to version 2.0.0)
Yellow Green
Yellow Yellow
Yellow Green
Yellow Yellow
Yellow Green
Yellow Yellow
Yellow Green
Purple Green
Purple Purple
Purple Green
Button 3 Button 4
Green Green
Green Green
Yellow Green
Yellow Green
Green Yellow
Green Yellow
Yellow Yellow
Green Green
Green Green
Purple Green
Appendix C: Determining Firmware Version | 83
Button 5
Green
Green
Green
Green
Green
Green
Green
Green
Green
Green
