Power-On Preset; Enable Grandmaster; Enable Front-Panel Buttons - Interactive Technologies SceneStation User Manual

Finally, when two or more stations are programmed to wirelessly share button presses and indica-
tor feedback, they must be using the same PIN number. If two stations have two different PIN
numbers, they will not be able to communicate with each other.
To remove or disable the PIN number feature, clear this field or set the PIN number to zero (0).

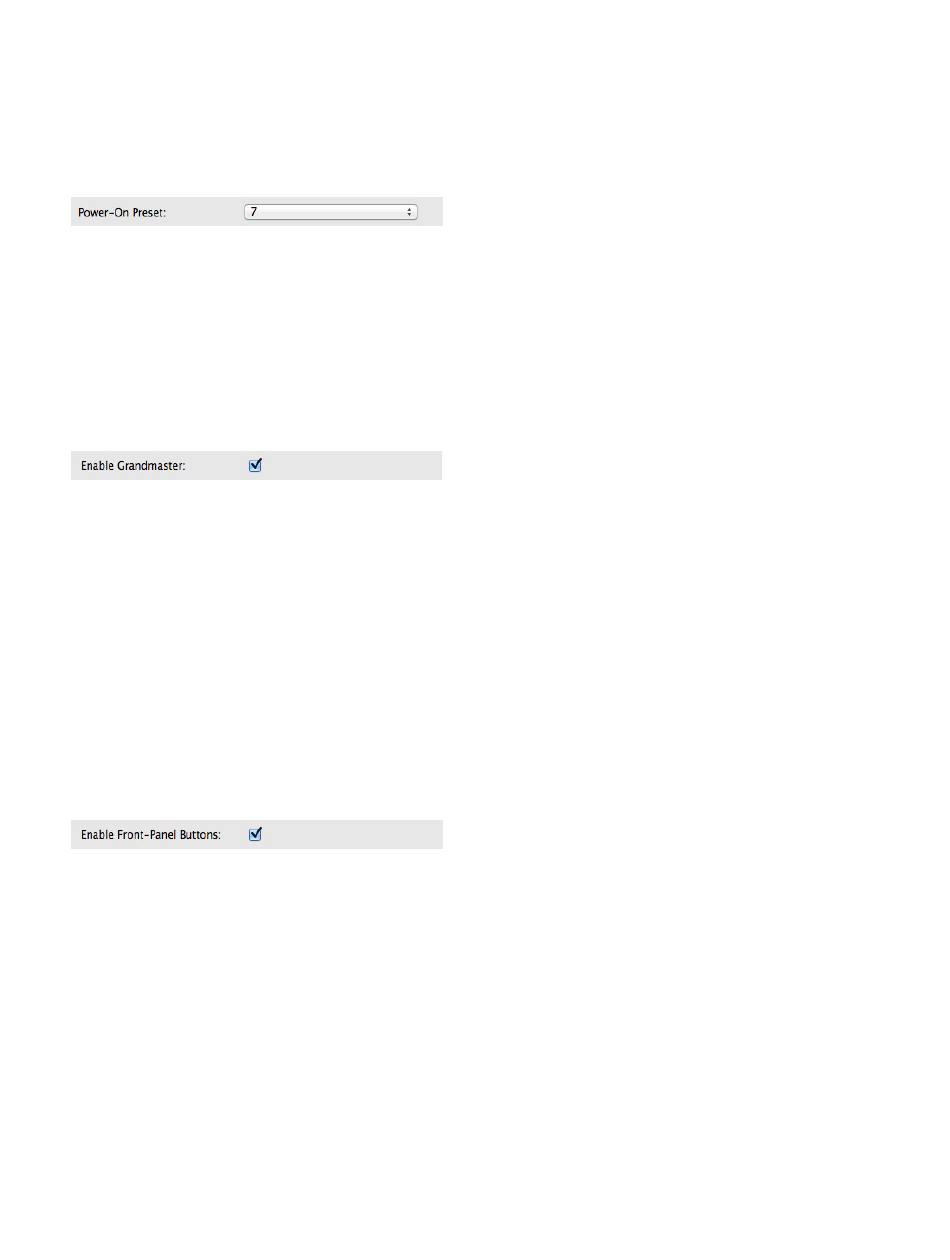

Power-On Preset

When a station is powered on, it can automatically activate a preset. This setting allows any of
the 64 available presets in the station to be activated on power-on, or it can activate the same
preset that was active before loosing power.
By default, "Restore Previous" is chosen, which causes the station to restore the preset that was
active before the most recent power loss.

Enable Grandmaster

The station's "Grandmaster" is the overall intensity level of the DMX channel values being output
from the station. The Grandmaster can be adjusted from 0 to 100% by using the IR remote
control. Normally, the Grandmaster is set to 100%. When a level lower than 100% is chosen,
all of the DMX channel values are scaled down by that percentage before being output by the
station.
If this option is checked, the Grandmaster is functional and a user with either the User's or
Programmer's remote can raise and lower the brightness level of the station.
If this option is not checked, the Grandmaster function is disabled and the station always outputs
its presets at 100%.

Enable Front-Panel Buttons

If this option is checked, the front-panel buttons on the station are enabled and work normally
when pressed. If this option is not checked, the buttons will be locked.
When a user presses a locked button on the front of the station, all buttons briefly flash Red and
no action is taken by the station.
24 | Using SceneStation Studio SceneStation Installation and Programming Guide
