Edit LED Indicators

Each preset contains information for the
colors the LED indicator should appear
when the preset is either active or inactive
on a button.
Press the INDICATOR button to switch
to the Edit Indicator mode. In this mode,
three LEDs will illuminate, showing the
various states of the indicator.
The Top LED shows the "Active" color
of the preset, the Center LED shows
the "Inactive" color of the preset and the
Bottom LED shows the flashing pattern (if
selected) of the preset.
When you enter the Edit Indicator mode,
you will be editing the Active Color.
Use the RIGHT and LEFT arrow buttons to change the color of the indicator. There are 20 colors
to choose from.
Use the UP and DOWN arrow buttons to raise and lower the brightness of the color. There are 4
brightness levels for each of the 20 colors.
To change between button states, use the number buttons 1, 2 and 3:
Press 1 to switch to editing the Active Color.
Press 2 to switch to editing the Inactive Color.
Press 3 to switch to editing the Flash Pattern.
While editing the Flash Pattern, the arrow buttons select one of five different flash patterns: Slow,
Medium, Fast, Wink and None.
When finished setting the Indicator property of a preset, you can either press ENTER to save the
changes and return to the station's Idle Mode, or you can press a different property button (Fade,
Follow, Loop, Repeat, etc.) to enter the value of another property.
58 | Using the Programmer's Remote

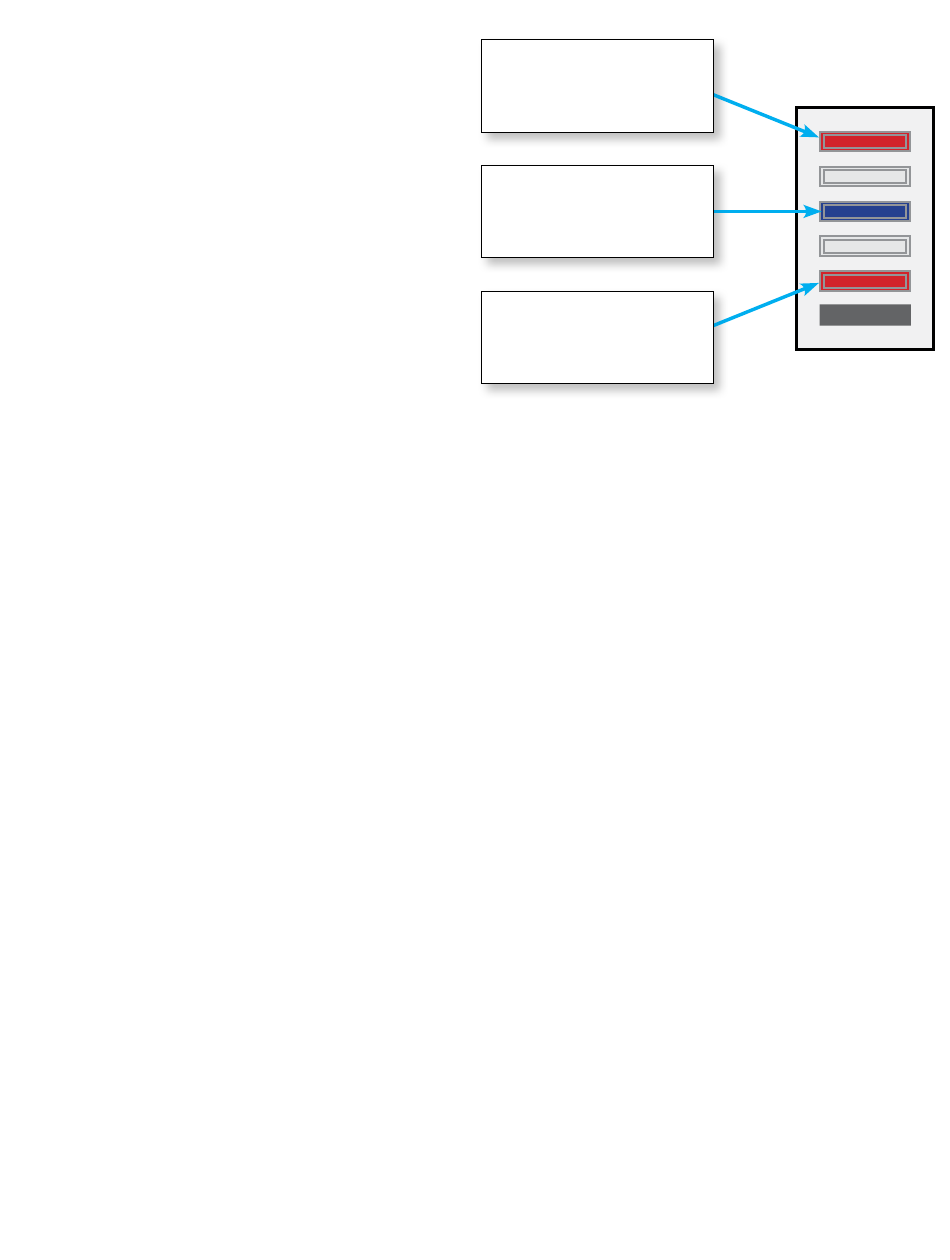

Top LED - Shows the
"Active" color of the
preset.
Center LED - Shows
the "Inactive" color of
the preset.
Bottom LED - Shows
the flashing pattern for
the preset while active.
