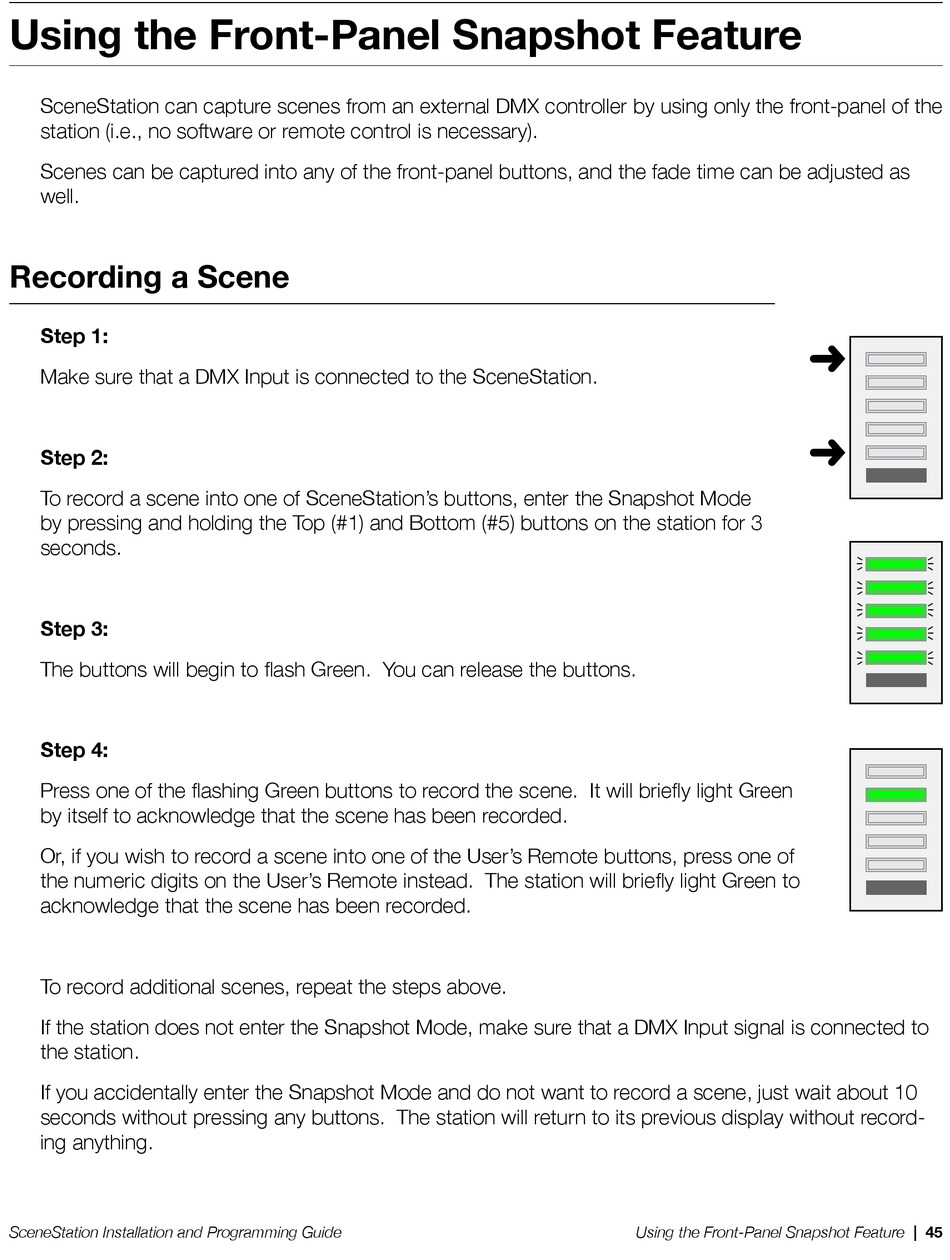

Using the Front-Panel Snapshot Feature

SceneStation can capture scenes from an external DMX controller by using only the front-panel of the
station (i.e., no software or remote control is necessary).
Scenes can be captured into any of the front-panel buttons, and the fade time can be adjusted as
well.

Recording a Scene

Step 1:
Make sure that a DMX Input is connected to the SceneStation.
Step 2:
To record a scene into one of SceneStation's buttons, enter the Snapshot Mode
by pressing and holding the Top (#1) and Bottom (#5) buttons on the station for 3
seconds.
Step 3:
The buttons will begin to flash Green. You can release the buttons.
Step 4:
Press one of the flashing Green buttons to record the scene. It will briefly light Green
by itself to acknowledge that the scene has been recorded.
Or, if you wish to record a scene into one of the User's Remote buttons, press one of
the numeric digits on the User's Remote instead. The station will briefly light Green to
acknowledge that the scene has been recorded.
To record additional scenes, repeat the steps above.
If the station does not enter the Snapshot Mode, make sure that a DMX Input signal is connected to
the station.
If you accidentally enter the Snapshot Mode and do not want to record a scene, just wait about 10
seconds without pressing any buttons. The station will return to its previous display without record-
ing anything.
