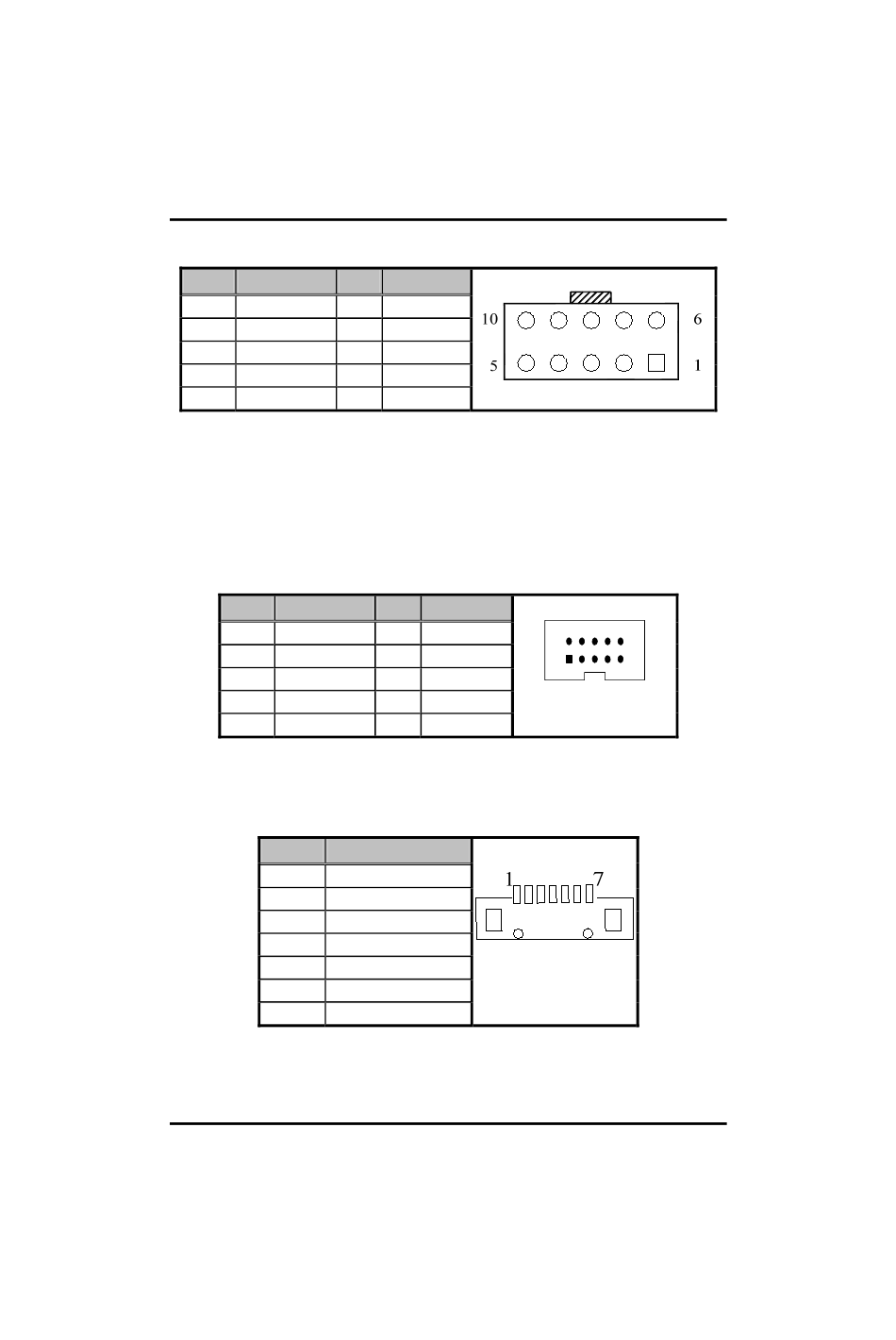

2.4.1 Power Connector: CN1
Pin Signal
1 PS_ON
3 GND
N.C.
5
7 +5V
9 -12V
2.4.2 Digital I/O Port (DIO) Connector: CN3
The board is equipped a digital I/O connector CN5 that meets
requirements for a system customary automation control. The digital
I/O can be configured to control cash drawers, sense warning signals
from an Uninterrupted Power System (UPS), or perform store security
control. The digital I/O is controlled via software programming.
Pin Signal
1 Out-0
3 Out-1
5 Out-2
7 Out-3
9 Out-4
2.4.3 LVDS Blacklight Connector: CN5
It is a video connector for working LVDS interface backlight.
PIN
1 12V
2 12V
3 5V
4 L_BLKEN
5 GND
6 GND
7 GND
12
Pin Signal
2 GND
4 +12V
6 +SB5V
8 +5V
10 GND
Pin Signal
2 In-0
4 In-1
6 In-2
8 GND
10 GND
Signal
CN1
CN3
2
1
CN5
Jumpers and Connectors
