SBC84831 All-In-One Capa Board User's Manual

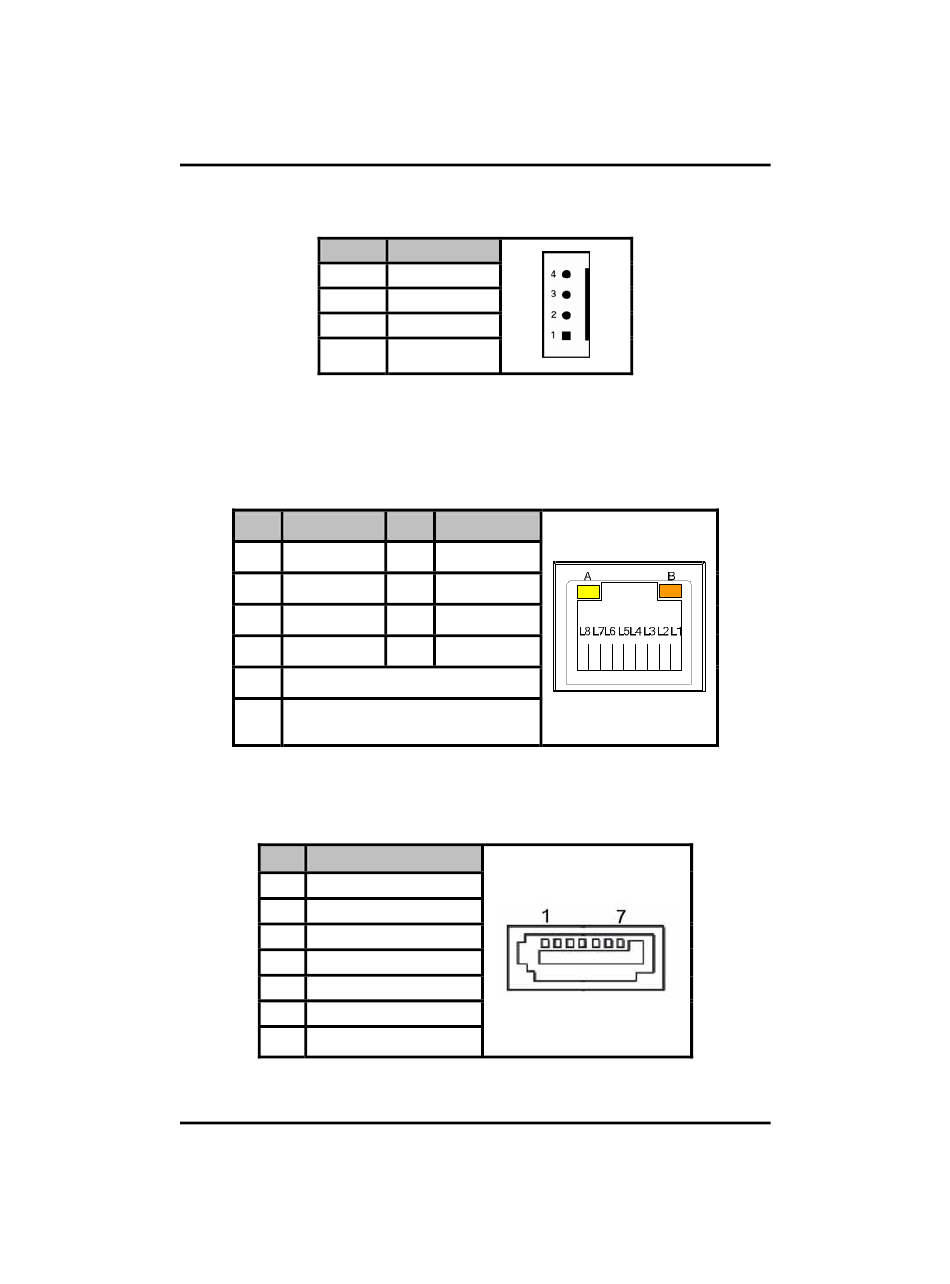

2.4.13 Power output Connector (CN10)

Pin
1
2
3
4

2.4.14 Ethernet Connectors (LAN1, LAN2)

The RJ-45 connector is for Ethernet. To connect the board to a
1000/100/10 Base-T hub, just plug one end of the cable into connector
and connect the other end (phone jack) to a 1000/100/10-Base-T hub.
Pin Signal
L1 MDI0+
L2 MDI0-
L3 MDI1+
L4 MDI2+
A Active LED (Yellow)
100 LAN LED (Green)/ 1000 LAN
B
LED (Orange)

2.4.15 SATA Connectors (SATA1, SATA2)

These SATA connectors are for high-speed SATA interface ports and
they can be connected to hard disk devices.
Pin
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
26
Signal
+12V
GND
GND
+5V
Pin Signal
L5 MDI2-
L6
MDI1-
L7 MDI3+
L8 MDI3-
Signal
Jumpers and Connectors
