SBC84830 Series All-In-One ECX Board User's Manual

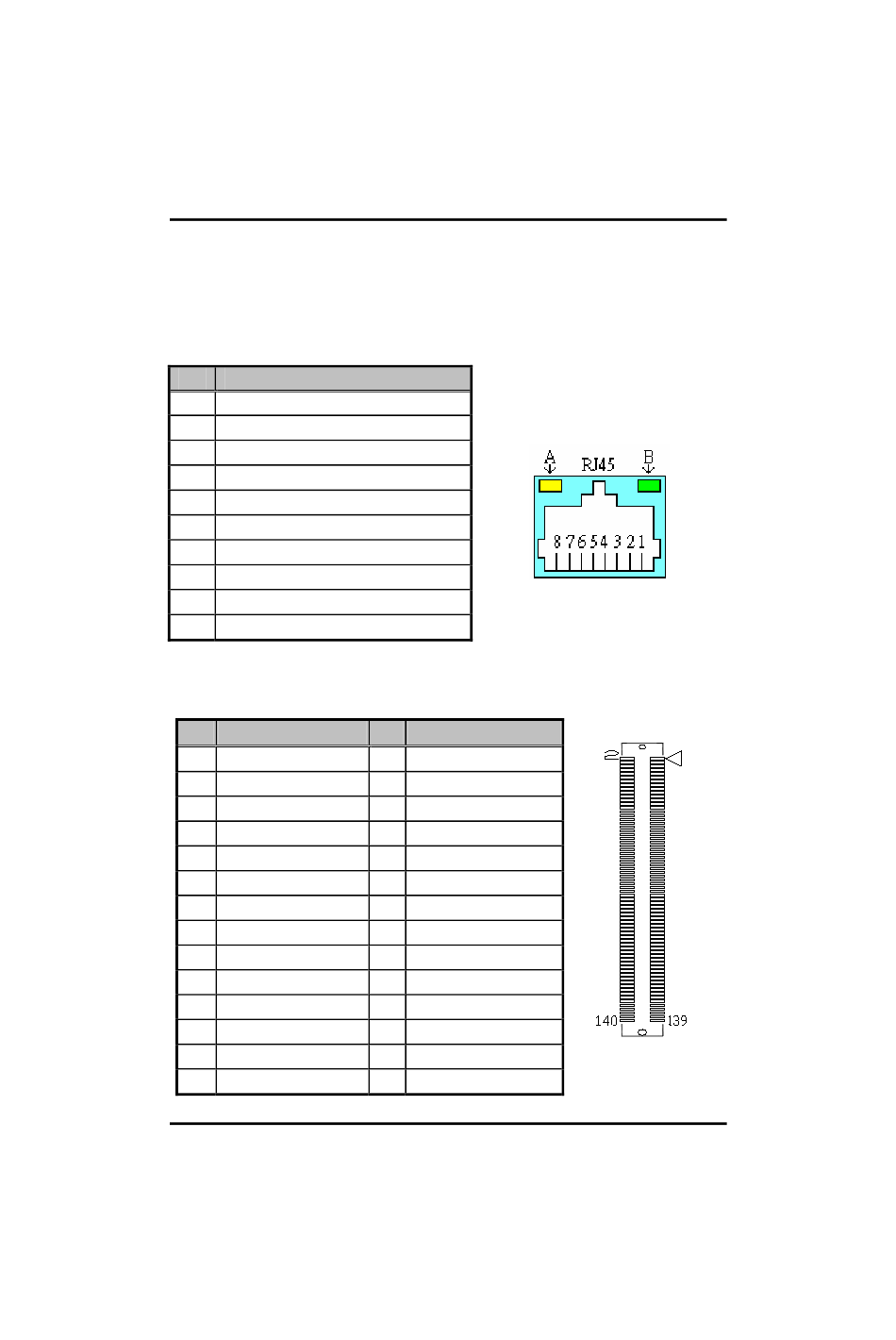

2.4.11 Ethernet Connector: LAN1
The RJ-45 connector is used for Ethernet. To connect the board to
100-Base-T or 1000-Base-T hub, just plug one end of the cable into
LAN1 and connect the other end (phone jack) to a 100-Base-T hub or
1000-Base-T hub.
Pin Signal
1 Tx+ (Data transmission positive)
2
Tx- (Data transmission negative)
3
Rx+(Data reception positive)
4 RJ-1(For 100 base T-Only)
5 RJ-1(For 100 base T-Only)
6 Rx- (Data reception negative)
7
RJ-1(For 100 base T-Only)
8
RJ-1(For 100 base T-Only)
A Active LED
B 100/1000 LAN LED
2.4.12 Extension Slot: J1
Pin Signal
1 SDVOC_RED
3 SDVOC_RED#
5 GND
7 SDVOC_BLUE
9 SDVOC_BLUE#
11 GND
13 SDVO_FLDSTALL
15 SDVO_FLDSTALL#
17 GND
19 BKLCTL2
21 PCIE_WAKE#
23 GND
25 ICH_PE_TXP2
27 ICH_PE_TXN2
Jumpers and Connectors
Pin Signal
2 SDVOC_INT
4 SDVOC_INT#
6 GND
8 SDVOC_GREEN
10 SDVOC_GREEN#
12 GND
14 SDVOC_CLK
16 SDVOC_CLK#
18 GND
20 SDVO_CTRLCLK
22 SDVO_CTRLDATA
24 GND
26 ICH_PE_RXP2
28 ICH_PE_RXN2
LAN1
J1
17
