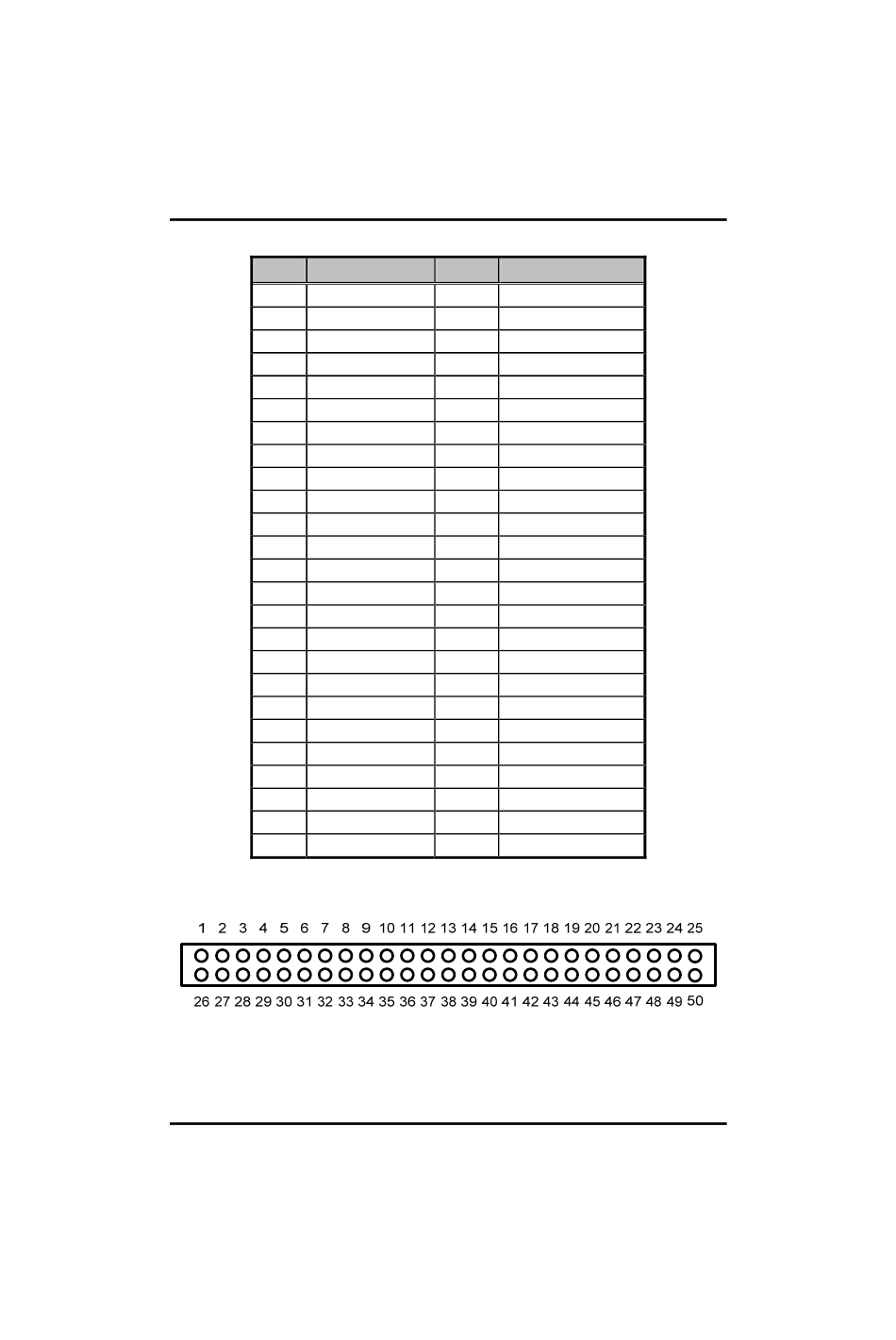

CFS1: Compact Flash Socket Pin Assignment
Pin
1 GND
2 Data 3
3 Data 4
4 Data 5
5 Data 6
6 Data 7
7 CS0#
8 Address 10
9 ATASEL
10 Address 9
11 Address 8
12 Address 7
13 VCC
14 Address 6
15 Address 5
16 Address 4
17 Address 3
18 Address 2
19 Address 1
20 Address 0
21 Data 0
22 Data 1
23 Data 2
24 IOCS16#
25 CD2#
CFS1: Compact Flash Socket
22
Signal Pin
26 CD1-
27 Data 11
28 Data 12
29 Data 13
30 Data 14
31 Data 15
32 CS1#
33 VS1#
34 IORD#
35 IOWR#
36 WE#
37 INTR
38 VCC
39 CSEL#
40 VS2#
41 RESET#
42 IORDY#
43 DMAREQ
44 DMAACK-
45 DASP#
46 PDIAG#
47 Data 8
48 Data 9
49 Data 10
50 GND
