SBC81206 Series Quick Installation Guide
I.
Checklist

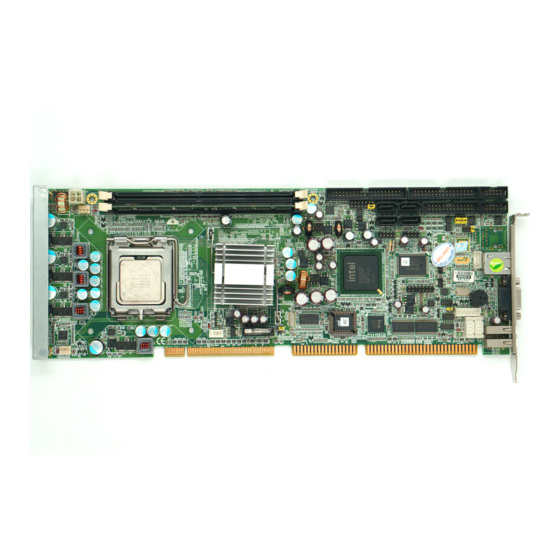

SBC81206 Socket 775 All-In-One
Board x 1
Quick Installation Guide x 1
Product Information CD-ROM x 1
Note: Please contact your local vendors if any damaged or missing items.
DO NOT apply power to the board if any damaged components.
II.
Jumper Settings
Before applying the power to SBC81206 Series, please make sure
all jumper settings are defaulted as the following table:
Description Function
JP3
COM2 RS-232
(Default)
JP3
RS-422
JP3
RS-485
Normal
CMOS Clear
(Default)
Clear
CMOS
©
Copyright 2008 AXIOMTEK Co., Ltd.
Version A1 December 2008
Printed in Taiwan
94181206010E
COM & Printer Port Cable with
Bracket, Pitch=2.54mm x 1
2-pin Jumper Cap, Pitch=2.0mm x 5
x 1
SATA Cable
Jumper Setting
