SBC84830 Series All-In-One ECX Board User's Manual
The 7-pin inverter connector on the SBC is with Hirose
connector. The matching connector is strongly
recommended to use Hirose DF13-7S-1.25C.

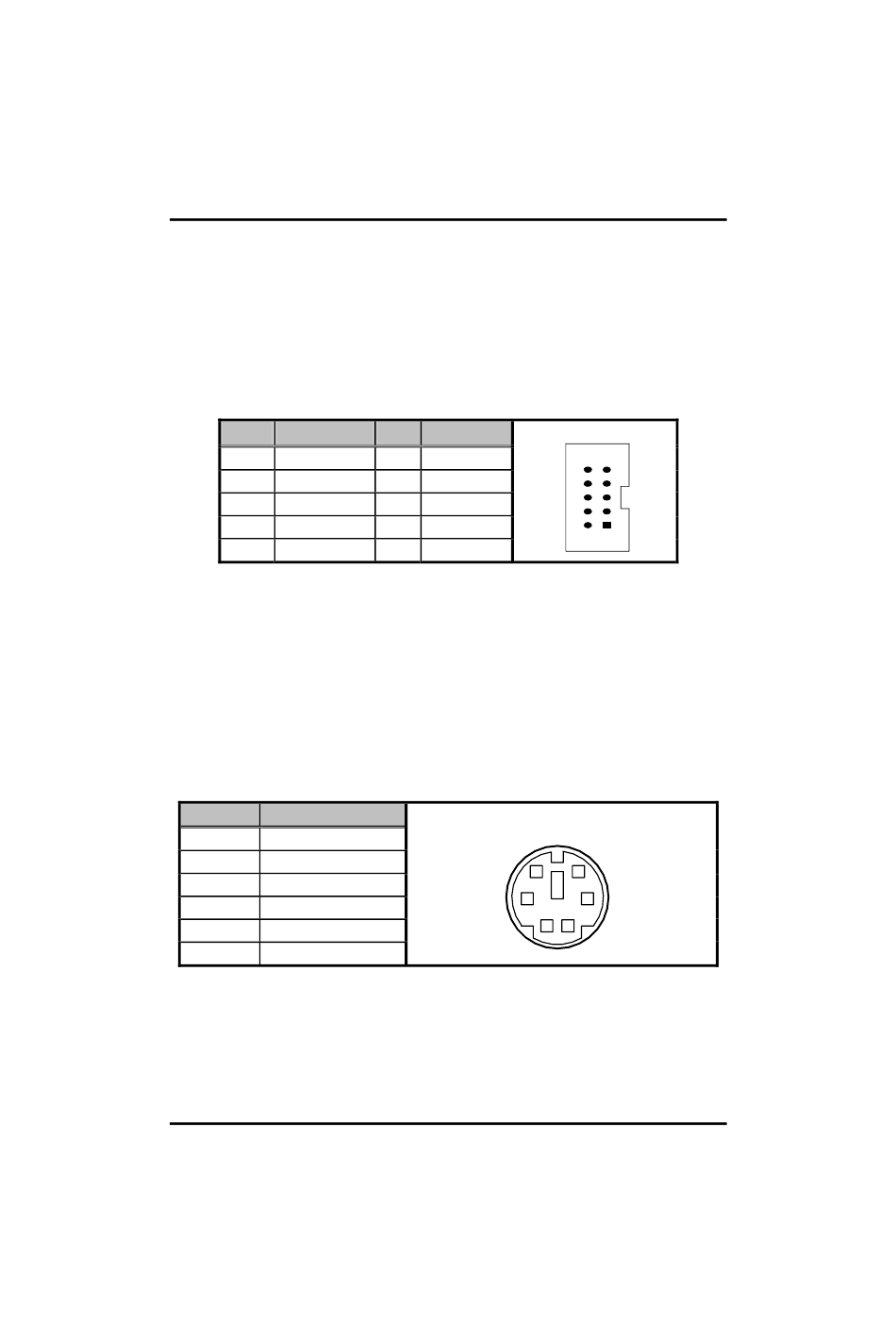

2.4.5 Audio Connector: CN6
The board supports audio interface.CN6 is a 10pin-header connector
commonly used for the audio.
Pin Signal
1 MIC-IN
3 Line In L
5 Line In R
7 Audio Out L
9 Audio Out R
2.4.6 Power Button: CN11
This 2-pin connector connects the ATX power button of the front panel
to the SBC84830 CPU card that allows users to control power on/off
state of the ATX power supply.
2.4.7 Keyboard and PS/2 Mouse Connector: CN12
CN12 is a DIN connector (AC97) for PS/2 Mouse and PS/2 keyboard
connection.
Pin Signal
1 Keyboard Data
2 Mouse Data
3 GND
4 VCC
5 Keyboard Clock
6 Mouse Clock
2.4.8 VGA Connector: CN13
CN13 is a standard 15-pin pin DB15 connector commonly used for the
CRT VGA display. Please refer to the pin assignment next page.
14
Pin Signal
2 GND
4 GND
6 GND
8 GND
10 GND
CN12
Mouse Clock
6
4
VCC
Mouse Data
2
Jumpers and Connectors
CN6
2 1
Keyboard Clock
5
3
GND
Keyboard Data
1
