SBC84830 Series All-In-One ECX Board User's Manual

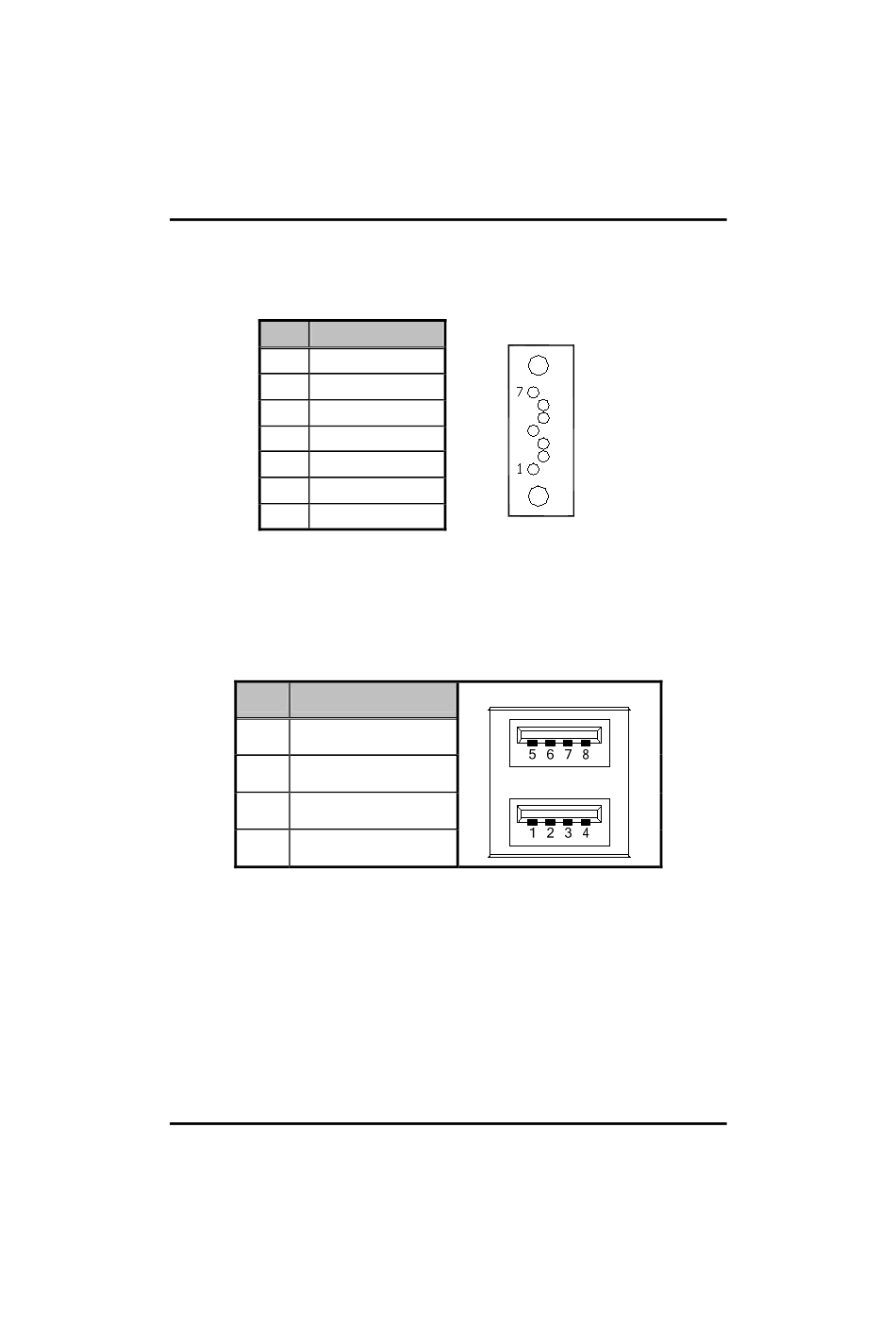

2.4.14 SATA Connectors: SATA1/SATA2
These SATA connectors are for high-speed SATA interface ports and
they can be connected to hard disk devices.
Pin
1
2
3
4
5
6
7
2.4.15 USB Connector: USB2
The Universal Serial Bus (USB) connector on the board is for the
installation of peripherals supporting the USB interface. USB2 is a 12-
pin standard USB connector.
USB0 and USB1
Pin
1,5
2,6
3,7
4,8 USB GND
2.4.16 USB Connector: USB1
The Universal Serial Bus (USB) connector on the board is for the
installation of peripherals supporting the USB interface. USB1 is a 12-
pin standard USB connector. Please refer to the USB1 pin assignment
next page.
20
Signal SATA1/SATA2
GND
STXP
STXN
GND
SRXN
SRXP
GND
Signal
USB Vcc
USB -
USB +
USB2
Jumpers and Connectors
