SBC84830 Series All-In-One ECX Board User's Manual

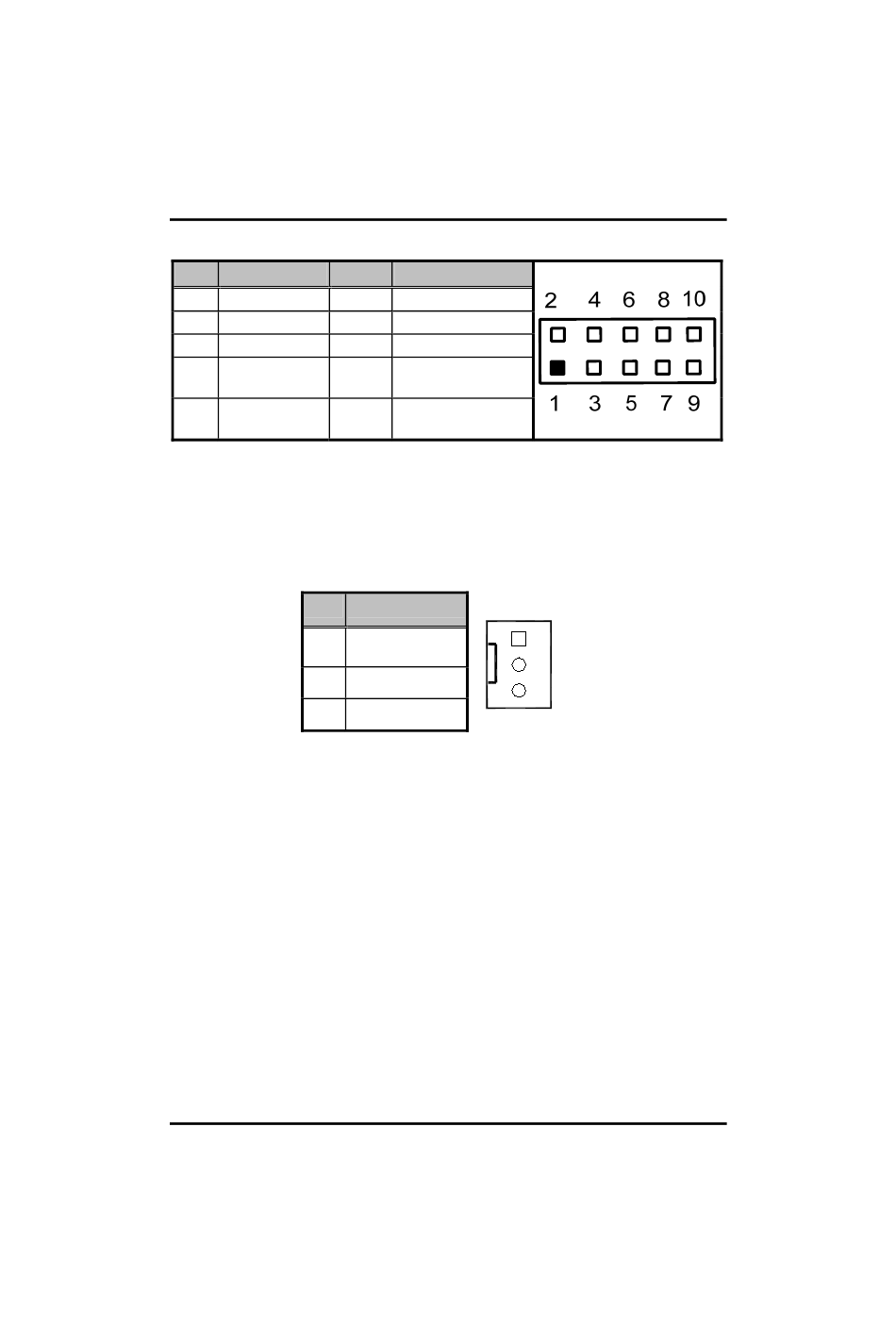

USB2 and USB3
Pin Signal
1 VCC
3 D2-
5 D2+
7 Ground
(GND)
9 Ground
(GND)
2.4.17 CPU Fan Connector: FAN1
A CPU fan is always needed for cooling CPU heat. The CPU fan
connector FAN1 provides power to the CPU fan. You can connect the
CPU cooling fan cable to FAN1.
Pin
1
2
3
2.4.18 Compact Flash Connector: CFS1
The SBC84830 Series is equipped with a CompactFlash disk socket on
the solder side and it supports the IDE2 interface CompactFlash disk
card. The socket itself is specially designed to prevent any incorrect
installation of the CompactFlash disk card.
When installing or removing the CompactFlash disk card, make sure
the system power is off.
The CompactFlash disk card is defaulted as the E: or F: disk drive in
the PC system.
Jumpers and Connectors
Pin Signal
2 VCC
4 D3-
6 D3+
8 Ground (GND)
10 Ground (GND)
Signal FAN1
GND
+12V
Sensor
USB1
1
3
21
