SBC84830 Series All-In-One ECX Board User's Manual
Pin
99 GND
103 +3.3V
105 PCI_SERR#
107 PCI_C/BE1#
109 PCI_AD14
111 GND
113 PCI_AD12
115 PCI_AD10
117 GND
119 PCI_AD8
121 PCI_AD7
123 +3.3V
125 PCI_AD5
127 PCI_AD3
129 GND
131 PCI_AD1
133 +5V
135 +5V
137 IO_PME#
139 +3.3V_SBY
-- End of Extension Slot J1 Table --

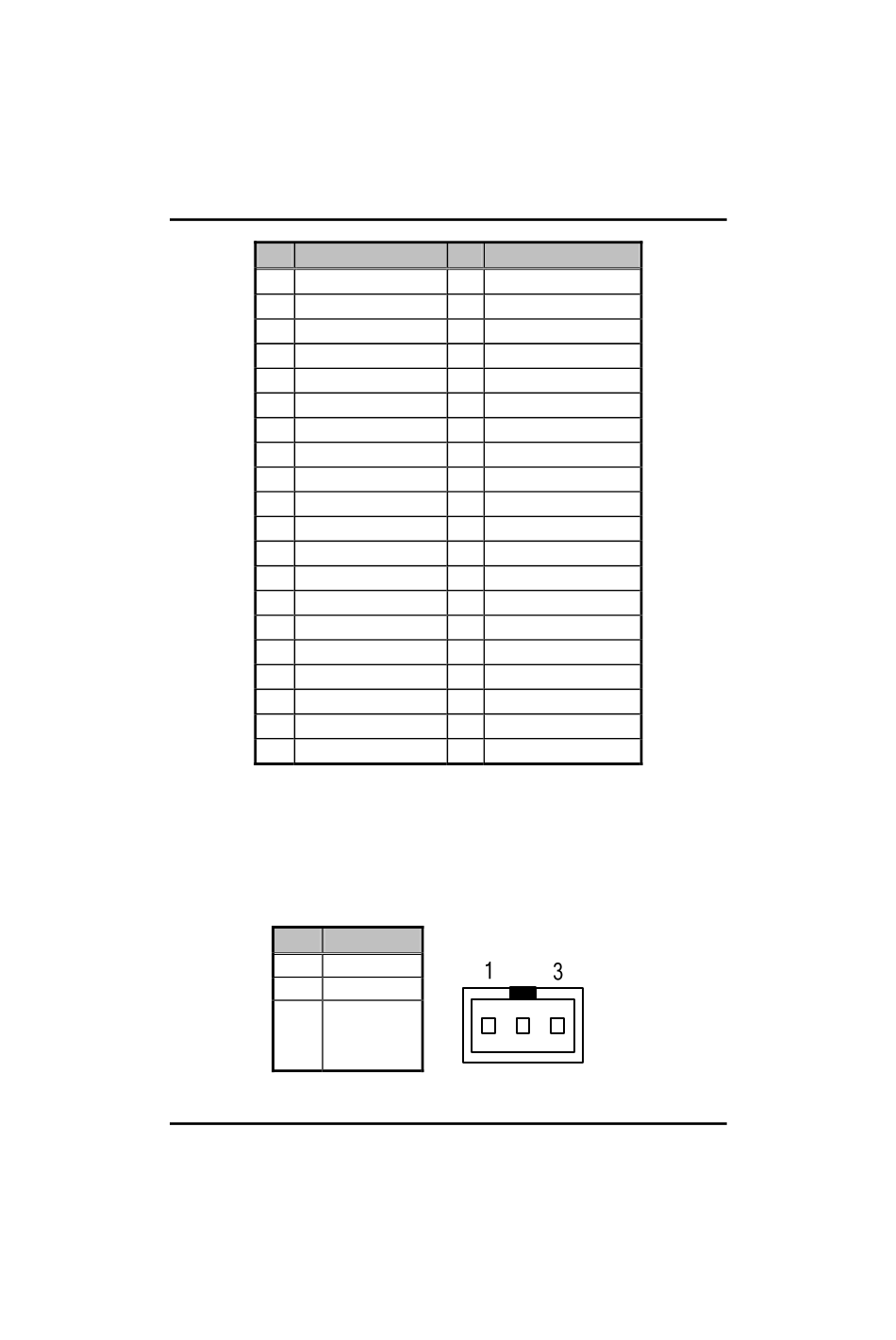

2.4.13 SM BUS Connector: JP3
This SM Bus connector is for users to connect System Management
Bus (SMBus) interface.
Pin
1 CLOCK
2 DATA
3 GND
Jumpers and Connectors
Signal Pin
100 +3.3V
104 PCI_TRDY#
106 PCI_STOP#
108 +3.3V
110 PCI_PAR
112 PCI_AD15
114 PCI_AD13
116 PCI_AD11
118 GND
120 PCI_AD9
122 PCI_C/BE0#
124 +3.3V
126 PCI_AD6
128 PCI_AD4
130 PCI_AD2
132 PCI_AD0
134 +5V
136 +5V
138 LAN_WAKE2
140 +3.3V_SBY
JP3
Signal
Signal
