1.7 Typical Coverage

With one horn attached to Paging Amplifier under standard 802.3af PoE power, coverage is up to
5,000 square feet. With two horns attached to the Paging Amplifier under 802.3at PoE (high power),
coverage is up to 10,000 square feet depending on ambient background noise levels.

1.7.1 Intelligibility Outdoor Field Test

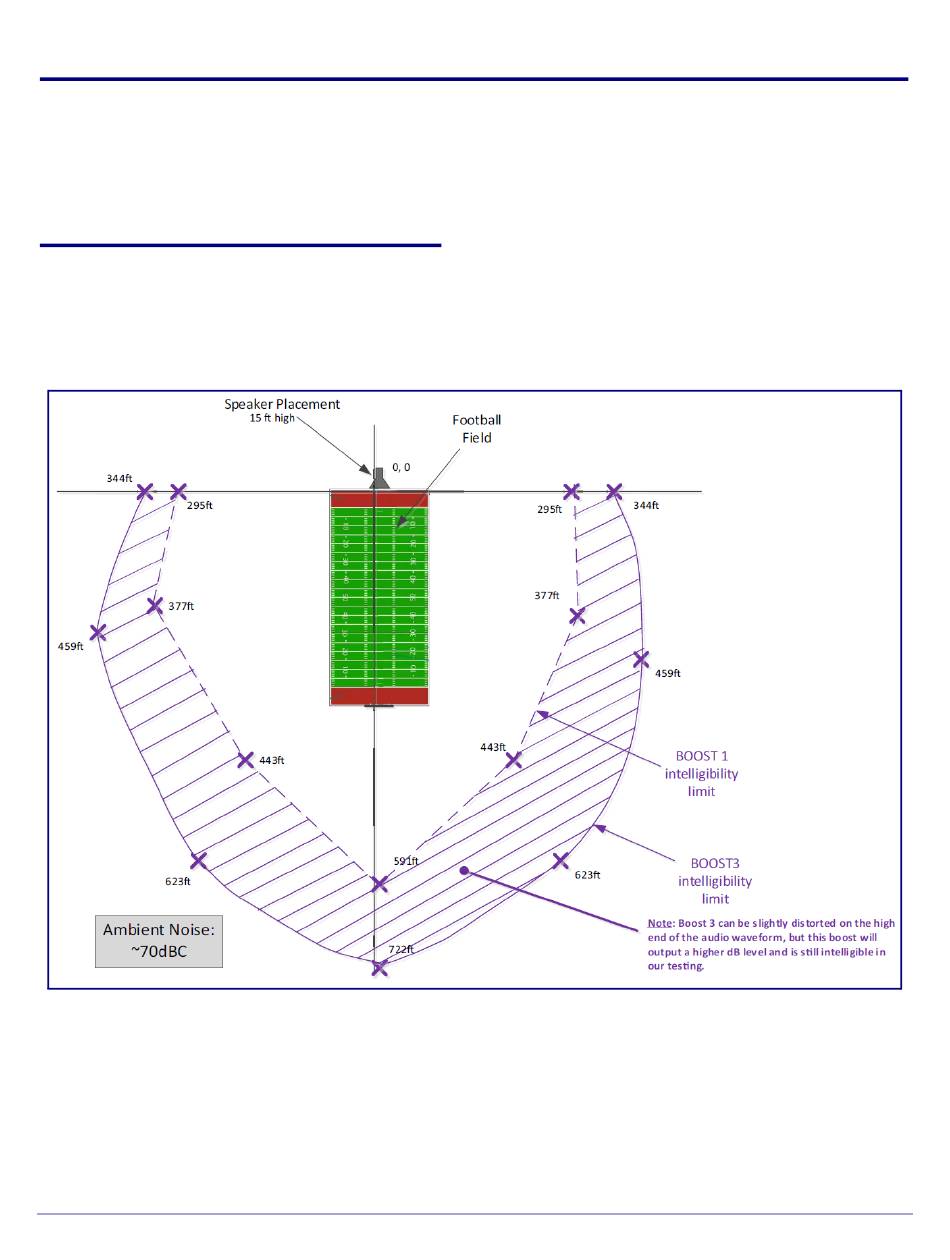

The figure below shows the intelligibility outdoor field test of the device when it is used with the
011471 IP66 Outdoor Analog Horn.
Operations Guide
Figure 1-3. Intelligibility Outdoor Field Test
