2.2.11 Connecting the SIP Loudspeaker Amplifier (AC-Powered)

2.2.11.1 Using the Amplified Outputs
High Power Mode The following figure illustrate how to connect the SIP Loudspeaker Amplifier (AC-Powered) and use
(One Speaker)
the amplified outputs in high power mode to one speaker or horn.

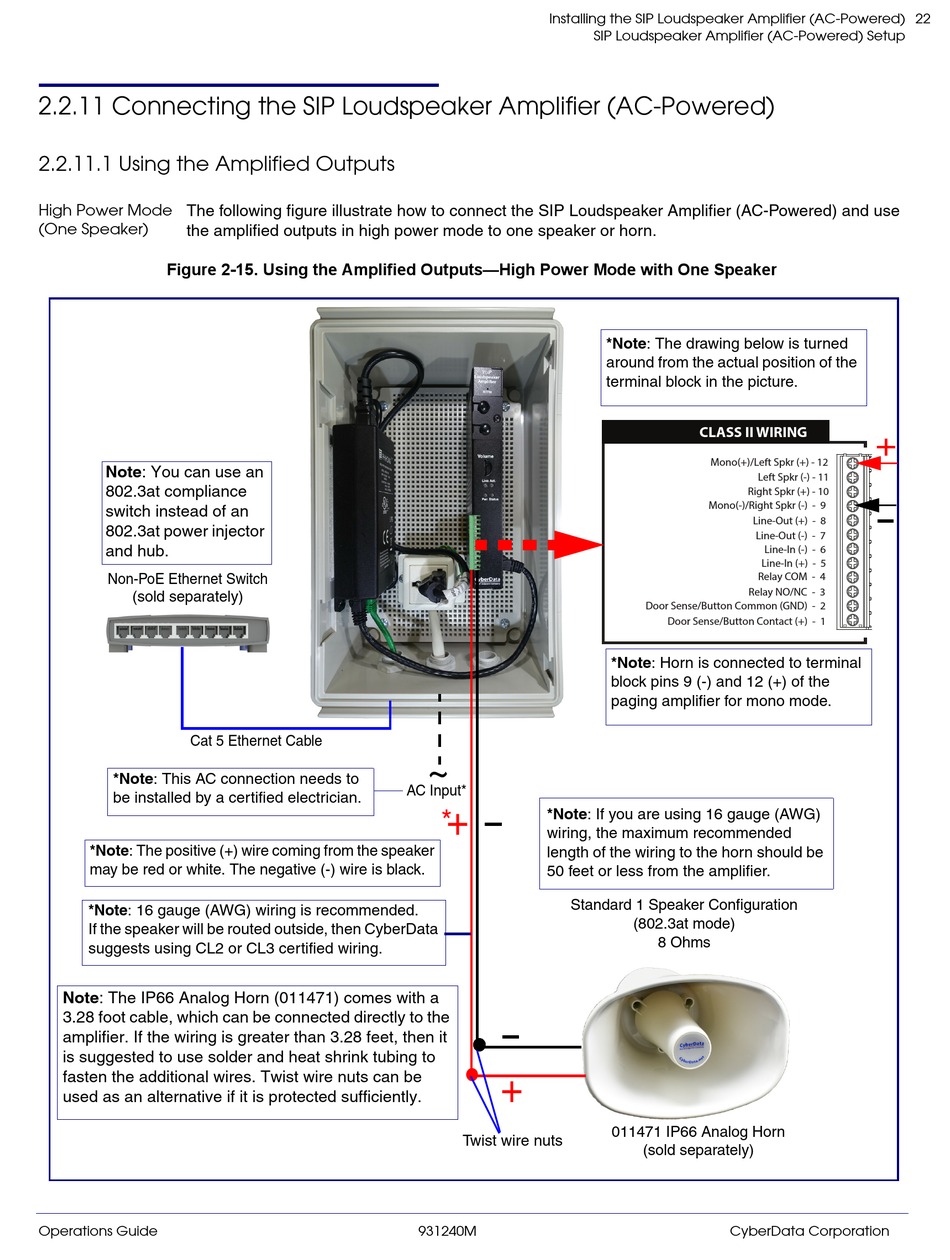

Figure 2-15. Using the Amplified Outputs—High Power Mode with One Speaker
Note: You can use an
802.3at compliance
switch instead of an
802.3at power injector
and hub.
Non-PoE Ethernet Switch
(sold separately)
Cat 5 Ethernet Cable
*Note: This AC connection needs to
be installed by a certified electrician.
*Note: The positive (+) wire coming from the speaker
may be red or white. The negative (-) wire is black.
*Note: 16 gauge (AWG) wiring is recommended. 
If the speaker will be routed outside, then CyberData
suggests using CL2 or CL3 certified wiring.
Note: The IP66 Analog Horn (011471) comes with a
3.28 foot cable, which can be connected directly to the
amplifier. If the wiring is greater than 3.28 feet, then it
is suggested to use solder and heat shrink tubing to
fasten the additional wires. Twist wire nuts can be
used as an alternative if it is protected sufficiently.
Operations Guide
Installing the SIP Loudspeaker Amplifier (AC-Powered)
~
AC Input*
+
*Note: If you are using 16 gauge (AWG)
*
wiring, the maximum recommended
length of the wiring to the horn should be
50 feet or less from the amplifier.
Standard 1 Speaker Configuration
+
Twist wire nuts
931240M
SIP Loudspeaker Amplifier (AC-Powered) Setup
*Note: The drawing below is turned
around from the actual position of the
terminal block in the picture.
CLASS II WIRING
Mono(+)/Left Spkr (+) - 12
Left Spkr (-) - 11
Right Spkr (+) - 10
Mono(-)/Right Spkr (-) - 9
Line-Out (+) - 8
Line-Out (-) - 7
Line-In (-) - 6
Line-In (+) - 5
Relay COM - 4
Relay NO/NC - 3
Door Sense/Button Common (GND) - 2
Door Sense/Button Contact (+) - 1
*Note: Horn is connected to terminal
block pins 9 (-) and 12 (+) of the
paging amplifier for mono mode.
(802.3at mode)
8 Ohms
011471 IP66 Analog Horn
(sold separately)
